ICON Vehicle Dynamics Coilover Set - 211015C

19-23 RAM 1500 2-3" 2.5 VS CDCV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 211015C

Old price: $2,336.83

Price: $2,225.55

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

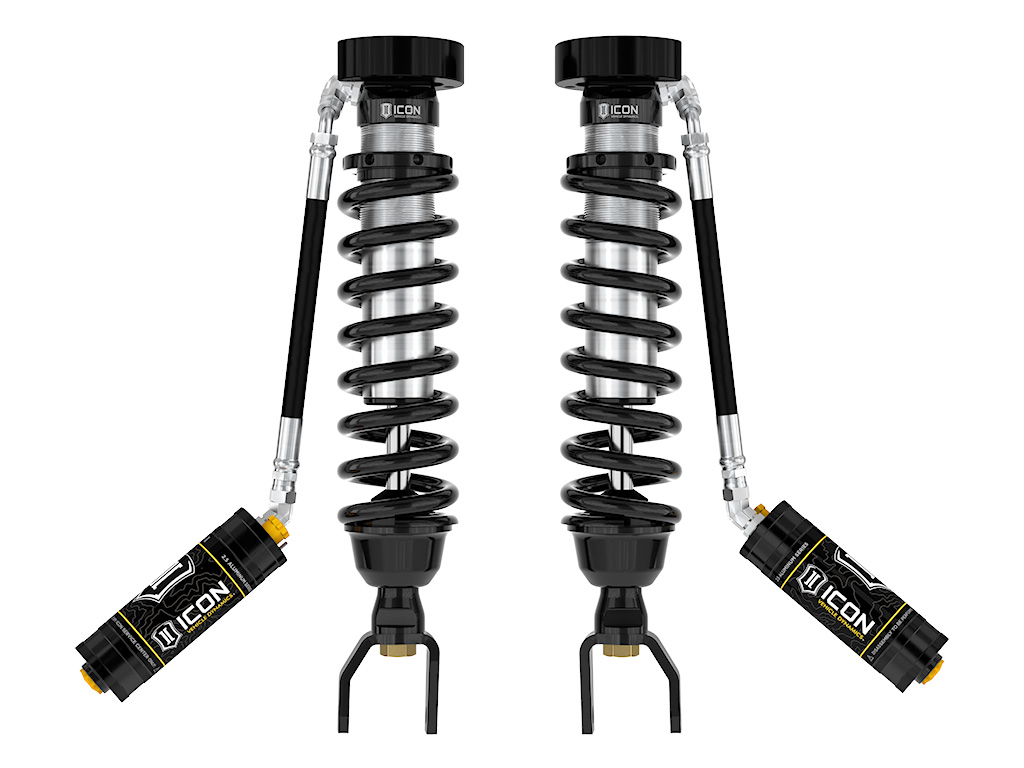

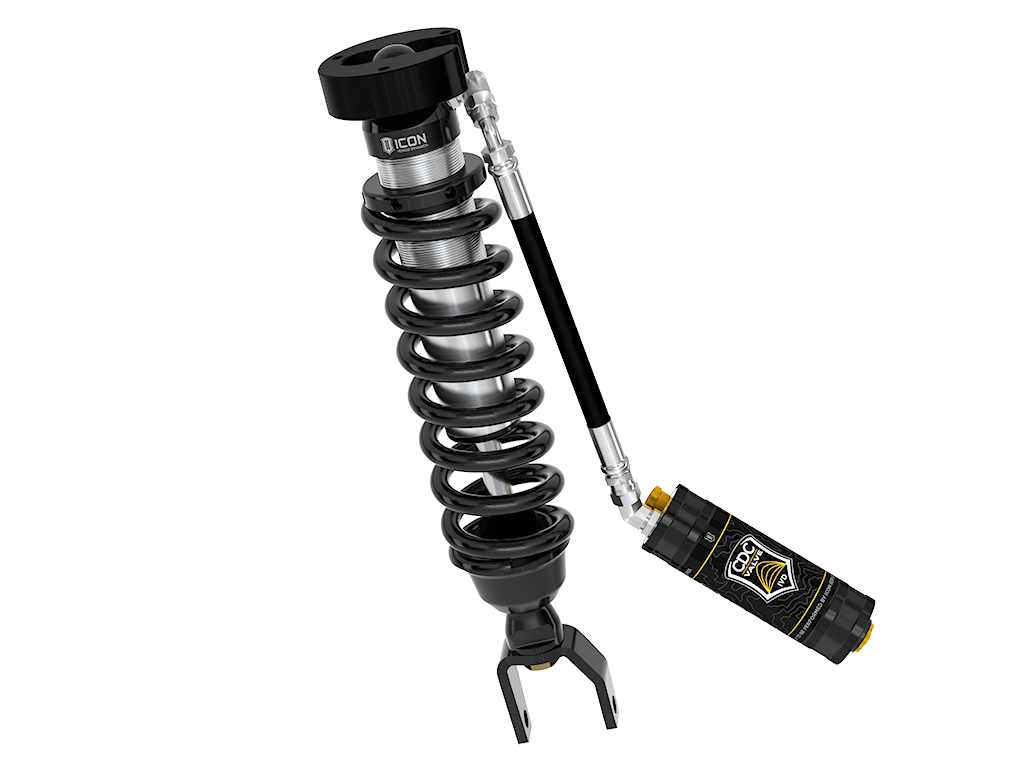

ICON Vehicle Dynamics V.S. 2.5 Series coilover shocks are an incredible upgrade for the front end of 2019-2023 Ram 1500 trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2-3” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components and application specific length to maximize wheel travel provide improved damping ability and outstanding ride characteristics across varying types of terrain. These remote reservoir coilovers will maintain lower operating temperatures and offer more consistent operation during extended or aggressive off-road use compared to internal reservoir versions. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 settings of compression damping adjustment, from soft to hard. When paired with ICON 2.0 Aluminum Series or 2.5 Aluminum Series rear shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ram 1500 truck.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 218560DJ - 19-23 RAM 1500 BILLET UCA DJ KIT, 217716CP - 19-23 RAM 1500 0-3" REAR 2.5 VS PB CDCV PAIR, 218550DJ - 09-23 RAM 1500 TUBULAR UCA DJ KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Cylinder Finish	Cadmium Plated
Damping Adjustment Type	Manual
Damping Type	Oil
Cylinder Material	Steel
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	18.04
Cylinder Color	Silver
Dust Shield Included	No
Extended Length	23.77
Front Spring Rate	700
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Clevis
Material	Steel, Aluminum
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	2
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Clevis Holes
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.73
Country of Origin	US
Condition	New
