ICON Vehicle Dynamics Coilover Set - 48700E

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

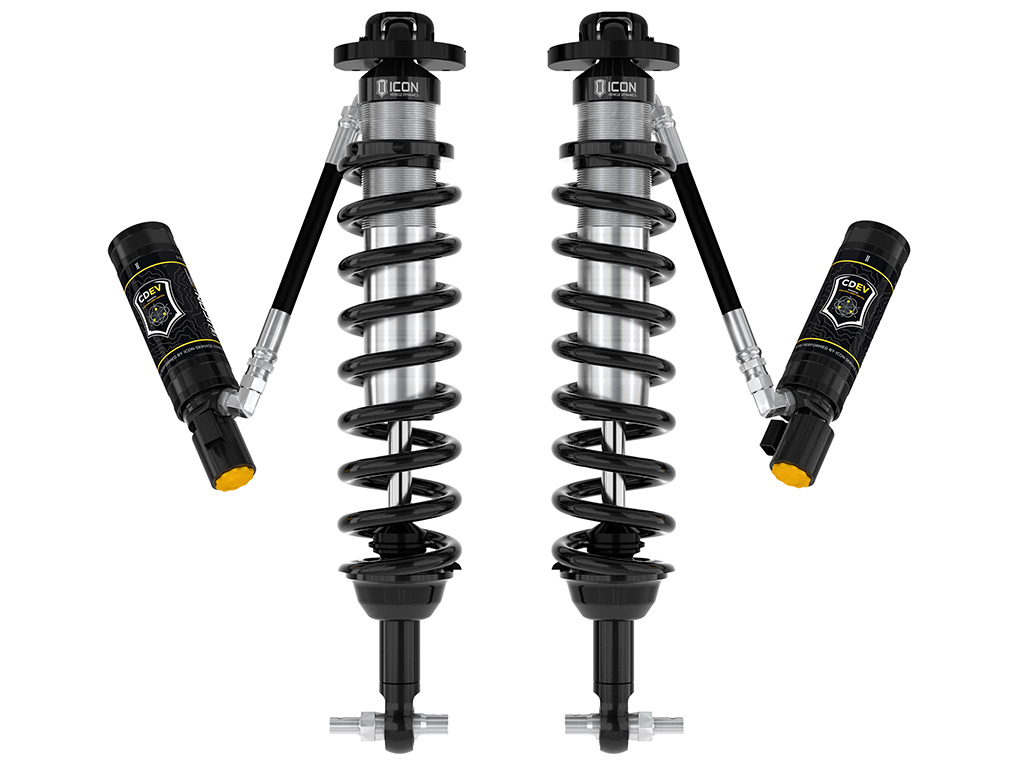

21-23 BRONCO FRONT 2.5 VS RR CDEV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 48700E
Old price: $3,036.80
$2,892.19
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

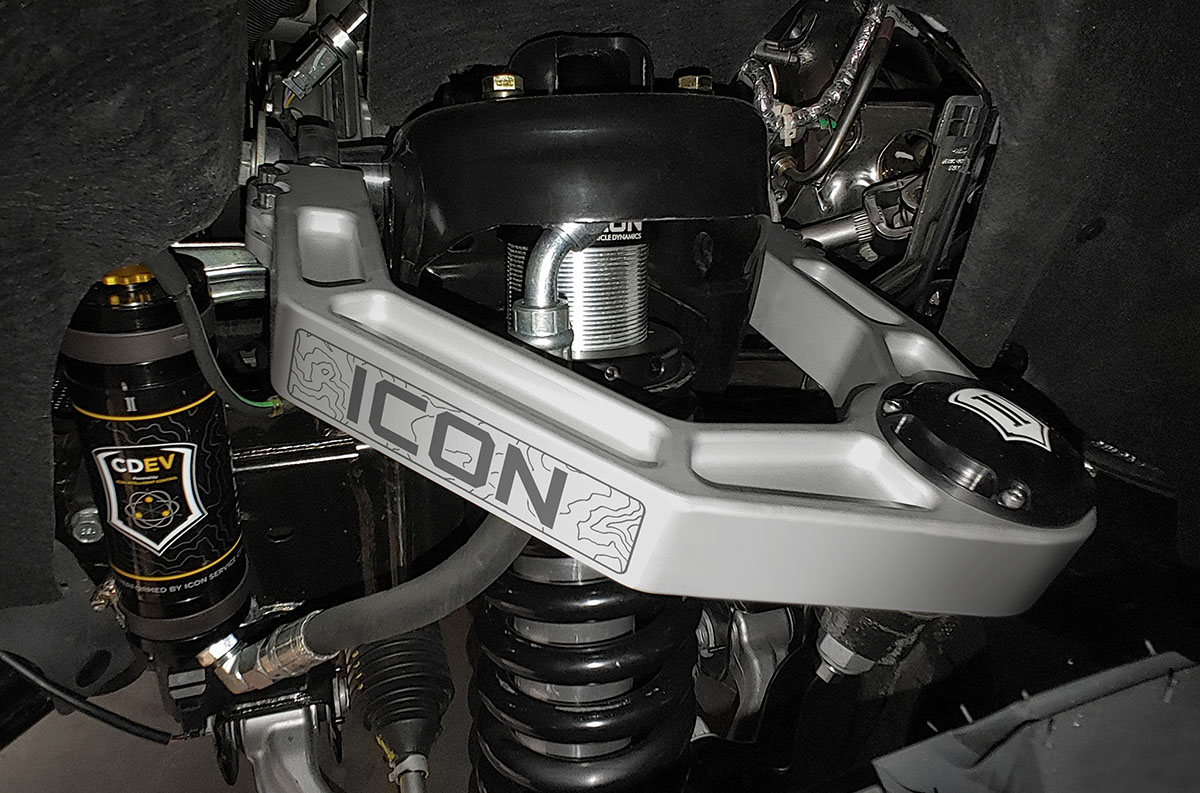

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV are the ideal upgrade for the front end of the 2021-2023 Ford Bronco. These adjustable coilovers allow up to 3-4” of lift height adjustability on Broncos without the Sasquatch package or 2-3” of lift over stock Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Electronic Valves (CDEV) are included to allow for lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the CDEV at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input. ICON 2.5 Series rear coilovers with CDEV and matching IIC module are required for installation but vehicle control will be actively balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

Note: OEM Wheels & Tires Fitment (With Sasquatch Package): Yes

Products specifications

Attribute name Attribute value
AAP_UDA_4 55
AAP_UDA_12 EA
AAP_UDA_22 1
Active or Passive Suspension Active
Cylinder Finish Cadmium Plated
Damping Adjustment Type Electronic
Damping Type Oil
Cylinder Material Steel
Add-On Part 48710E - 21-23 BRONCO REAR 2.5 VS RR CDEV COILOVER KIT, 43501 - 21-23 BRONCO IIC INSTALL KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 48400DJ - 21-23 BRONCO TUBULAR UCA DJ PRO KIT, 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL, 198001 - BILLET SPANNER WRENCH KIT, 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT, 48500DJ - 21-23 BRONCO BILLET UCA DJ PRO KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 45212 - 21-23 BRONCO XD TIE ROD KIT
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 18.14
Cylinder Color Silver
Dust Shield Included No
Extended Length 24.53
Front Spring Rate 500
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Aluminum, Steel
Maximum Lift 4
Maximum Ride Height Raising Distance 4
Minimum Lift 2
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires (With Sasquatch Package): 35" x 12.50" (37" tires require coilover bump stop spacers along with minor trimming), (Without Sasquatch Package): 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Recommended Aftermarket Wheels (With Sasquatch Package) ICON Alloys - 17x8.5" w/ 4.75" Backspace / 0mm Offset, (Without Sasquatch Package): ICON Alloys - 18x9" w/ 6.00" Backspace / 25mm Offset, (Without Sasquatch Package) ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, (With Sasquatch Package): ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset, (With Sasquatch Package): ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 6.39
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
🚗 Compatible with
3 vehicles are compatible with this product · 2021–2023
