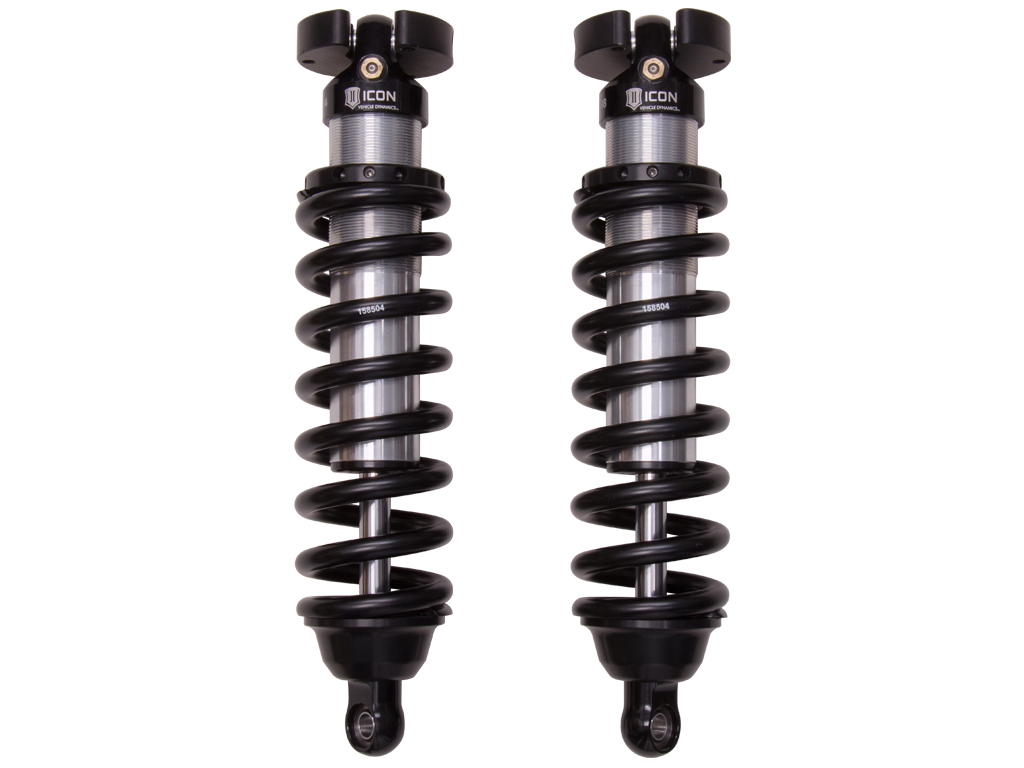

ICON Vehicle Dynamics Coilover Set - 58611-CB

Name: ICON Vehicle Dynamics Coilover Set - 58611-CB
SKU: 58611-CB
Price: 1677.45 USD
Availability: OutOfStock

96-04 TACOMA 2.5 VS IR COILOVER KIT W PROCOMP 6"

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58611-CB

Old price: $1,761.32

Price: $1,677.45

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

1996-2004 TACOMA 2.5 VS INTERNAL RESERVOIR COILOVER KIT W PROCOMP 6" LIFT

Note: Coilover Length Optimized for Use with ProComp 6" Lift Kits

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	21.62
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	26.27
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Ride Height Raising Distance	3
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL, 252010 - 2.5 IFP REBUILD KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 252004 - ECONOMY NEEDLE CHARGING TOOL, 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	4.67
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
