Picture of ICON Vehicle Dynamics Coilover Set - 58645

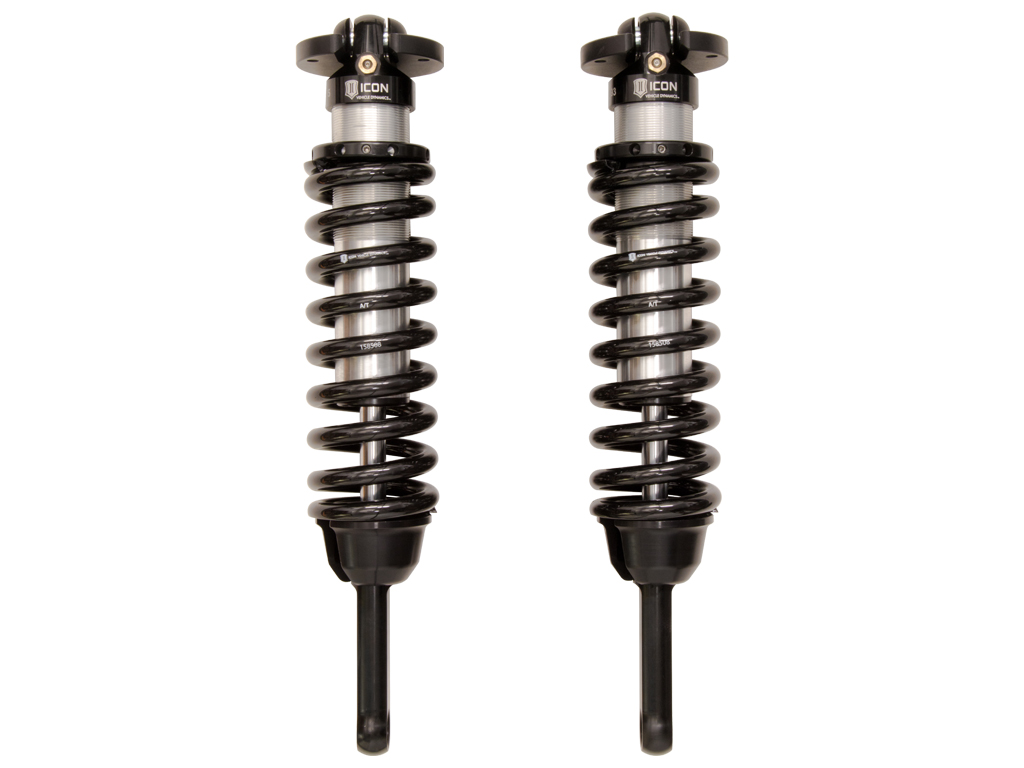

ICON Vehicle Dynamics Coilover Set - 58645

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL 2.5 VS IR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58645
Old price: $1,594.27
$1,518.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Add-On Part 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 17.42
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Extended Length 22.57
Front Spring Rate 650
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum
Maximum Lift 3.5
Maximum Ride Height Raising Distance 3.5
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir No
Reservoir Style Internal
Self-Leveling No
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252010 - 2.5 IFP REBUILD KIT, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 252004 - ECONOMY NEEDLE CHARGING TOOL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 611019 - COILOVER HARDWARE KIT PAIR, 252001 - 2.5 FIXED SPANNER WRENCH, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.16
Upper Mount Type Mounting Plate
Valving Type Digressive
Assembled Yes
Body Diameter 2.5
Country of Origin US
Condition New
🚗 Compatible with
17 vehicles are compatible with this product · 2003–2009
