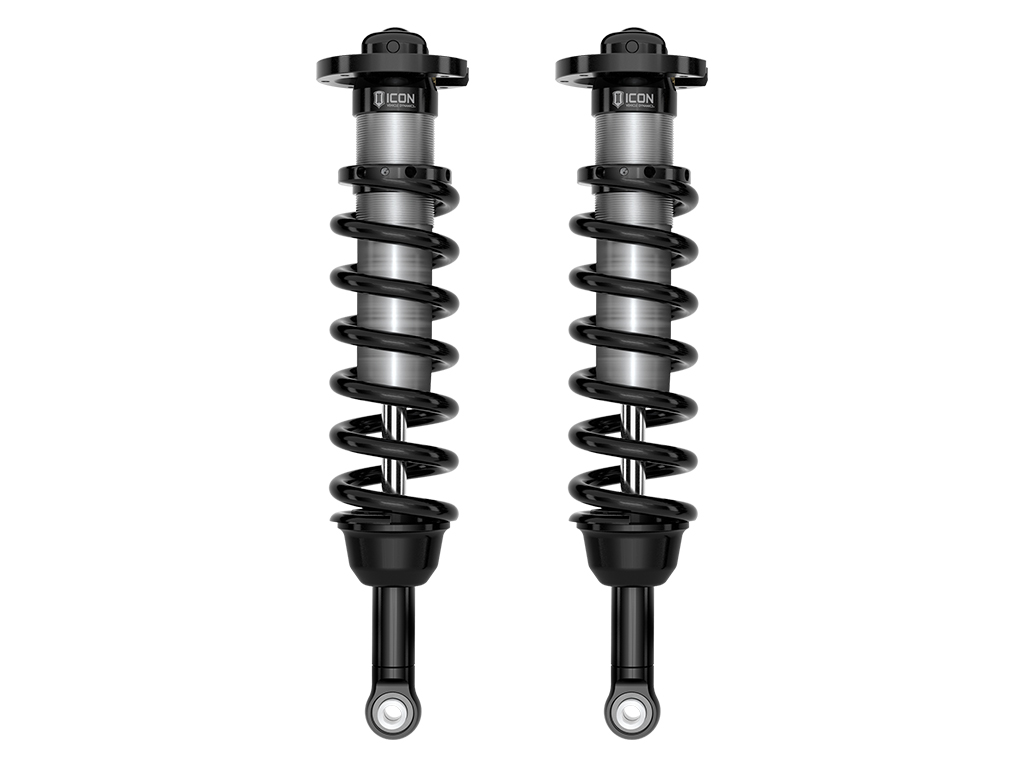

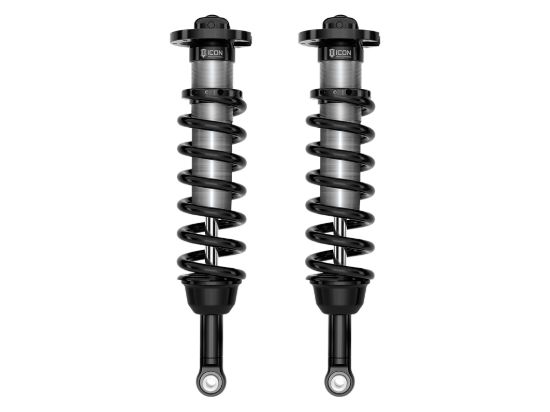

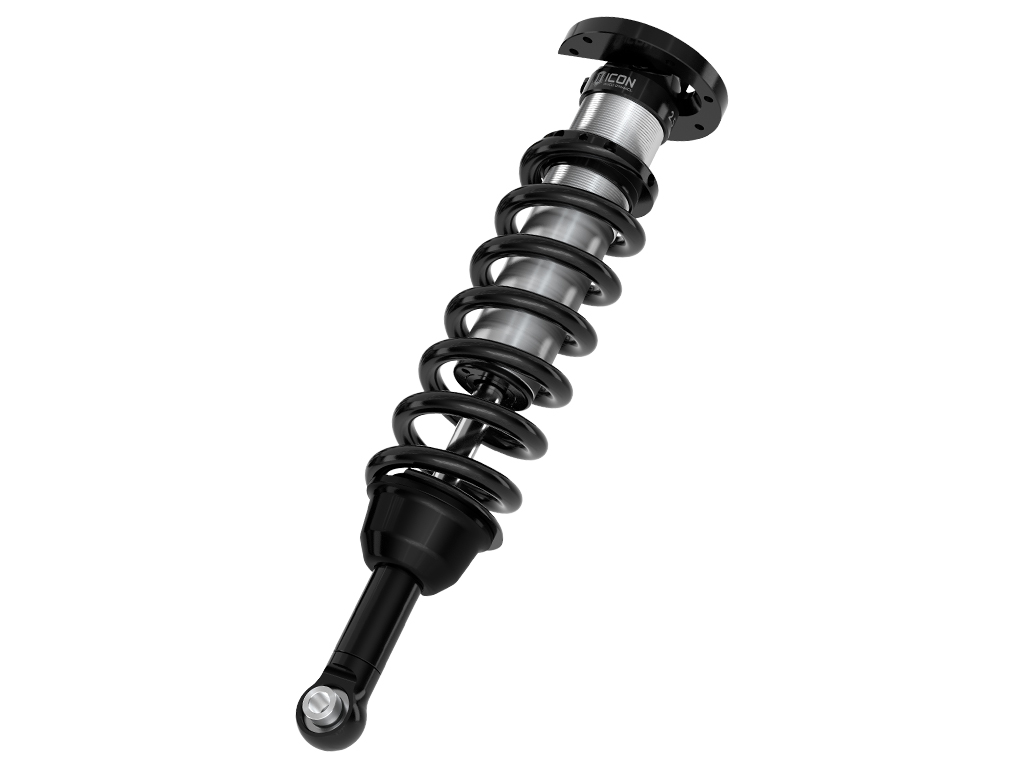

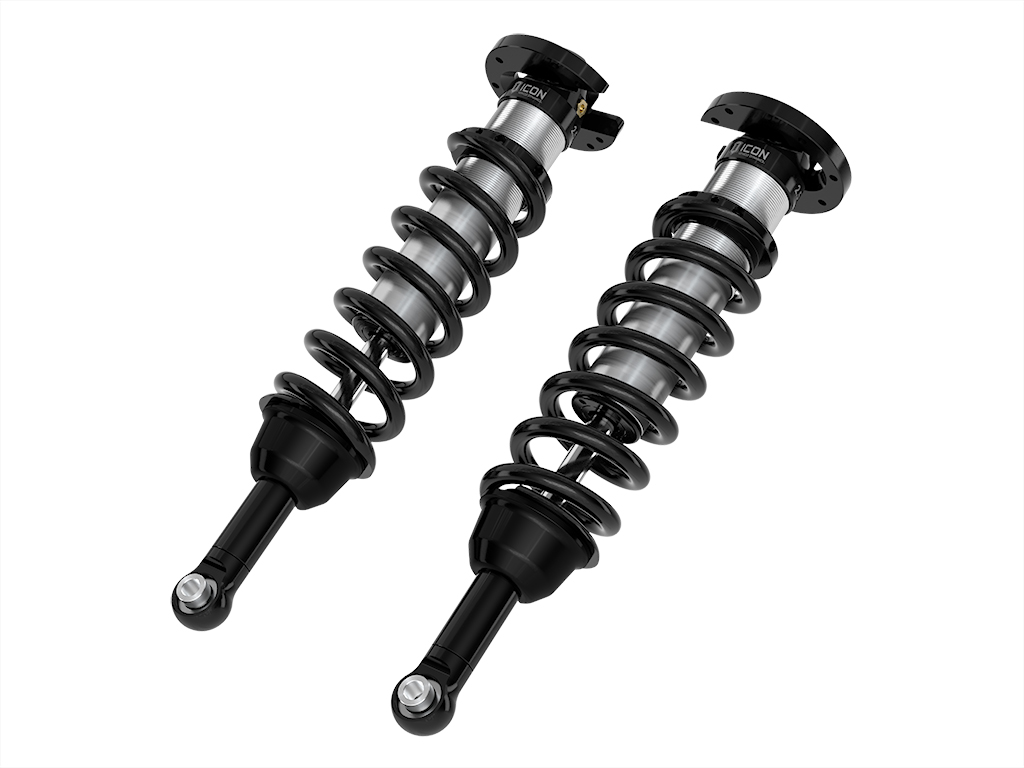

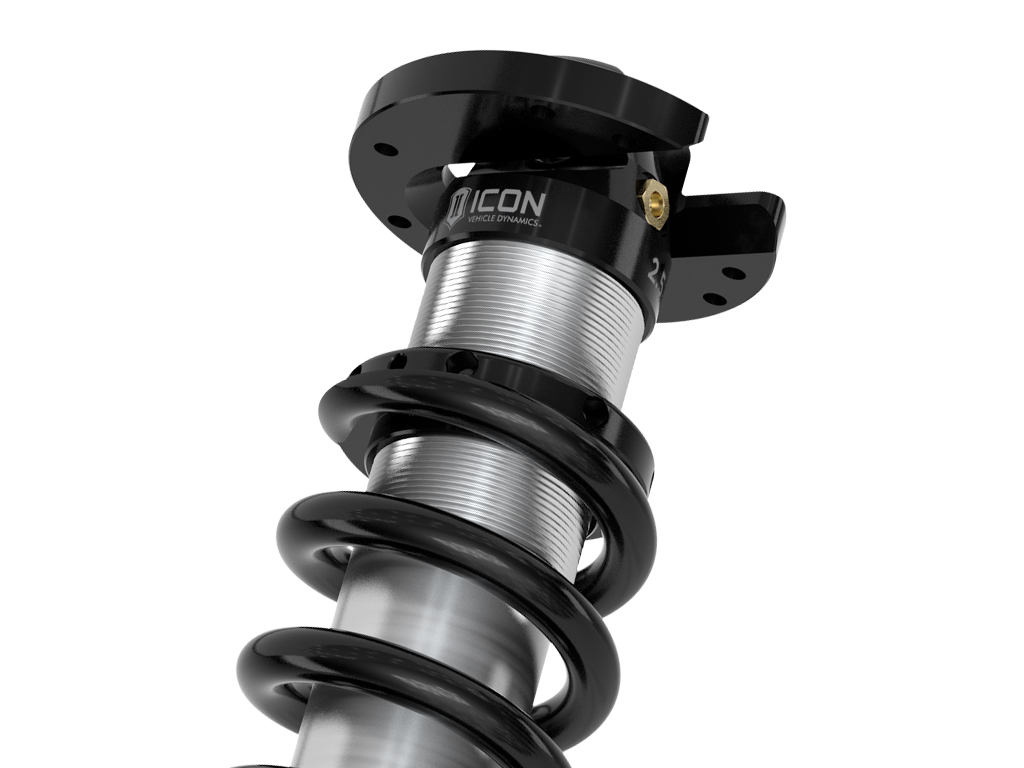

ICON Vehicle Dynamics Coilover Set - 58680

24-25 TACOMA 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58680

Old price: $1,594.27

Price: $1,518.35

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Note: OEM Wheels & Tires Fitment: Yes

Watch product video

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
California Prop 65 Warning	Yes
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT, 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT, 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT
Adjustable Compression	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Internal Construction Type	Single Tube
Material	Steel, Aluminum
Maximum Lift	3
Minimum Lift	1.25
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Remote Reservoir	No
Reservoir Style	Internal
Shaft Diameter	0.875
Spring Material	Steel
Spring Rate Type	Linear
Coil-Over Springs Included	Yes
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield	NO
Dust Shield Included	No
Grade Type	Performance
Recommended Aftermarket Wheels	ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset, ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset
Adjustable Damping	No
Adjustable Height	Yes
Body Diameter	2.5
Boot Included	No
Cylinder Color	Silver
Gas Charged	Yes
Lower Mount Type	Eyelet
Self-Leveling	No
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Spring Color	Black
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
