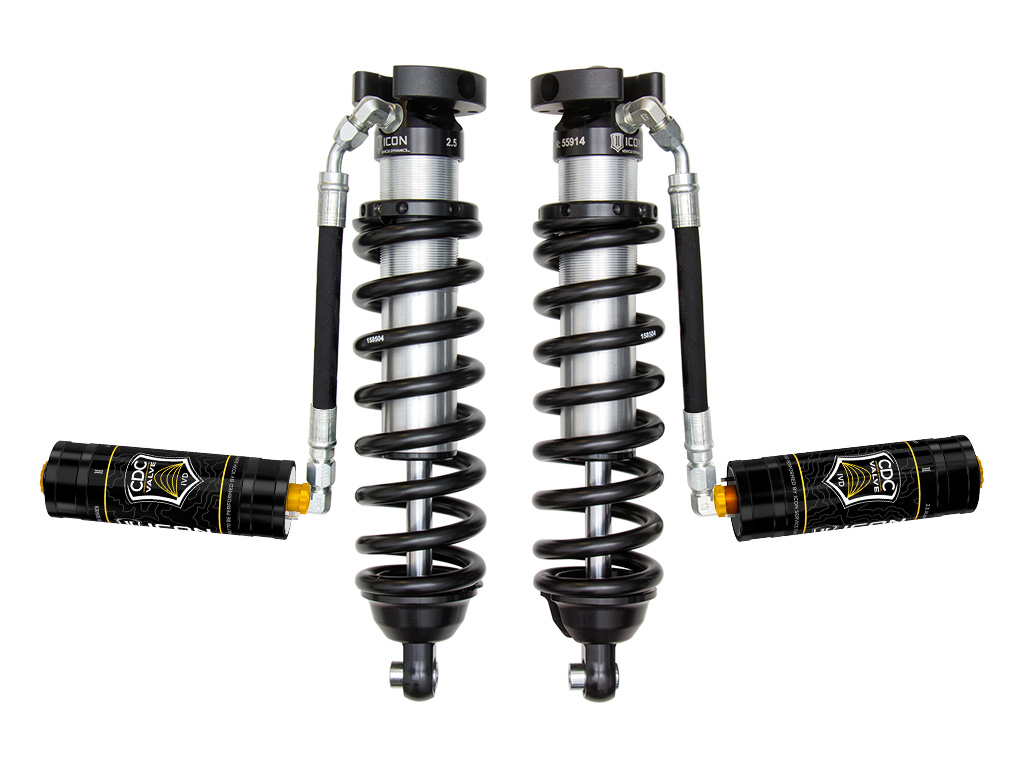

ICON Vehicle Dynamics Coilover Set - 58715C-700

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
96-04 TACOMA EXT TRAVEL 2.5 VS RR CDCV COILOVER KIT 700LB
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58715C-700
Old price: $2,533.39
$2,412.75
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2004 Toyota Tacoma 4WD/Prerunner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON rear 2.0 Aluminum Series rear shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tacoma.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Cylinder Finish Cadmium Plated
Damping Adjustment Type Manual
Damping Type Oil
Active or Passive Suspension Passive
Cylinder Material Steel
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 198001 - BILLET SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 14.5
Cylinder Color Silver
Dust Shield Included No
Extended Length 19.85
Front Spring Rate 700
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 191016 - 7.5" FINNED RESI UPGRADE KIT, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611019 - COILOVER HARDWARE KIT PAIR
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.36
Upper Mount Type Mounting Plate
Valving Type Digressive
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shaft Diameter 0.875
Country of Origin US
Condition New
