ICON Vehicle Dynamics Coilover Set - 58745

Name: ICON Vehicle Dynamics Coilover Set - 58745
SKU: 58745
Price: 1874.55 USD
Availability: OutOfStock

07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL RR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58745

Old price: $1,968.28

Price: $1,874.55

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

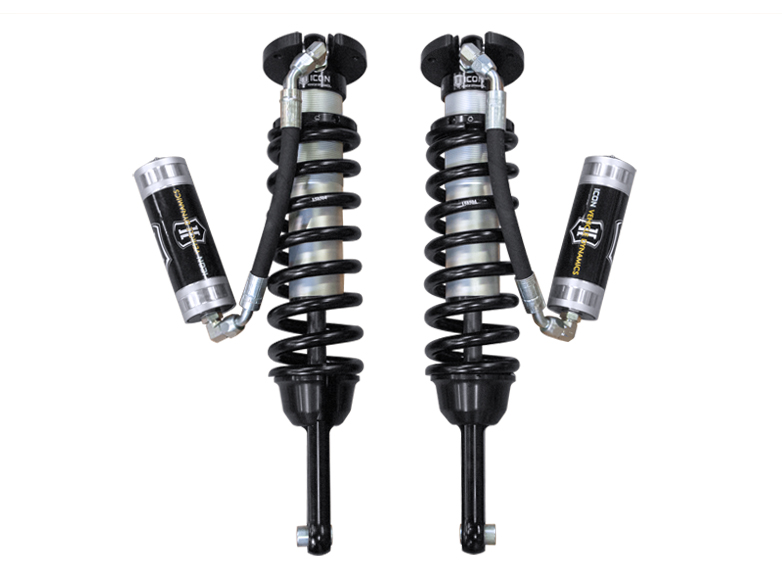

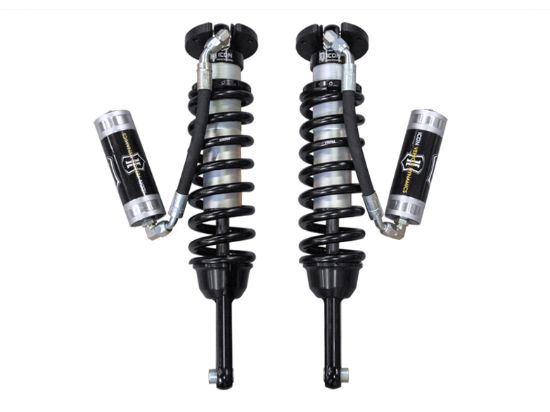

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
AAP_UDA_12	EA
AAP_UDA_22	1
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252001 - 2.5 FIXED SPANNER WRENCH, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate	650
Spring Rate Type	Linear
Travel Length	5.16
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.42
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.57
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Country of Origin	US
Condition	New
