ICON Vehicle Dynamics Coilover Set - 58745C-700

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
07-09 FJ/03-09 4RNR/03-09 GX EXT TRAVEL CDCV COILOVER KIT 700LB
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58745C-700
Old price: $2,544.31
$2,423.15
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

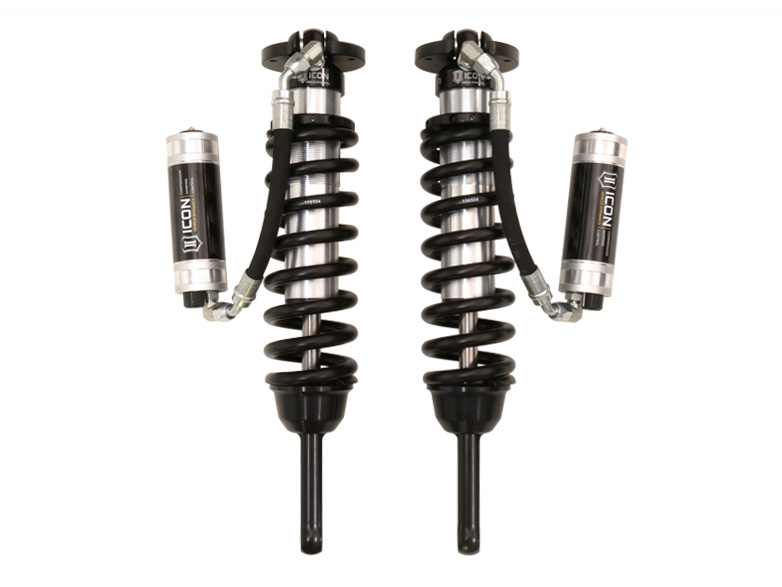

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir coilover shocks are an incredible upgrade for the front end of the Toyota FJ Cruiser, 4Runner, and Lexus GX platforms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3.5” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. Upgraded coil springs are included to better support added weight from accessories such as front bumpers and winches. These extended length versions offer increased wheel travel but also require the installation of aftermarket upper control arms in conjunction with the coilovers.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_4 55
AAP_UDA_12 EA
AAP_UDA_22 1
Active or Passive Suspension Passive
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Dust Shield Included No
Extended Length 22.57
Front Spring Rate 700
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Aluminum
Maximum Lift 3.5
Maximum Ride Height Raising Distance 3.5
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 257301 - 7/8 SHAFT 10.25 OAL, 6.00 TRAVEL, 611019 - COILOVER HARDWARE KIT PAIR, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Damping Type Oil
Damping Adjustment Type Manual
Cylinder Material Steel
Cylinder Finish Cadmium Plated
Cylinder Color Silver
Compressed Length 17.42
Coil-Over Springs Included Yes
Spring Material Steel
Spring Rate 700
Spring Rate Type Linear
Travel Length 5.16
Upper Mount Type Mounting Plate
Valving Type Digressive
Adjustable Compression Yes
Country of Origin US
Condition New
🚗 Compatible with
17 vehicles are compatible with this product · 2003–2009
