ICON Vehicle Dynamics Coilover Set - 58750C

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

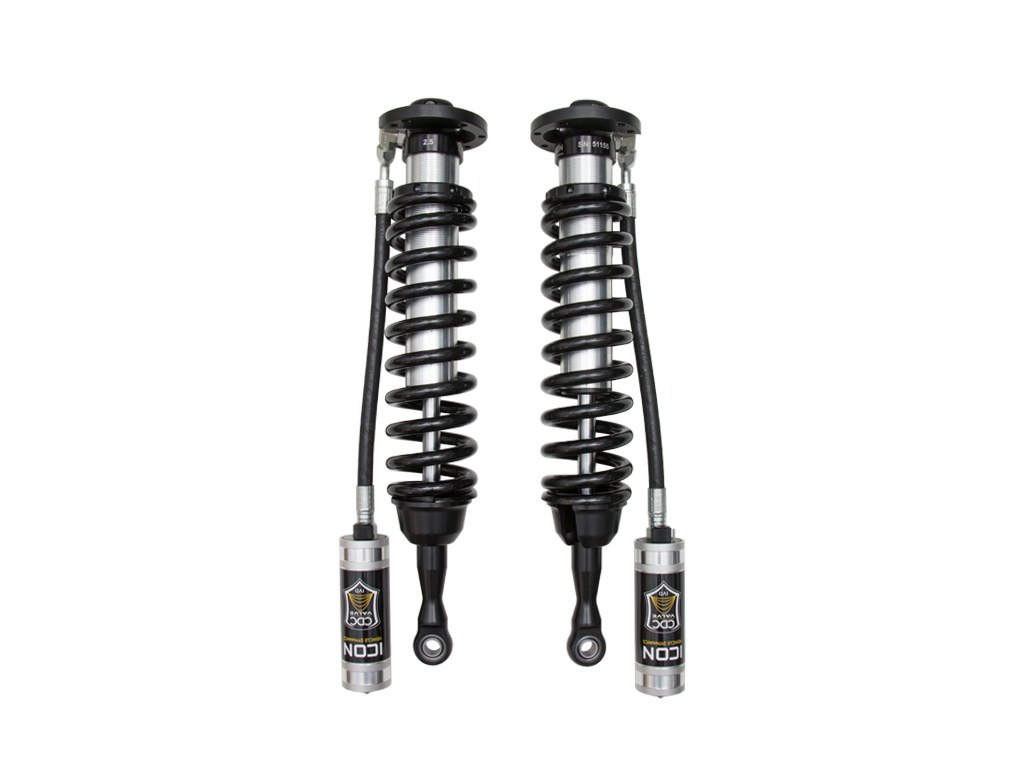

07-21 TUNDRA/08-22 SEQUOIA 2.5 VS RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58750C
Old price: $2,361.94
$2,249.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks w/ CDCV are an incredible upgrade for the front end of the 2007-2021 Toyota Tundra and 2008-2022 Toyota Sequoia. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDC Valve upgrade is included for those desiring an easy way to tune the ride externally with 10 adjustment settings from soft to hard. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your Tundra or Sequoia.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 51046 - 07-21 TUNDRA/08-21 LC200/08-22 SEQUOIA BUMP STOP SPACER KIT
Adjustable Compression Yes
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 18.88
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Adjustment Type Manual
Damping Type Oil
Dust Shield Included No
Extended Length 25.43
Front Spring Rate 600
Gas Charged Yes
Grade Type Performance
Includes Bump Stop No
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 1
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Center of Eylet
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 6.55
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
