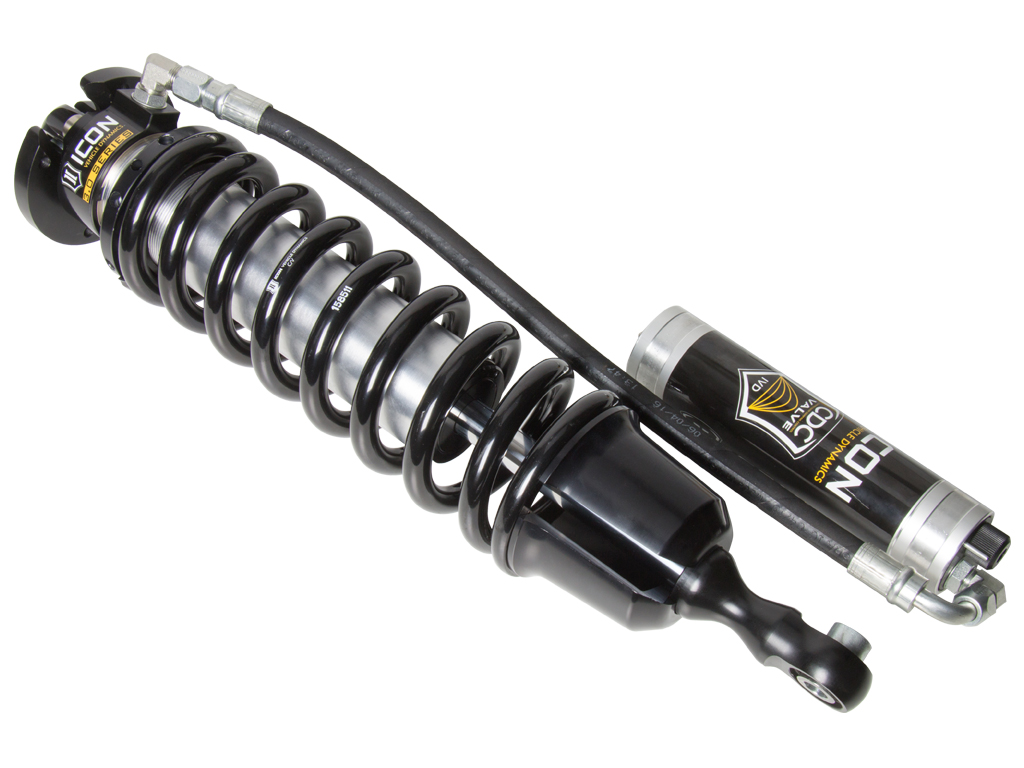

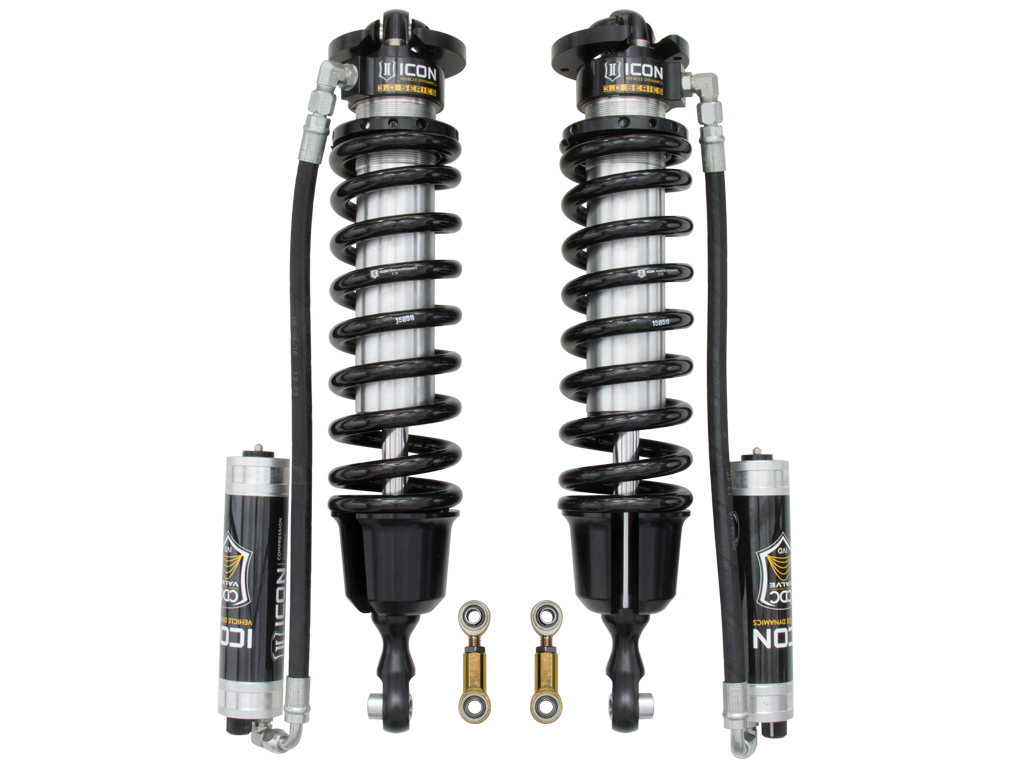

ICON Vehicle Dynamics Coilover Set - 58755

07-21 TUNDRA/08-22 SEQUOIA 3.0 VS RR CDCV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58755

Old price: $4,128.94

Price: $3,932.32

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

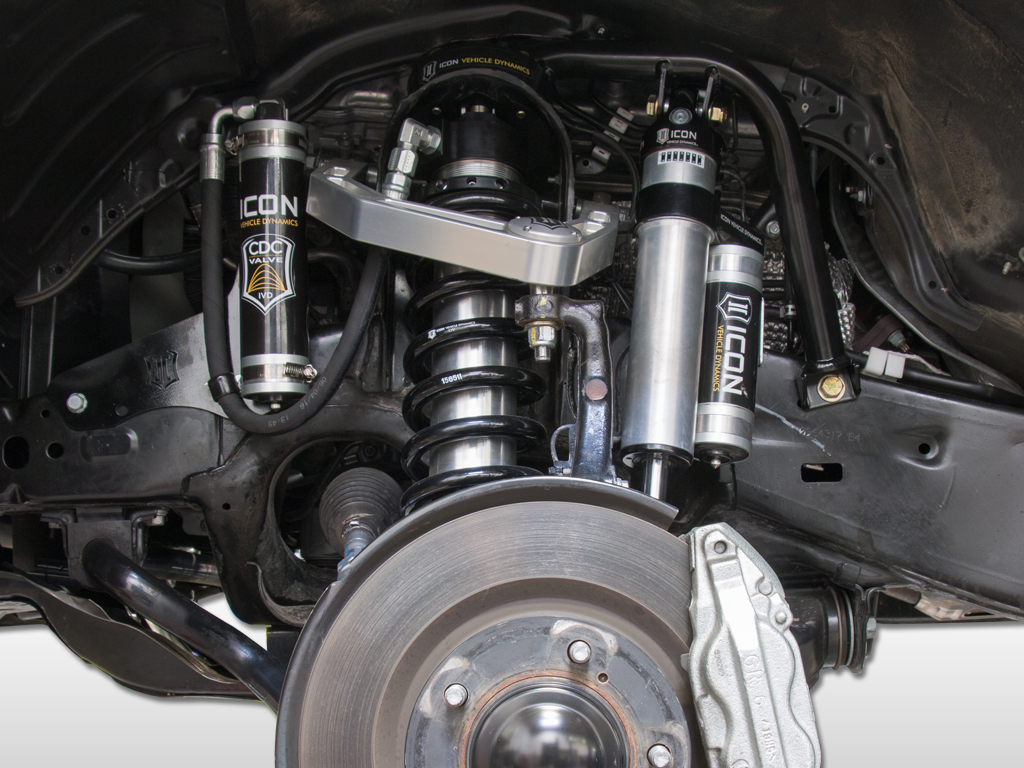

While ICON’s 2.5 Series coilovers are an excellent choice for drivers looking for a great all-around performance upgrade, there are a select few drivers seeking to drive their vehicles in a manner and in terrain that beckons for more. The ICON Vehicle Dynamics 2007-2021 Toyota Tundra/2008-2022 Toyota Sequoia 3.0 Series Coilover Kit was designed to take the off-road capability of the truck to new levels by increasing wheel travel and significantly improving the damping ability of the front shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	3
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	18.63
Cylinder Color	Gray
Active or Passive Suspension	Passive
Add-On Part	191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 51046 - 07-21 TUNDRA/08-21 LC200/08-22 SEQUOIA BUMP STOP SPACER KIT, 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression	Yes
Cylinder Finish	Ceramic Coated
Cylinder Material	Steel
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	25.4
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	3
Maximum Ride Height Raising Distance	3.5
Minimum Lift	1.63
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9" w/ 6” Backspace / 25mm Offset, ICON Alloys - 20x9" w/ 6” Backspace / 25mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 302005 - 3.0 ICON REBUILD KIT (ALL), 252003 - SEAL INSTALL TOOL 2.5/3.0, 611025 - 07 TUNDRA CO HARDWARE KIT PAIR
Shaft Diameter	1
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Spring Color	Black
Spring Material	Steel
Spring Rate	600
Spring Rate Type	Linear
Travel Length	6.77
Upper Mount Type	Mounting Plate
Valving Type	Compression: Linear, Rebound: Digressive
Country of Origin	US
Condition	New
