ICON Vehicle Dynamics Coilover Set - 58775X

Name: ICON Vehicle Dynamics Coilover Set - 58775X
SKU: 58775X
Price: 3749.95 USD
Availability: OutOfStock

22-25 TUNDRA/23-25 SEQUOIA 3.0 VS RR CDXS COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 58775X

Old price: $3,937.45

Price: $3,749.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

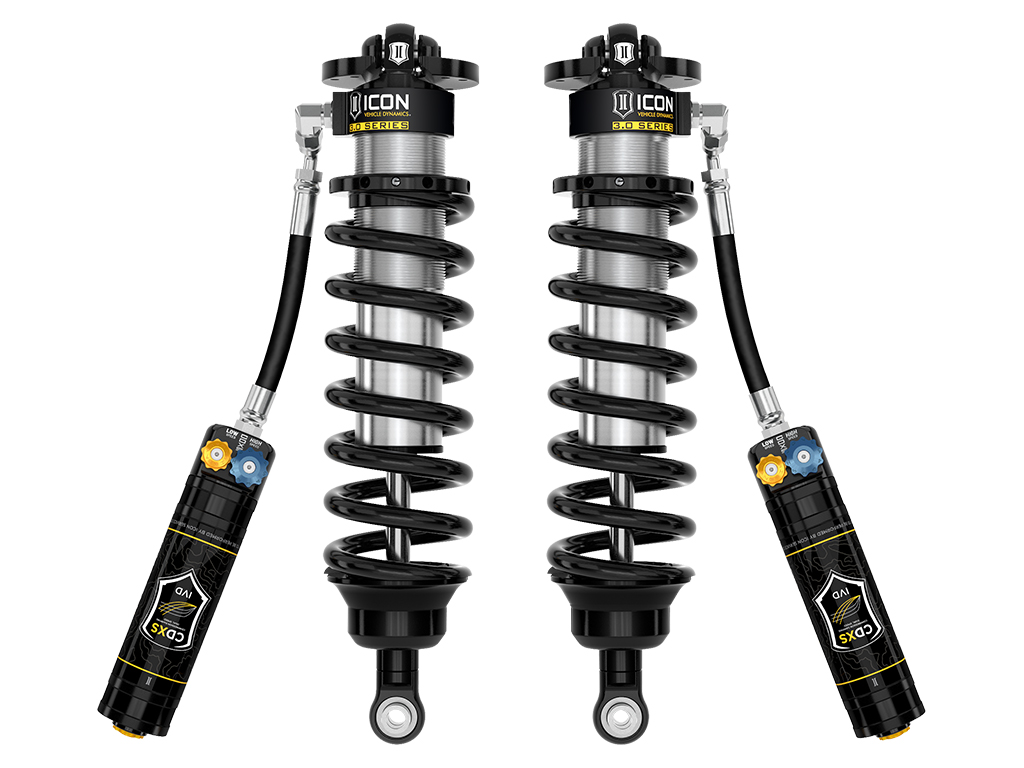

ICON's 3.0 Series Coilovers with CDXS for 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia are designed to take the off-road capability of the trucks to new levels by increasing wheel travel by up to 40% and significantly improving the damping ability of the front shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	55154 - 22-25 TUNDRA/23-25 SEQUOIA SWAY BAR DROP KIT, 58461DJ - 22-25 TUNDRA/23-25 SEQUOIA TUBULAR UCA DJ PRO KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 58561DJ - 22-25 TUNDRA/23-25 SEQUOIA BILLET UCA DJ PRO KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191010 - ICON RAPTOR 3.0 COIL WRAP W/LOGO PAIR, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT
Cylinder Color	Gray
Cylinder Finish	Ceramic Coated
Cylinder Material	Steel

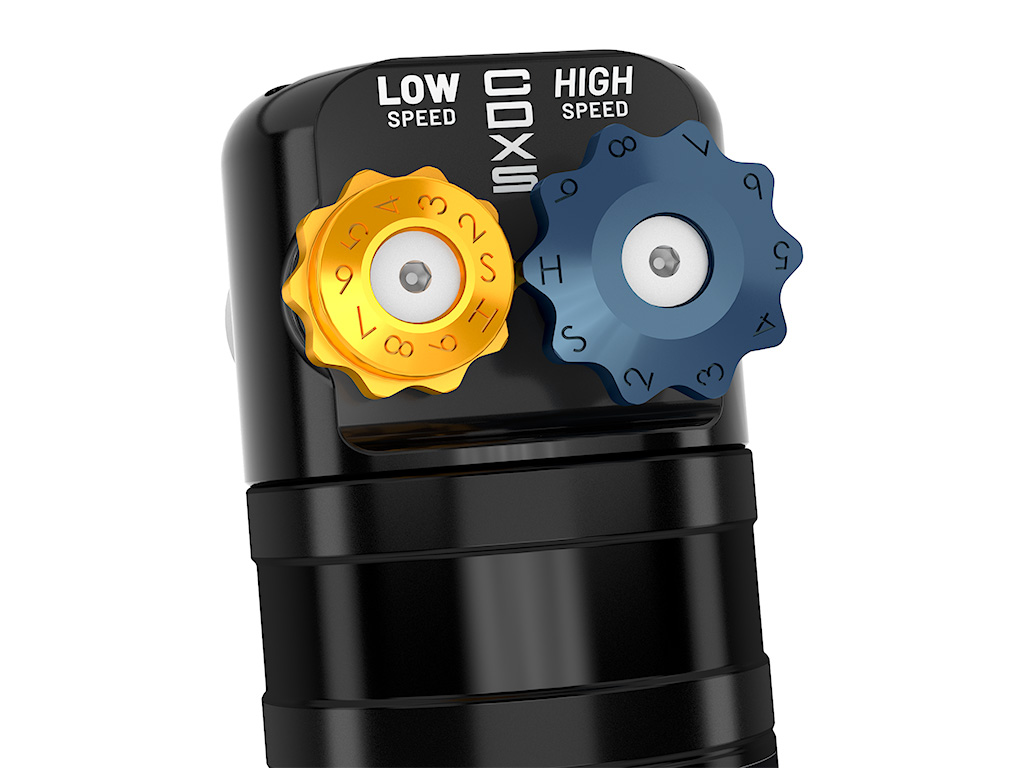

Damping Adjustment Type	Dual Speed/Manual
Damping Type	Oil
Dust Shield	NO
Dust Shield Included	No
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.67
Upper Mount Type	Mounting Plate
Valving Type	Digressive, Linear
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	3
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	16.38
Extended Length	22.04
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	3.25
Maximum Ride Height Raising Distance	3.25
Minimum Lift	1.25
Country of Origin	US
Condition	New
