ICON Vehicle Dynamics Coilover Set - 58780C

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle

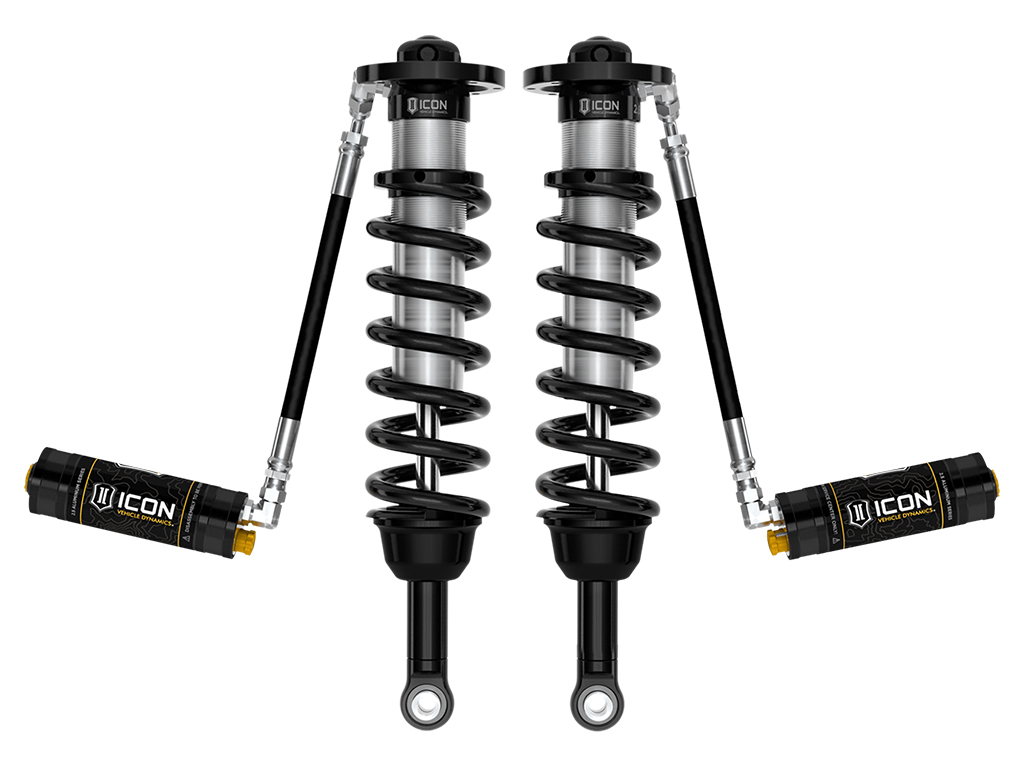

24-25 TACOMA 2.5 VS RR CDCV COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 58780C
Old price: $2,402.35
$2,287.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2024-2025 Toyota Tacoma. These adjustable coilovers allow up 1.25-3” of lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving, their large 2.5” shock body with increased piston surface area over stock components, and their pairing with an ICON front differential drop (4WD only), yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Note: OEM Wheels & Tires Fitment: Yes

Watch product video

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Adjustable Compression Yes
Active or Passive Suspension Passive
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Dust Shield Included No
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 58452DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R TUBULAR UCA DJ PRO KIT, 58552DJ - 24-25 TACOMA/24-25 LC250/24-25 GX550/25 T4R BILLET UCA DJ PRO KIT, 55160 - 24-25 TACOMA 4WD/24-25 LC250/25 T4R 4WD FRONT DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT
Compressed Length 19.42
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Adjustment Type Manual
Damping Type Oil
Extended Length 25.68
Front Spring Rate 450
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Eyelet
Material Steel, Aluminum
Maximum Lift 3
Maximum Ride Height Raising Distance 3
Minimum Lift 1.25
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5 with 5.75” Backspace / 25mm Offset, ICON Alloys - 18x9 with 6.00” Backspace / 25mm Offset
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 6.27
Upper Mount Type Mounting Plate
Valving Type Digressive
Adjustable Damping Yes
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
Country of Origin US
Condition New
