ICON Vehicle Dynamics Coilover Set - 59730-CB

Name: ICON Vehicle Dynamics Coilover Set - 59730-CB
SKU: 59730-CB
Price: 1799.15 USD
Availability: OutOfStock

05-23 TACOMA/07-14 FJ 2.5 VS RR COILOVER KIT W LONG TRAVEL

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 59730-CB

Old price: $1,889.11

Price: $1,799.15

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

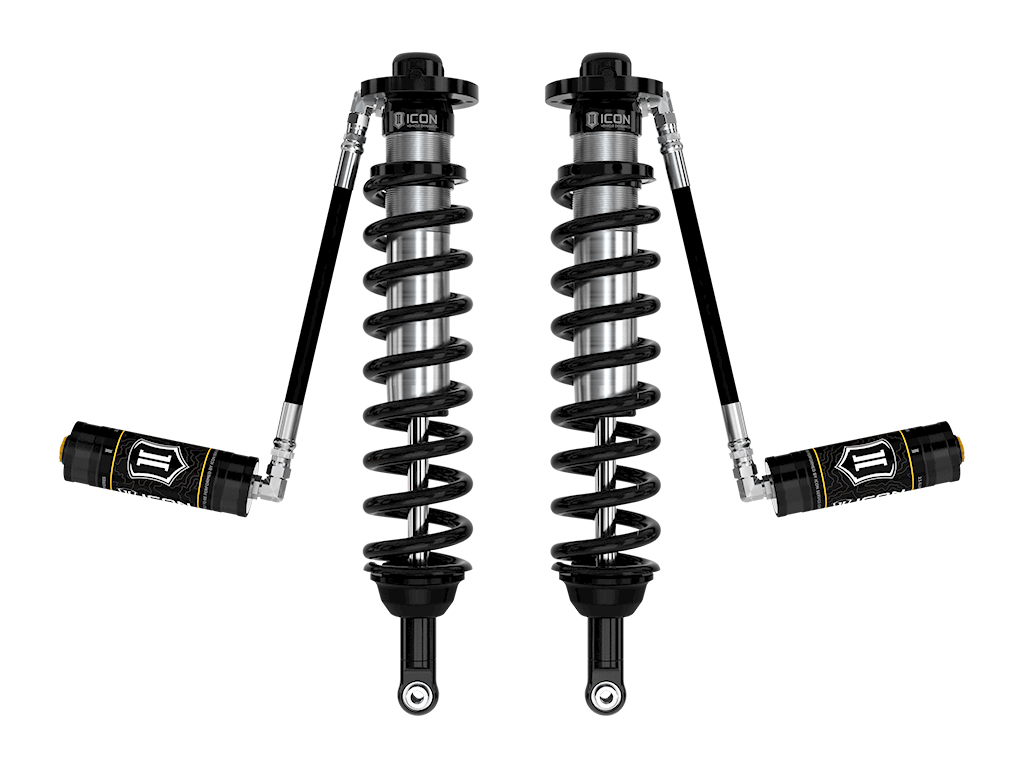

The ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma, 2003-2024 4Runner, or 2007-2014 FJ Cruiser equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use.

Note: TECH NOTE: Coilovers optimized for use with the Total Chaos long travel kit but may also be compatible with others

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.20
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	24.65
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	0
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252001 - 2.5 FIXED SPANNER WRENCH, 611019 - COILOVER HARDWARE KIT PAIR, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 257304 - 7/8 SHAFT 14.75 OAL, 10.50 TRAVEL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate	600
Spring Rate Type	Linear
Travel Length	7.46
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
