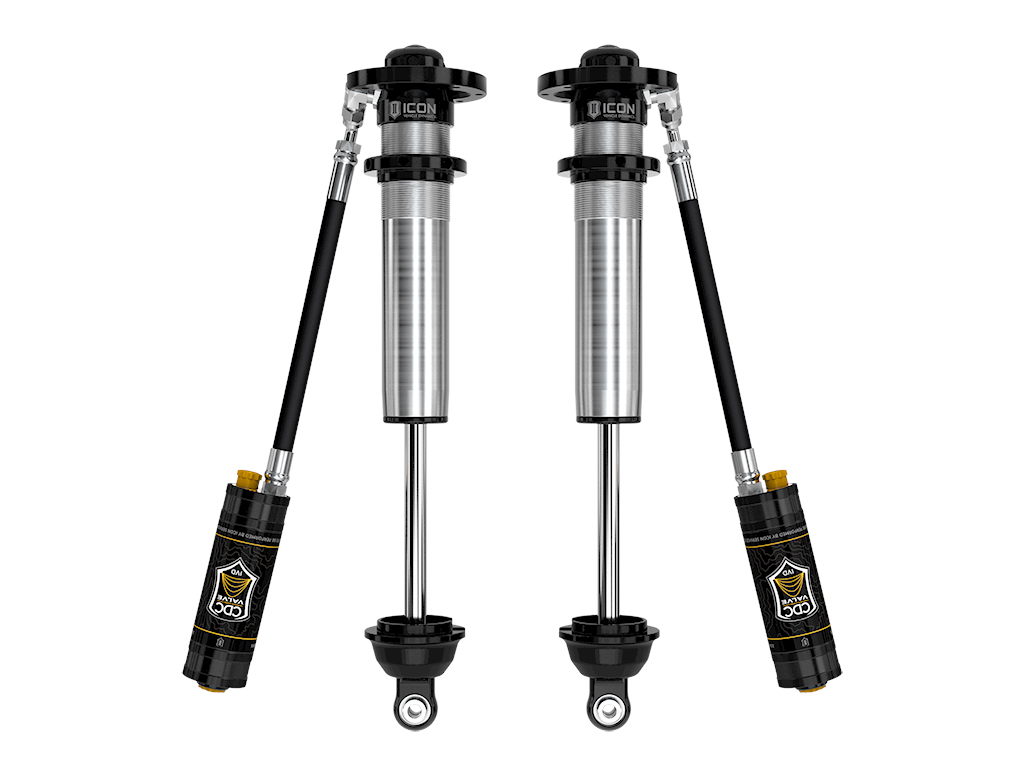

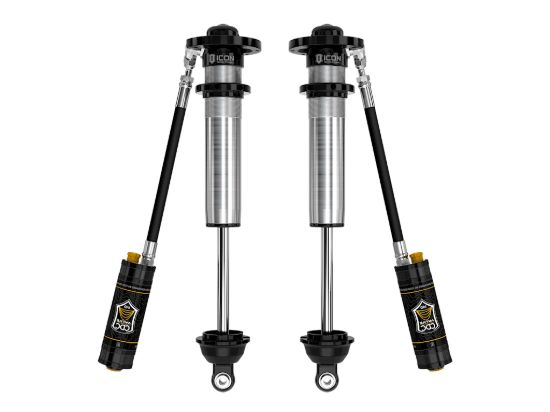

ICON Vehicle Dynamics Coilover Set - 59750C-CB

Name: ICON Vehicle Dynamics Coilover Set - 59750C-CB
SKU: 59750C-CB
Price: 2099.29 USD
Availability: OutOfStock

07-21 TUNDRA 2.5 VS RR CDCV CO KIT W LT WO COIL

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 59750C-CB

Old price: $2,204.25

Price: $2,099.29

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2007-2021 TUNDRA 2.5 VS REMOTE RESERVOIR CDCV CO KIT WITH LONG TRAVEL WITHOUT COILS

Note: Coilovers optimized for use with the Camburg long travel kit but may also be compatible with others

Products specifications

Attribute name	Attribute value
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	No
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	No
Compressed Length	15
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	23.96
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Travel Length	8.96
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
