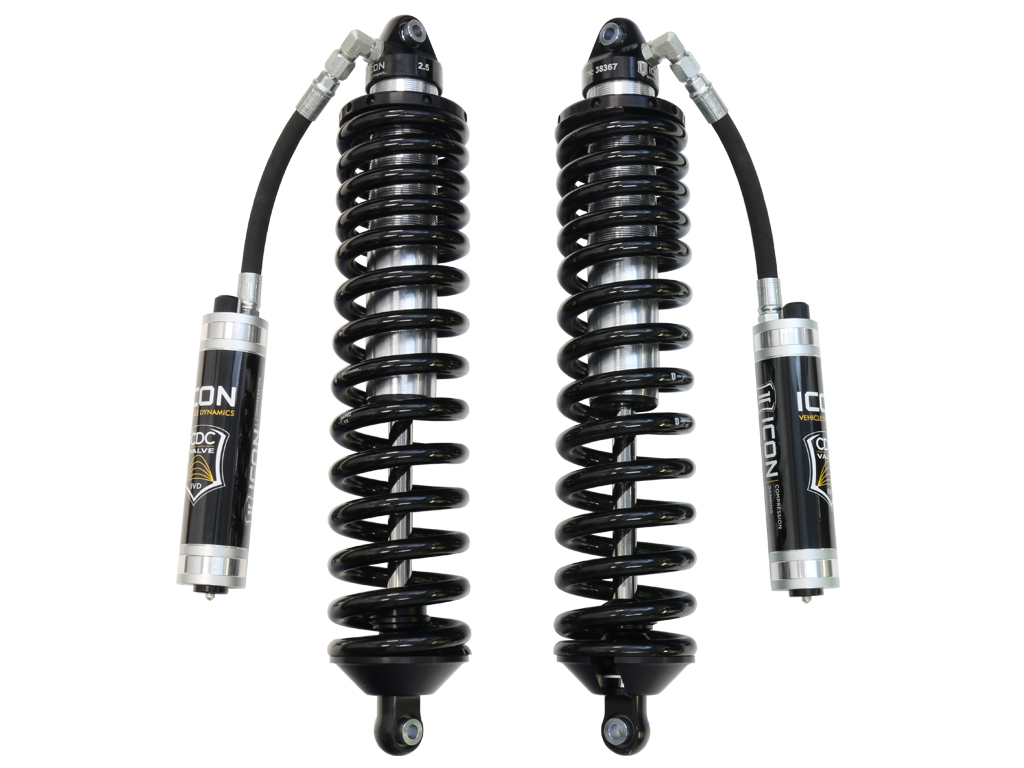

ICON Vehicle Dynamics Coilover Set - 61700C

Name: ICON Vehicle Dynamics Coilover Set - 61700C
SKU: 61700C
Price: 2183.95 USD
Availability: OutOfStock

08-16 FSD 4WD 7-9" 2.5 VS RR CDCV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 61700C

Old price: $2,293.15

Price: $2,183.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2008-2016 FSD 4WD 7-9" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Progressive Dual Rate
Travel Length	9.49
Upper Mount Type	Eyelet
Valving Type	Digressive
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	16.49
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	25.98
Front Spring Rate	390, 550
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Lift	9
Maximum Ride Height Raising Distance	9
Minimum Lift	7
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611019 - COILOVER HARDWARE KIT PAIR, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 191015 - 10" FINNED RESI UPGRADE KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Center of Eylet
Country of Origin	US
Condition	New
