ICON Vehicle Dynamics Coilover Set - 61721E

17-25 FSD 4WD 4-5.5" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 61721E

Old price: $3,376.22

Price: $3,215.45

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

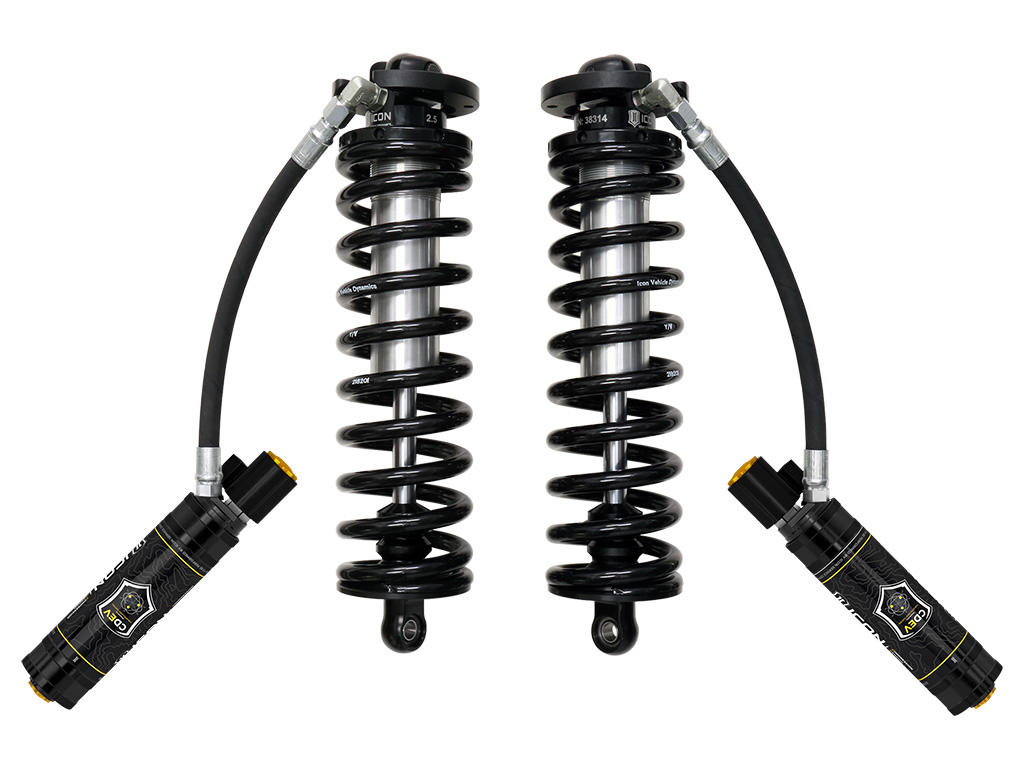

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2025 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.

Note: Factory Wheels & Tires Fitment: Yes

Watch product video

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Active
Adjustable Compression	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Dust Shield Included	No
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 37701EP - 17-25 FSD 3-6" REAR 2.5 VS PB CDEV PAIR, 37705EP - 17-25 FSD 0-3" REAR 2.5 VS PB CDEV PAIR, 93500 - 15-23 F150 & 17-22 FSD IIC INSTALL KIT, 198001 - BILLET SPANNER WRENCH KIT, 93502 - 23-25 FSD IIC INSTALL KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191207 - IIC CONTROLER ALT FUNCTION PLUG KIT, 611003 - 2.5 RESI DOUBLER MOUNT 7.5" KIT
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Aluminum, Steel
Maximum Lift	6.25
Maximum Ride Height Raising Distance	5.5
Minimum Lift	3.5
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL, 191016 - 7.5" FINNED RESI UPGRADE KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	7.96
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Compressed Length	14.6
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Electronic
Damping Type	Oil
Extended Length	22.56
Front Spring Rate	400
Gas Charged	Yes
Country of Origin	US
Condition	New
