ICON Vehicle Dynamics Coilover Set - 61750

Name: ICON Vehicle Dynamics Coilover Set - 61750
SKU: 61750
Price: 1871.95 USD
Availability: OutOfStock

08-16 FSD 4WD 4.5" 2.5 VS RR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 61750

Old price: $1,965.55

Price: $1,871.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

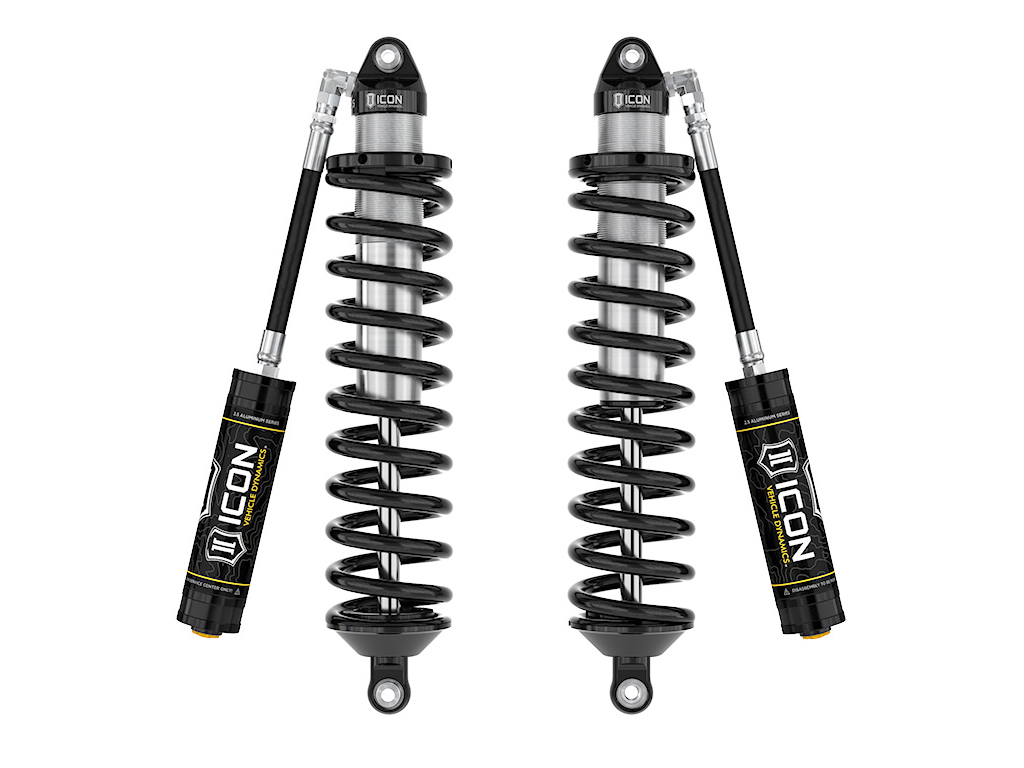

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 4" to 6.5" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191015 - 10" FINNED RESI UPGRADE KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	8.98
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	15.4
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	24.38
Front Spring Rate	400
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Country of Origin	US
Condition	New
