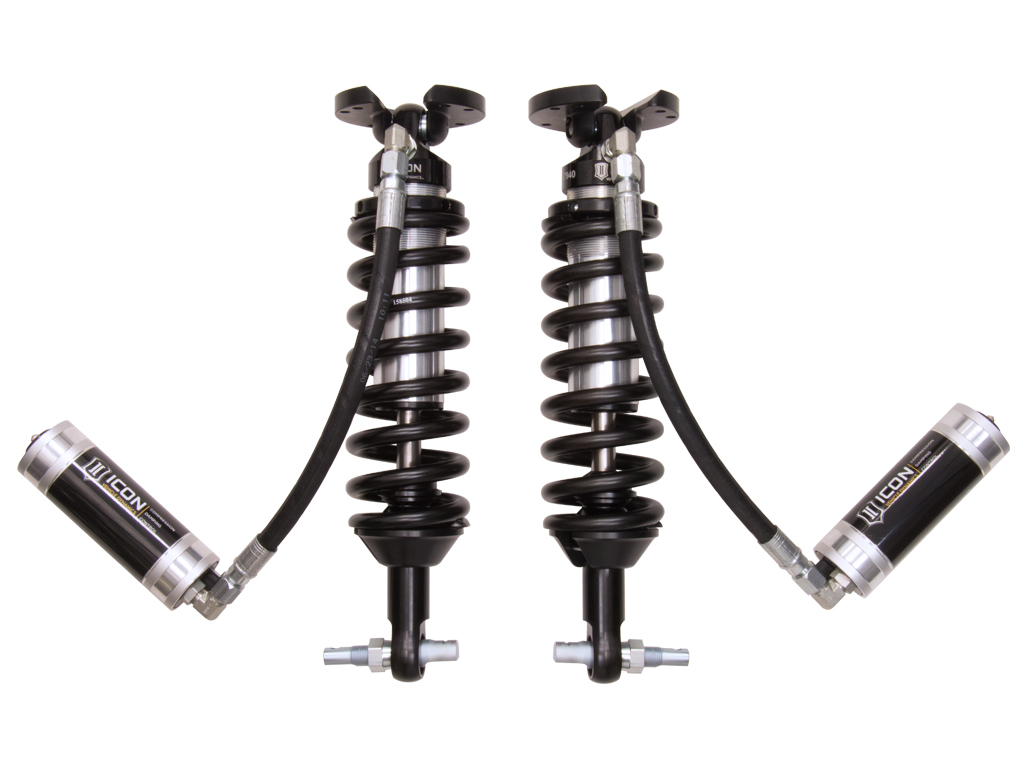

ICON Vehicle Dynamics Coilover Set - 71555C

Name: ICON Vehicle Dynamics Coilover Set - 71555C
SKU: 71555C
Price: 2287.95 USD
Availability: OutOfStock

07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 71555C

Old price: $2,402.35

Price: $2,287.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2007-2018 GM 1500 1-2.5" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Flat on Bar Pin
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	4.67
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	15.27
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Manual
Damping Type	Oil
Dust Shield Included	No
Extended Length	19.94
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 611019 - COILOVER HARDWARE KIT PAIR, 191016 - 7.5" FINNED RESI UPGRADE KIT, 257306 - 7/8 SHAFT 9.65 OAL, 5.40 TRAVEL
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Aluminum, Steel
Maximum Lift	2.5
Maximum Ride Height Raising Distance	2.5
Minimum Lift	1
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Country of Origin	US
Condition	New
