ICON Vehicle Dynamics Coilover Set - 71605

19-24 GM 1500 FRONT 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 71605

Old price: $2,020.15

Price: $1,923.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

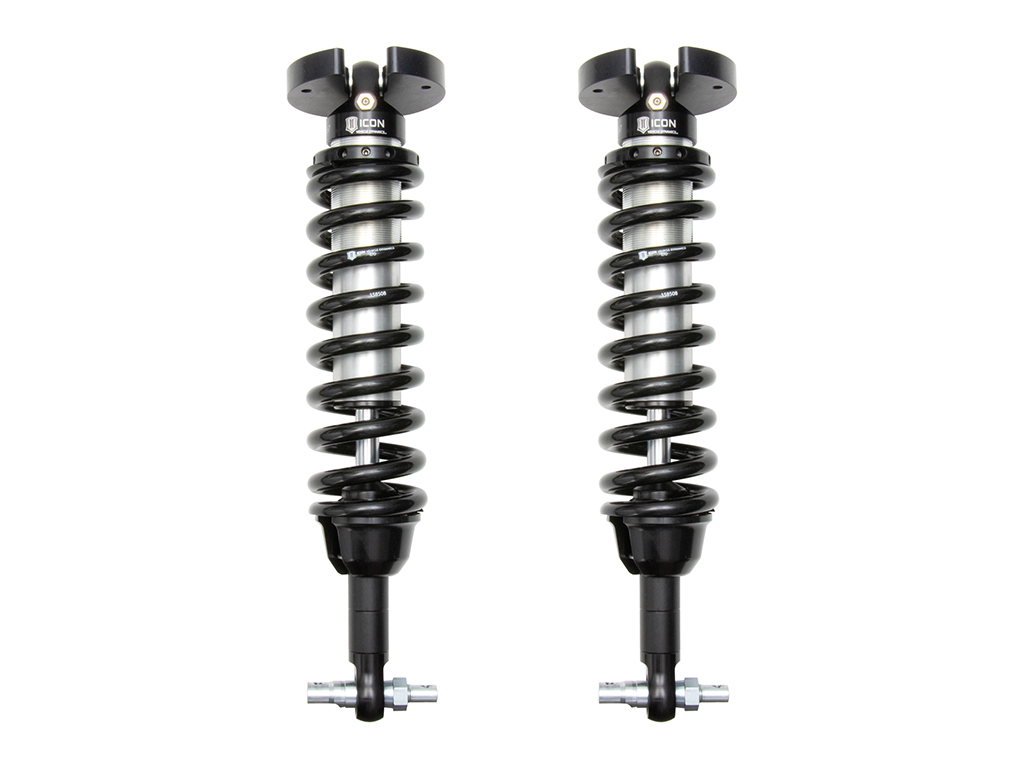

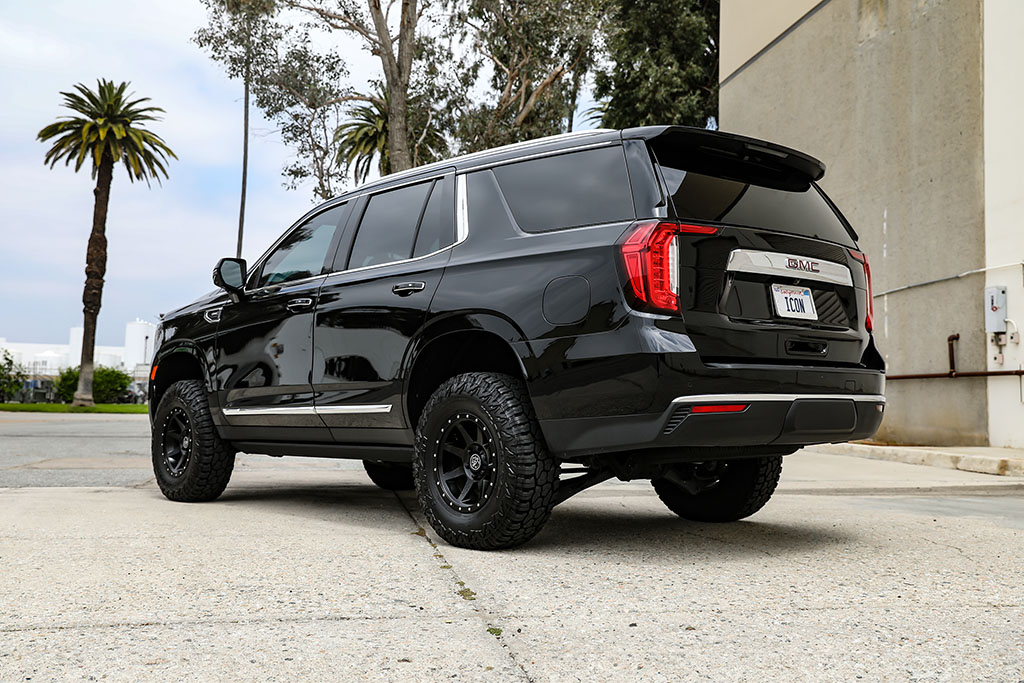

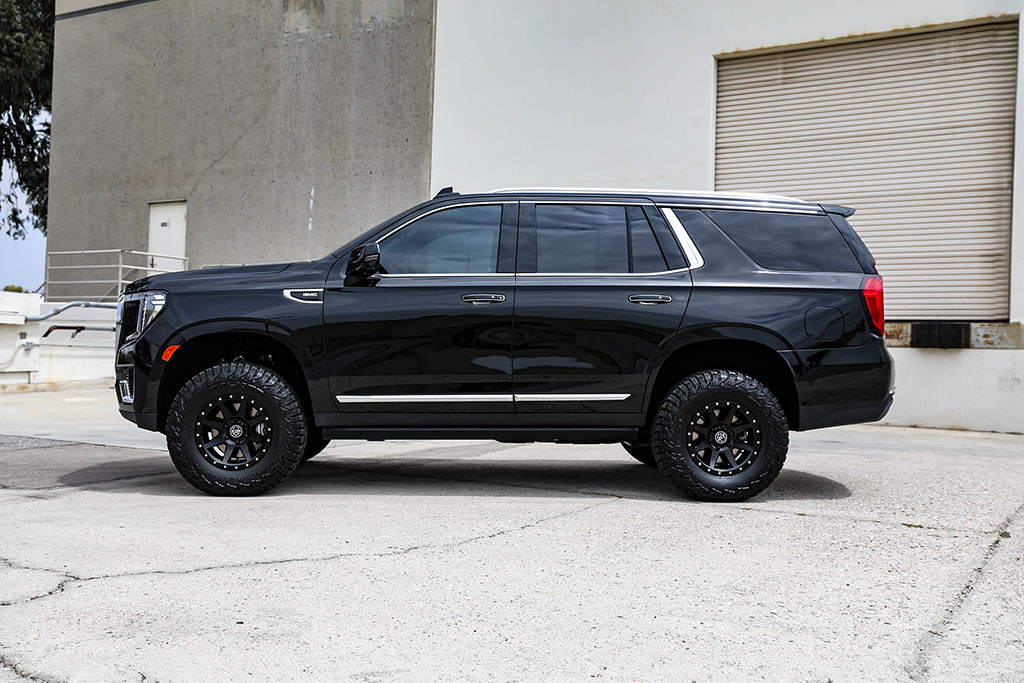

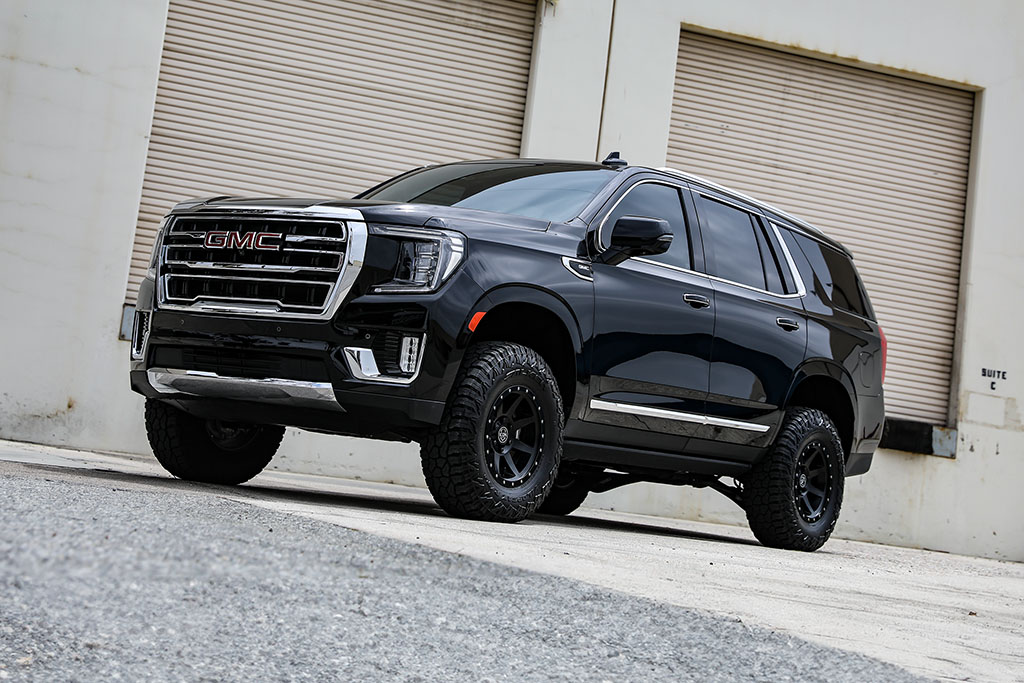

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2019-2024 Chevrolet Silverado 1500/GMC Sierra 1500 trucks and 2021-2023 Chevrolet Tahoe & Suburban/GMC Yukon & Yukon XL SUVs. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel (a 20% increase over stock) while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.5-3.5” of lift height adjustability on pickup trucks or 2.5-3.25” of lift height adjustability on SUVs, allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GM pickup truck or SUV.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 71022 - 21-23 GM RIDE HEIGHT SIMULATOR, 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR
Cylinder Finish	Cadmium Plated
Reservoir Style	Internal
Self-Leveling	No
Service Parts	611019 - COILOVER HARDWARE KIT PAIR, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 252001 - 2.5 FIXED SPANNER WRENCH, 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Flat on Bar Pin
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.27
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.97
Cylinder Color	Silver
Dust Shield Included	No
Extended Length	23.23
Remote Reservoir	No
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Cylinder Material	Steel
Damping Type	Oil
Front Spring Rate	700
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Aluminum, Steel
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	1.5
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	(Silverado) 315/70R17 (Larger tires may fit but fender trimming and modifications will be required), (Sierra) 305/70R17 (Larger tires may fit but fender trimming and modifications will be required)
Country of Origin	US
Condition	New
