Picture of ICON Vehicle Dynamics Coilover Set - 71615
Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615 Picture of ICON Vehicle Dynamics Coilover Set - 71615

ICON Vehicle Dynamics Coilover Set - 71615

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
23-24 GM CANYON/COLORADO 2.5 VS IR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 71615
Old price: $1,801.75
$1,715.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

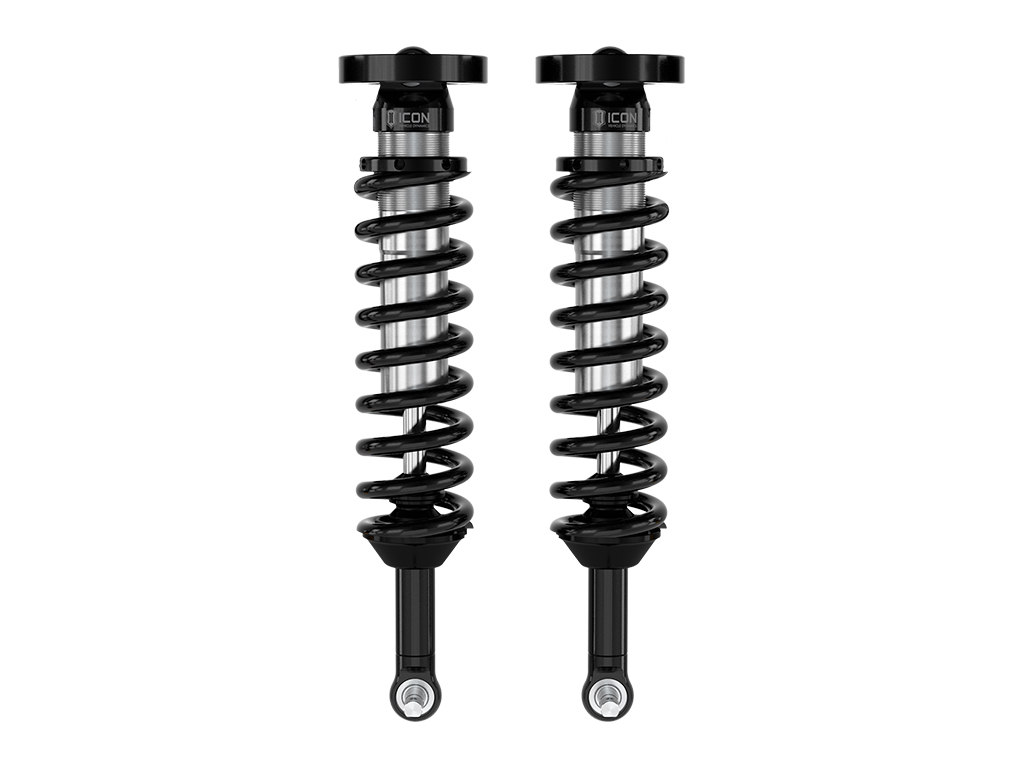

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 GMC Canyon and 2023-2024 Chevrolet Colorado Trail Boss and Colorado ZR2 trucks. Their longer length offers an increase in total front wheel travel compared to stock, for a total of 9” front wheel travel while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your GMC Canyon or Chevrolet Colorado Trail Boss and ZR2.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Recommended Aftermarket Wheels 17x8.5" w/ 5.46” Backspace / 18mm Offset
Remote Reservoir No
Reservoir Style Internal
Self-Leveling No
Service Parts 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 4.97
Upper Mount Type Mounting Plate
Valving Type Digressive
Active or Passive Suspension Passive
Add-On Part 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 18.47
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Extended Length 23.43
Front Spring Rate 450
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Steel, Aluminum
Maximum Lift 2.5
Maximum Ride Height Raising Distance 2.5
Minimum Lift 1.75
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Country of Origin US
Condition New
🚗 Compatible with
4 vehicles are compatible with this product · 2023–2024
Looking for fitment details? Add your vehicle and we'll show you instantly whether this part fits. + Add Vehicle
