ICON Vehicle Dynamics Coilover Set - 71616

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
23-24 CHEVROLET COLORADO 2.5 VS IR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 71616
Old price: $1,801.75
$1,715.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

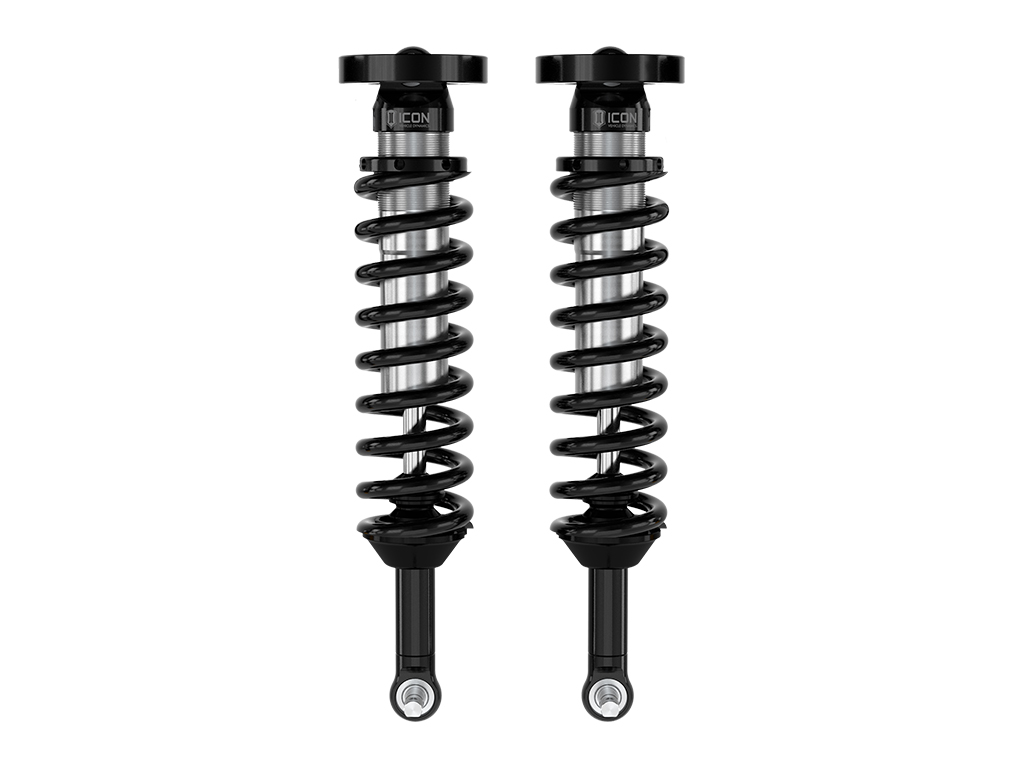

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front-end of 2023-2024 Chevrolet Colorado WT, LT, and Z71 trucks. Specifically designed for the narrower track width of these Colorado submodels, their longer than stock length offers an increase in total front wheel travel compared to stock while still being compatible with the stock front upper control arms. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 1.75-2.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” diameter shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Chevrolet Colorado WT, LT, and Z71.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Add-On Part 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Adjustable Ride Height Yes
Assembled Yes
Body Diameter 2.5
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Compressed Length 17.44
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Dust Shield Included No
Extended Length 22.23
Front Spring Rate 450
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Steel, Aluminum
Maximum Lift 2.5
Maximum Ride Height Raising Distance 2.5
Minimum Lift 1.75
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels 17x8.5" w/ 5.46” Backspace / 18mm Offset
Remote Reservoir No
Reservoir Style Internal
Self-Leveling No
Service Parts 252010 - 2.5 IFP REBUILD KIT
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 4.79
Upper Mount Type Mounting Plate
Valving Type Digressive
Active or Passive Suspension Passive
Country of Origin US
Condition New
🚗 Compatible with
2 vehicles are compatible with this product · 2023–2024
