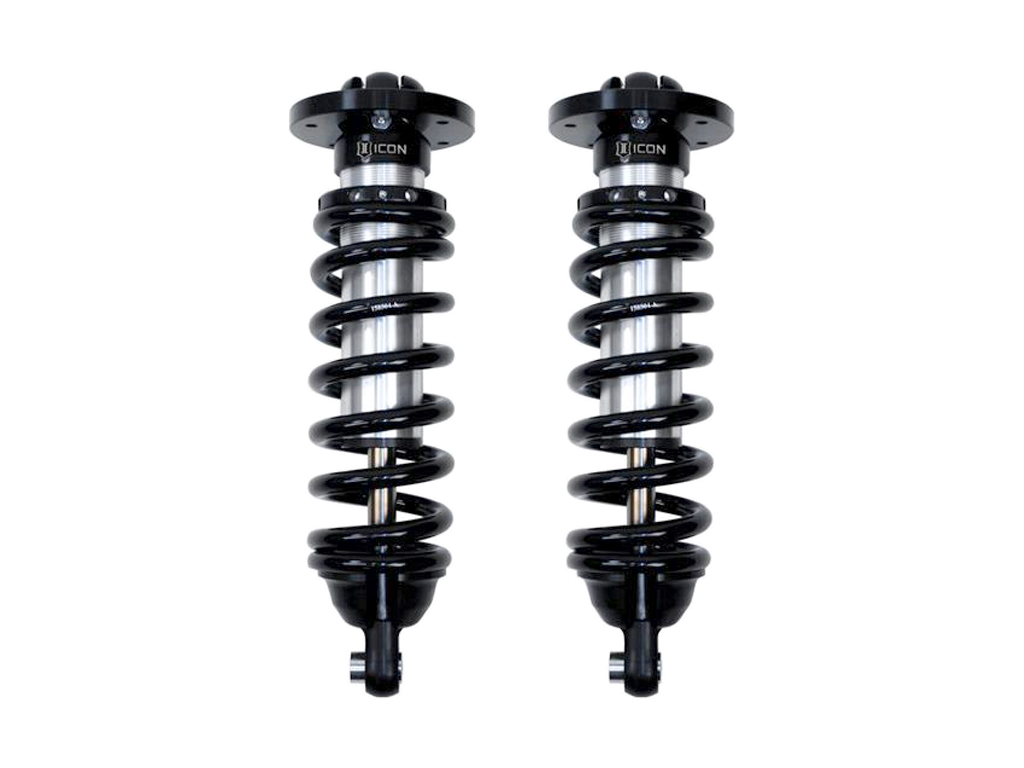

ICON Vehicle Dynamics Coilover Set - 81001-CB

Name: ICON Vehicle Dynamics Coilover Set - 81001-CB
SKU: 81001-CB
Price: 1815.89 USD
Availability: OutOfStock

04-15 TITAN 2WD 8" CST 2.5 VS IR CO KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 81001-CB

Old price: $1,906.68

Price: $1,815.89

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

2004-2015 TITAN 2WD 8" LIFT CST 2.5 VS INTERNAL RESERVOIR CO KIT

Note: Coilovers optimized for use with the CST 8" lift but may also be compatible with others

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Active or Passive Suspension	Passive
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252010 - 2.5 IFP REBUILD KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 611067 - TACOMA/FJ/4RNR LOWER CO BRG/SPCR KIT, 252004 - ECONOMY NEEDLE CHARGING TOOL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Shaft Diameter	0.875
Valving Type	Digressive
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Upper Mount Type	Mounting Plate
Country of Origin	US
Condition	New
