ICON Vehicle Dynamics Coilover Set - 91110

Name: ICON Vehicle Dynamics Coilover Set - 91110
SKU: 91110
Price: 1518.35 USD
Availability: OutOfStock

11-UP RANGER T6 1-3" 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91110

Old price: $1,594.27

Price: $1,518.35

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

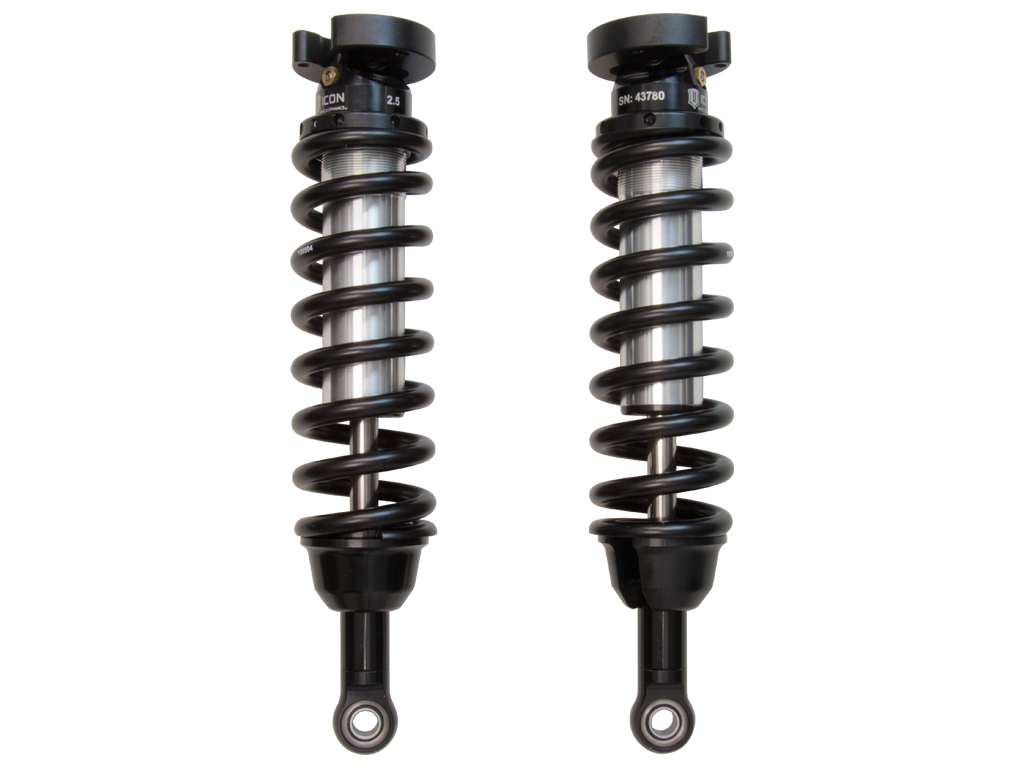

2011-UP RANGER T6 1-3" LIFT 2.5 VS INTERNAL RESERVOIR COILOVER KIT

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
AAP_UDA_4	55
AAP_UDA_12	EA
Active or Passive Suspension	Passive
Add-On Part	191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	15.78
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	20.93
Front Spring Rate	650
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	No
Internal Construction Type	Single Tube
Lower Mount Type	Eyelet
Material	Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	1
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	32 x 11.00" Tall Tires (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	17x8.5" w/ 5” Backspace
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	611019 - COILOVER HARDWARE KIT PAIR, 252010 - 2.5 IFP REBUILD KIT, 252004 - ECONOMY NEEDLE CHARGING TOOL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 257338 - 7/8 SHAFT 12.25 OAL, 8.00 TRAVEL, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.16
Upper Mount Type	MOUNT PLATE
Valving Type	Digressive
Country of Origin	US
Condition	New
