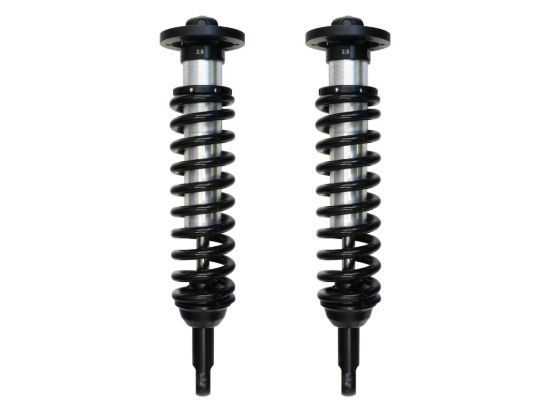

ICON Vehicle Dynamics Coilover Set - 91700

Name: ICON Vehicle Dynamics Coilover Set - 91700
SKU: 91700
Price: 1660.31 USD
Availability: OutOfStock

09-13 F150 4WD 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91700

Old price: $1,743.32

Price: $1,660.31

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics V.S. Series 2.5" coil-over shocks are an incredible upgrade for the front end of 2009-2013 Ford F-150 4WD trucks. ICON's Vehicle-specific valving provide a sport tuned feel on and off-road while 0-3" lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5" shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_22	1
AAP_UDA_4	55
AAP_UDA_12	EA
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Dust Shield Included	No
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	No
Add-On Part	97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR, 198001 - BILLET SPANNER WRENCH KIT, 98505DJ - 09-20 F150/14-20 EXPEDITION BILLET UCA DJ KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 98500DJ - 04-20 F150/14-UP EXPEDITION TUBULAR UCA DJ KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 96518 - 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 252010 - 2.5 IFP REBUILD KIT, 611019 - COILOVER HARDWARE KIT PAIR, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Flat on Bar Pin
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.37
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Compressed Length	17.85
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Extended Length	23.21
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Steel, Aluminum
Maximum Lift	2.63
Maximum Ride Height Raising Distance	2.63
Minimum Lift	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Country of Origin	US
Condition	New
