ICON Vehicle Dynamics Coilover Set - 91724

21-25 F150 4WD 3" LIFT 2.5 VS IR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91724

Old price: $1,910.95

Price: $1,819.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

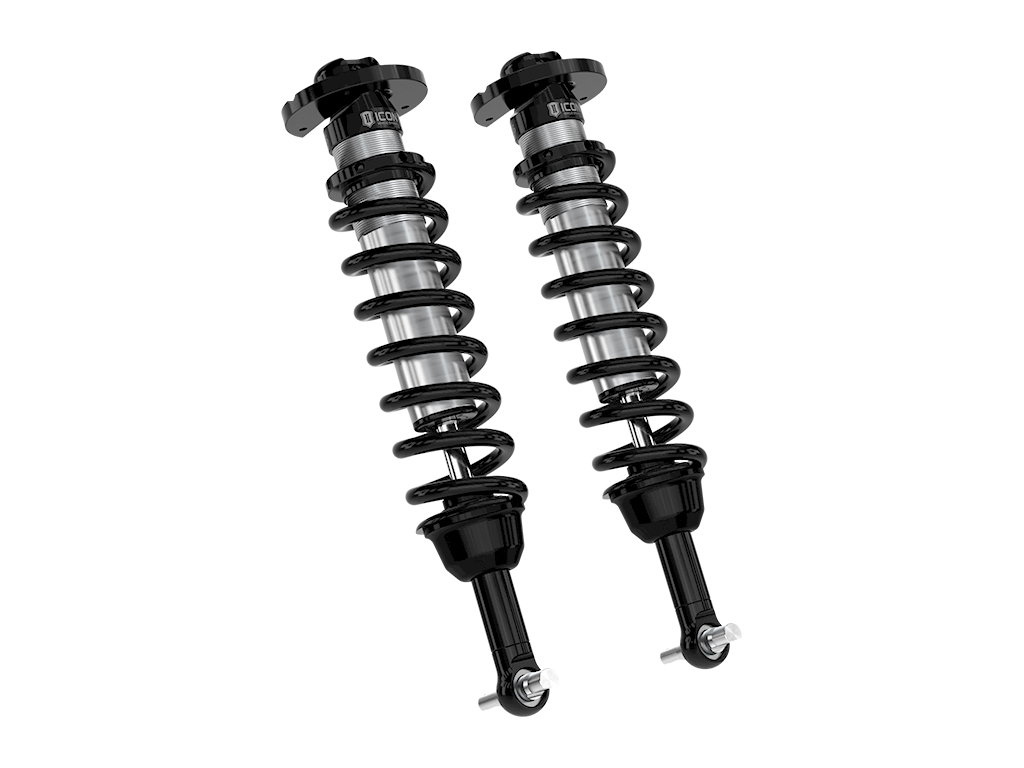

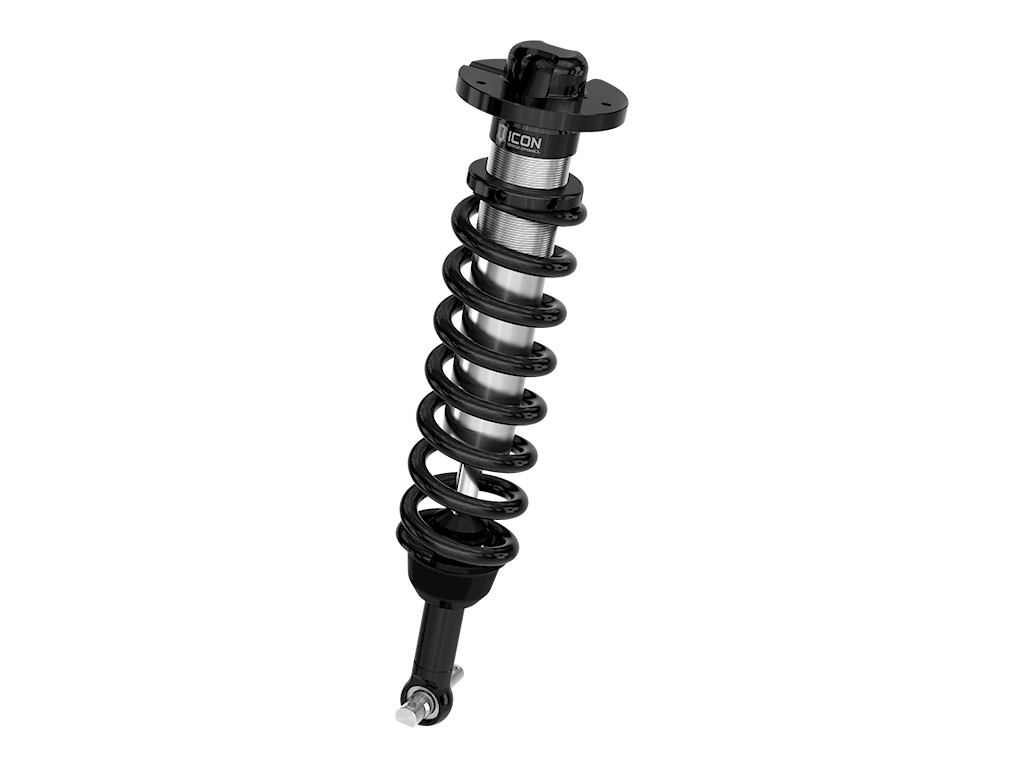

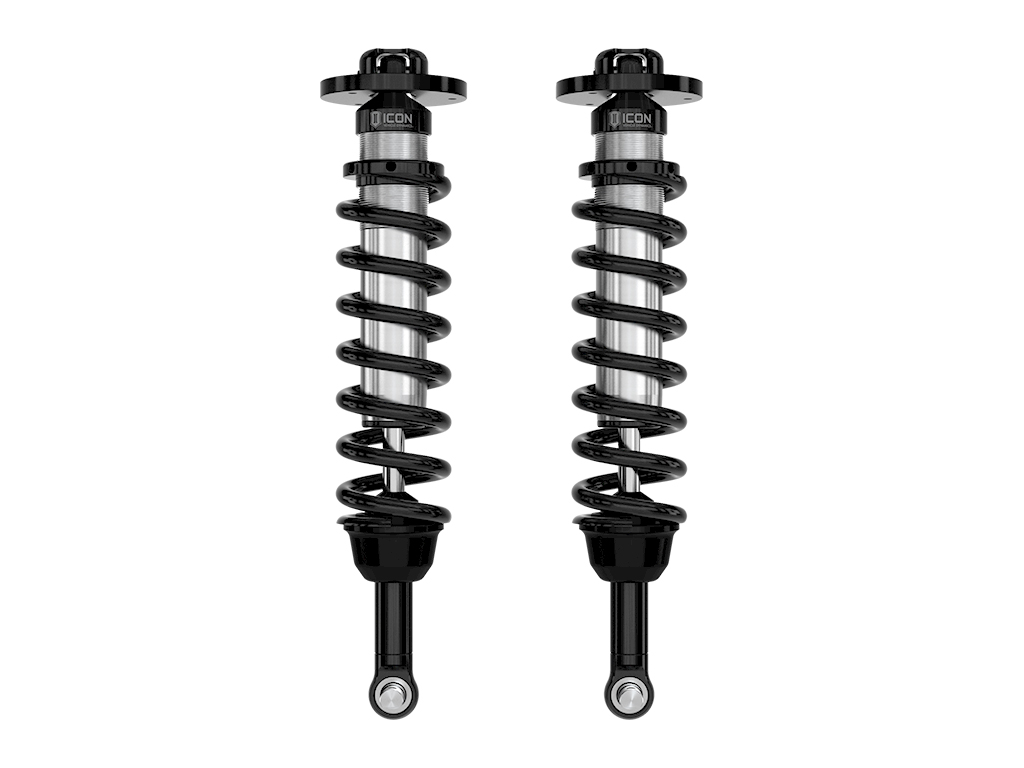

ICON Vehicle Dynamics V.S. Series 2.5” coilover shocks are an incredible upgrade for the front end of 2021-2025 Ford F-150 4WD trucks. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while 2.75-3.5” of lift height adjustability allows the use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. When paired with ICON rear 2.0 Aluminum Series or 2.5 Series shocks vehicle control will be balanced front to rear, resulting in the best overall driving experience for your F-150 truck.

Note: Factory Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	No
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Dust Shield Included	No
Add-On Part	98523DJ - 21-24 F150 BILLET UCA DJ PRO KIT, 98522DJ - 21-24 F150 TUBULAR UCA DJ PRO KIT, 96518 - 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR, 97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR, 198001 - BILLET SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
Compressed Length	18.67
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Extended Length	23.88
Front Spring Rate	550
Gas Charged	Yes
Grade Type	Performance
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Steel, Aluminum
Maximum Lift	3.5
Maximum Ride Height Raising Distance	3.5
Minimum Lift	2.75
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	34" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Remote Reservoir	No
Reservoir Style	Internal
Self-Leveling	No
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 252010 - 2.5 IFP REBUILD KIT, 252004 - ECONOMY NEEDLE CHARGING TOOL, 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.22
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Country of Origin	US
Condition	New
