ICON Vehicle Dynamics Coilover Set - 91816

Name: ICON Vehicle Dynamics Coilover Set - 91816
SKU: 91816
Price: 1975.95 USD
Availability: OutOfStock

15-20 F150 2WD 1.75-3" 2.5 VS RR COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91816

Old price: $2,074.75

Price: $1,975.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

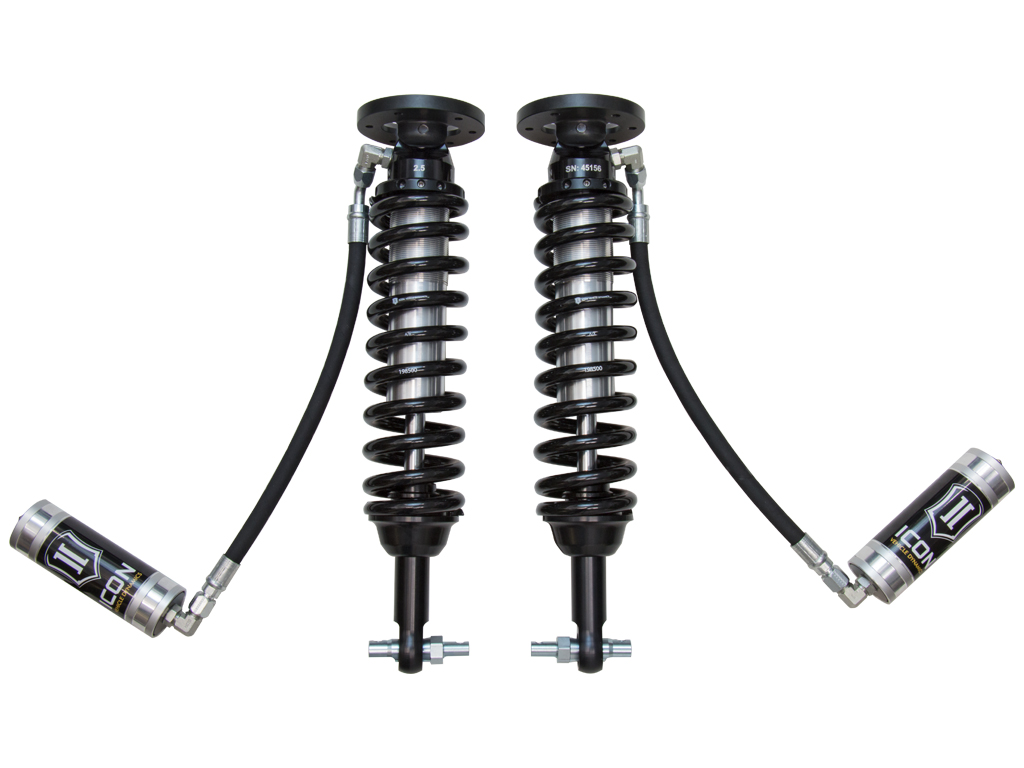

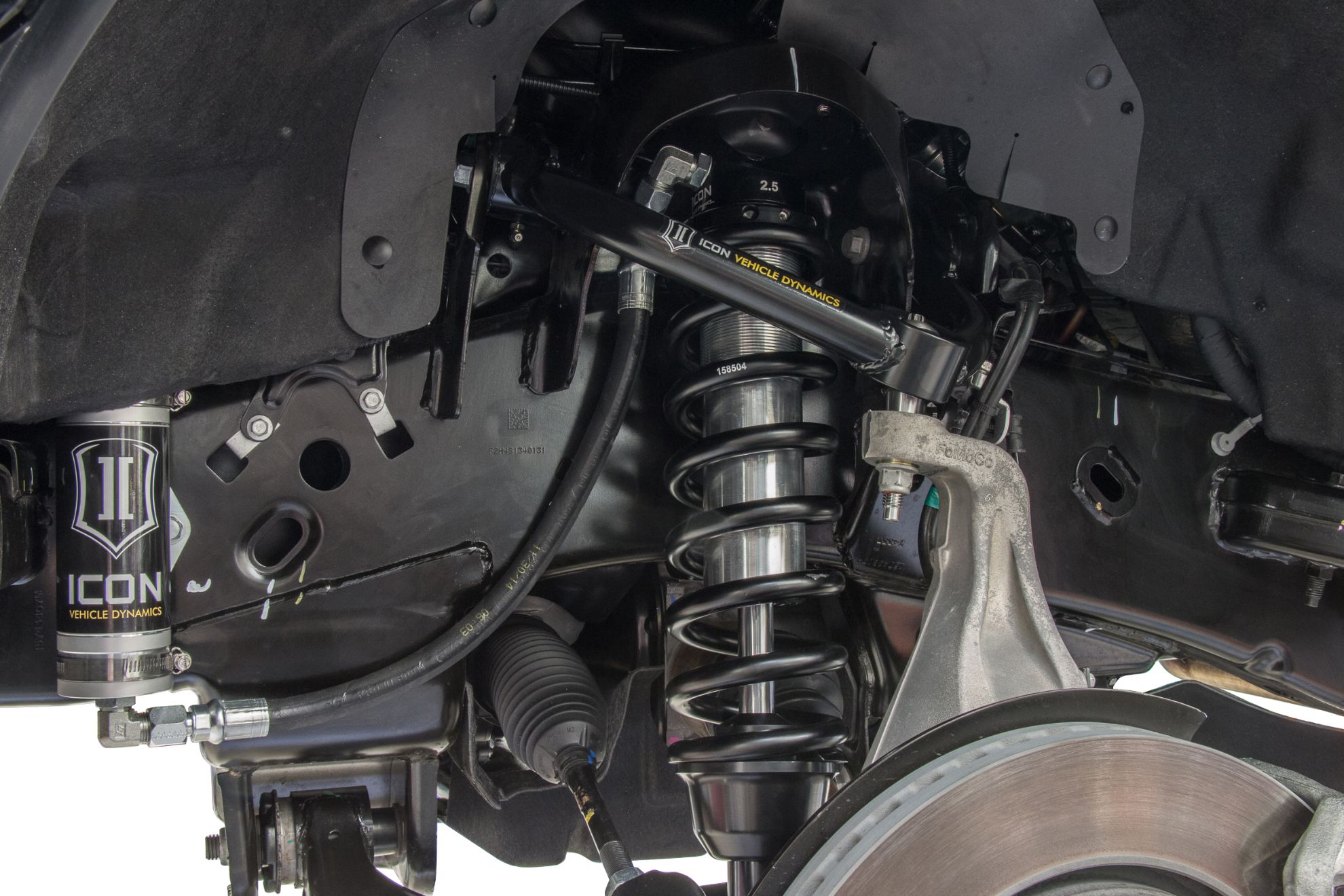

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2015-2020 Ford F150 2WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 1.75-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F150.

Note: Factory Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Travel Length	5.37
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Active or Passive Suspension	Passive
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.24
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.61
Front Spring Rate	600
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Aluminum, Steel
Maximum Lift	3
Maximum Ride Height Raising Distance	3
Minimum Lift	1.75
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Service Parts	257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 611019 - COILOVER HARDWARE KIT PAIR, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252003 - SEAL INSTALL TOOL 2.5/3.0, 252001 - 2.5 FIXED SPANNER WRENCH, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Center of Eylet
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Country of Origin	US
Condition	New
