ICON Vehicle Dynamics Coilover Set - 91823

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-25 F150 4WD 0-2.75" 2.5 VS RR COILOVER KIT
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 91823
Old price: $2,129.35
$2,027.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

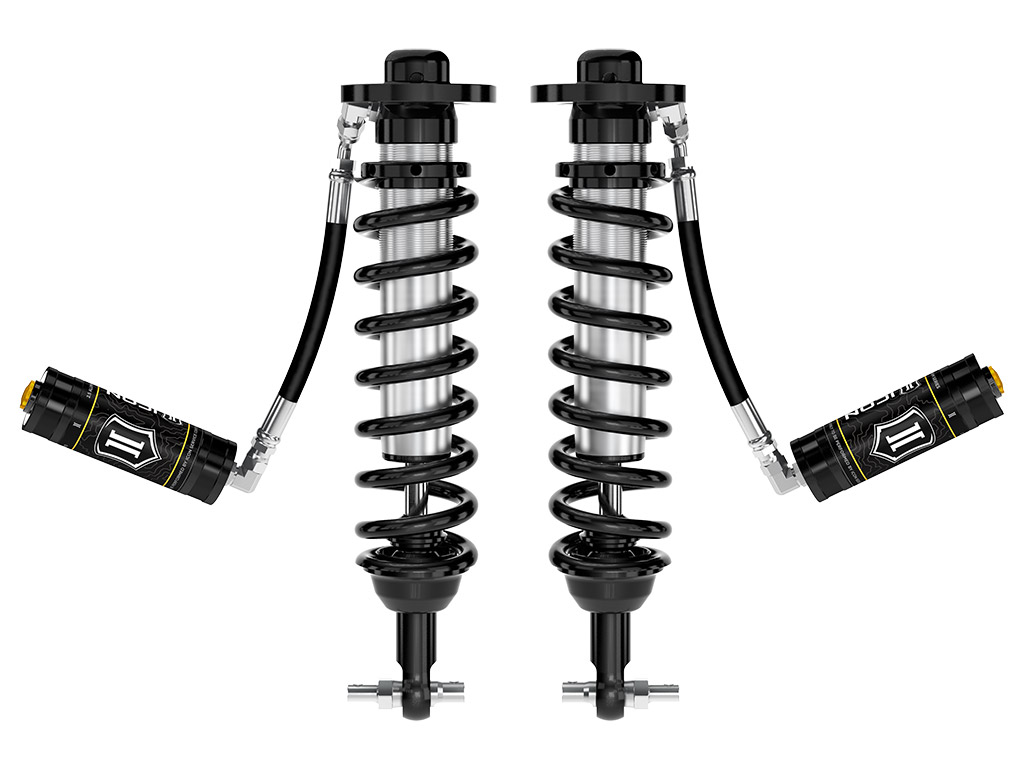

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 2021-2025 Ford F-150 4WD. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-2.75" of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5 Aluminum Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your F-150.

Note: OEM Wheels & Tires Fitment: Not compatible with all available OE wheel/tire combinations. Aftermarket wheels with lower offset/less backspace recommended.

Products specifications

Attribute name Attribute value
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included Yes
Dust Shield Included No
California Prop 65 Warning Yes
Adjustable Damping No
Adjustable Compression No
Active or Passive Suspension Passive
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
Adjustable Rebound No
Assembled Yes
Body Diameter 2.5
Compressed Length 18.29
Cylinder Color Silver
Cylinder Finish Cadmium Plated
Cylinder Material Steel
Damping Type Oil
Extended Length 23.46
Front Spring Rate 550
Gas Charged Yes
Grade Type Performance
Includes Bump Stop Yes
Internal Construction Type Single Tube
Lower Mount Type Bar Pin
Material Steel, Aluminum
Maximum Lift 2.75
Maximum Ride Height Raising Distance 2.75
Minimum Lift 0
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Adjustable Ride Height Yes
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT, 97720P - 09-24 F150 2/4WD 04-08 F150 4WD REAR 2.5 VS PB PAIR, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 96518 - 09-24 F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Remote Reservoir Yes
Reservoir Style Remote
Self-Leveling No
Service Parts 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT, 252001 - 2.5 FIXED SPANNER WRENCH, 257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL, 252003 - SEAL INSTALL TOOL 2.5/3.0, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 611019 - COILOVER HARDWARE KIT PAIR
Shaft Diameter 0.875
Shock Absorber Body End Measuring Point Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point Flat on Bar Pin
Spring Color Black
Spring Material Steel
Spring Rate Type Linear
Travel Length 5.17
Upper Mount Type Mounting Plate
Valving Type Digressive
Country of Origin US
Condition New
