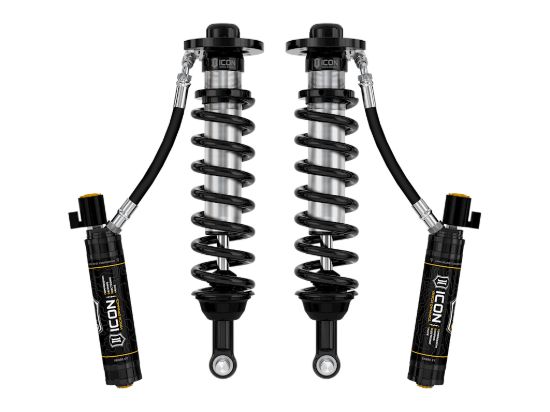

ICON Vehicle Dynamics Coilover Set - 91831E

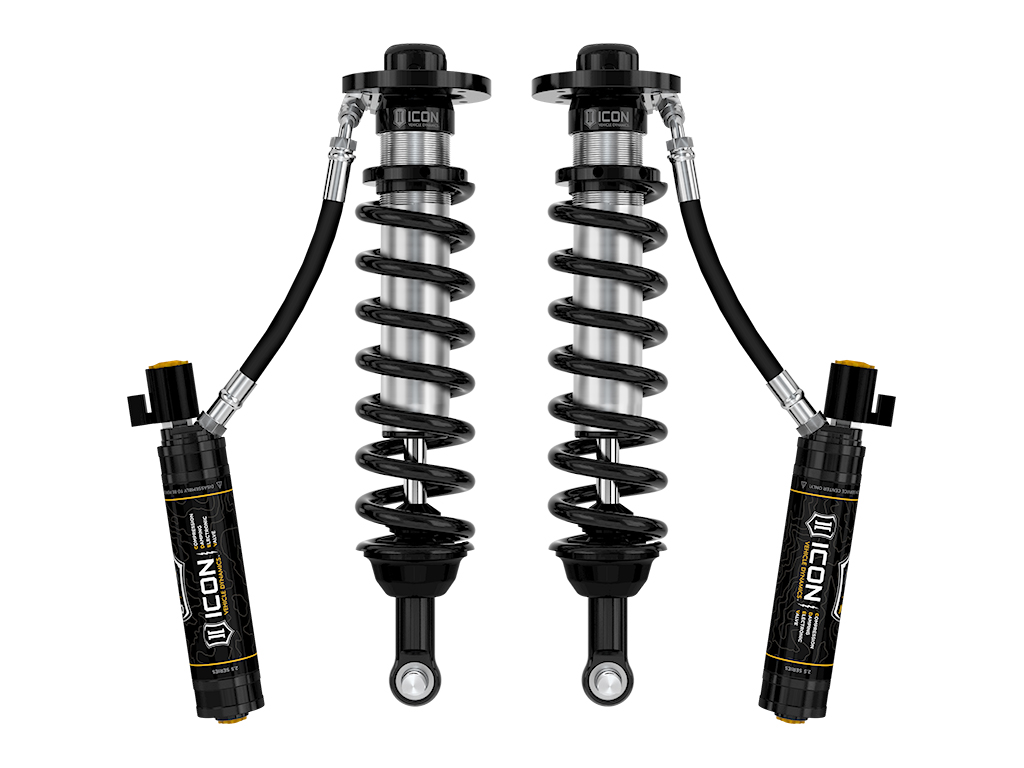

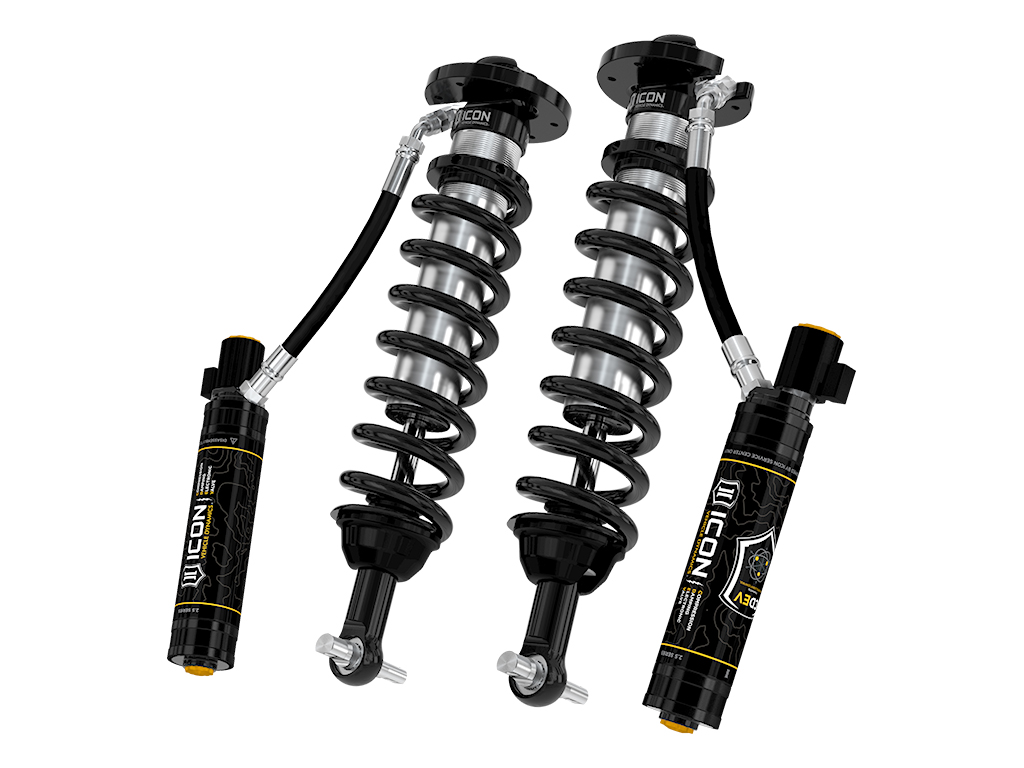

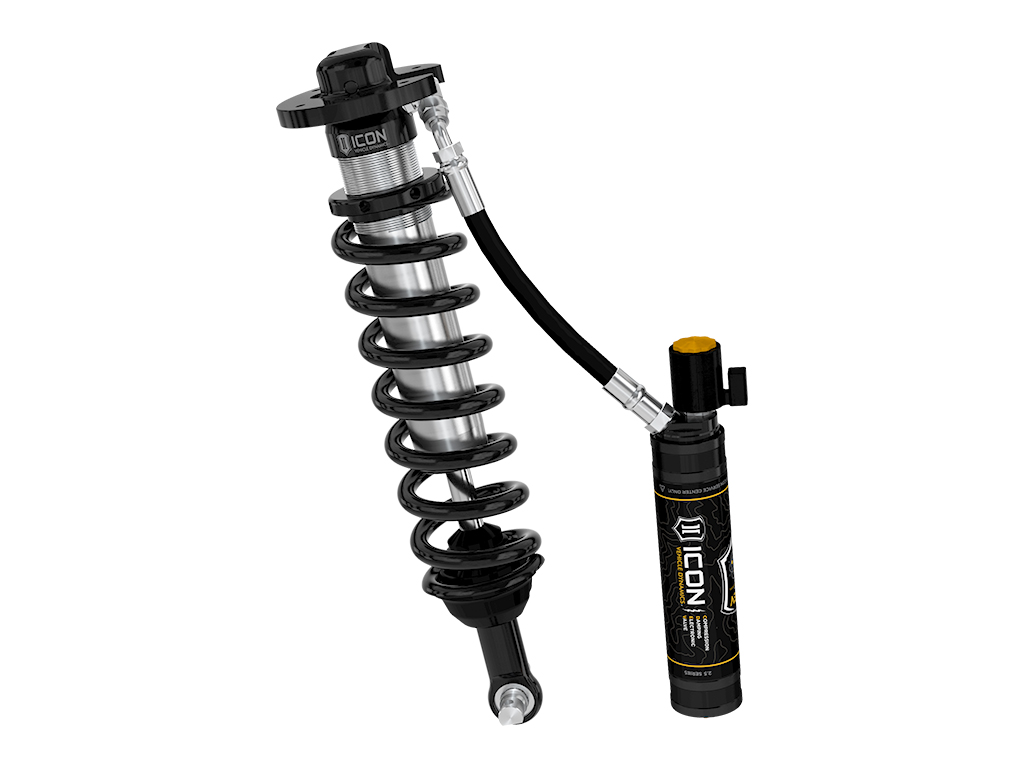

22-23 FORD F150 LIGHTNING LOWERED FRONT 2.5 VS RR CDEV COILOVER KIT

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 91831E

Old price: $3,057.55

Price: $2,911.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Experience unmatched performance with the ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with CDEV, the ultimate upgrade for your 2022-2023 Ford F-150 Lightning. These coilovers deliver an aggressive stance, lower center of gravity, and unparalleled handling characteristics, thanks to their adjustable front lowered height range of 0-2" under stock. With ICON's vehicle specific shock length, valving, and the larger 2.5" shock body with increased piston area, you will enjoy maximum wheel travel, exceptional ride quality, and superior suspension performance that surpasses stock components.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Upper Mount Type	Mounting Plate
Valving Type	Digressive
Active or Passive Suspension	Active
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Adjustable Ride Height	Yes
Assembled	Yes
Body Diameter	2.5
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	Yes
Compressed Length	17.37
Cylinder Color	Silver
Cylinder Finish	Cadmium Plated
Cylinder Material	Steel
Damping Adjustment Type	Electronic
Damping Type	Oil
Dust Shield Included	No
Extended Length	22.54
Front Spring Rate	550
Gas Charged	Yes
Grade Type	Performance
Includes Bump Stop	Yes
Internal Construction Type	Single Tube
Lower Mount Type	Bar Pin
Material	Steel, Aluminum
Maximum Drop	2
Maximum Ride Height Lowering Distance	2
Minimum Drop	0
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 12.00" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	20x9" with 6” Backspace / 25mm Offset
Remote Reservoir	Yes
Reservoir Style	Remote
Self-Leveling	No
Shaft Diameter	0.875
Shock Absorber Body End Measuring Point	Top of Upper Mount Plate
Shock Absorber Rod End Measuring Point	Flat on Bar Pin
Spring Color	Black
Spring Material	Steel
Spring Rate Type	Linear
Travel Length	5.17
Country of Origin	US
Condition	New
