ICON Vehicle Dynamics Suspension Lift Kit - K40003

Name: ICON Vehicle Dynamics Suspension Lift Kit - K40003
SKU: K40003
Price: 4921.77 USD
Availability: OutOfStock

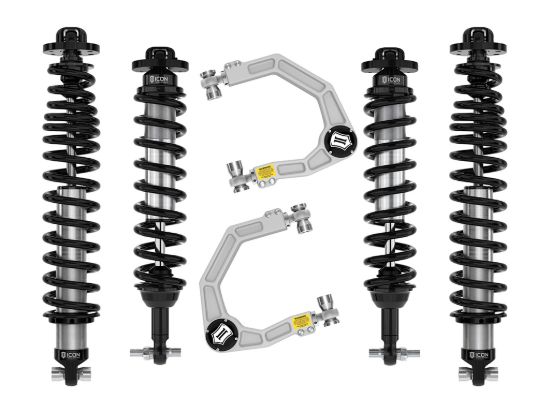

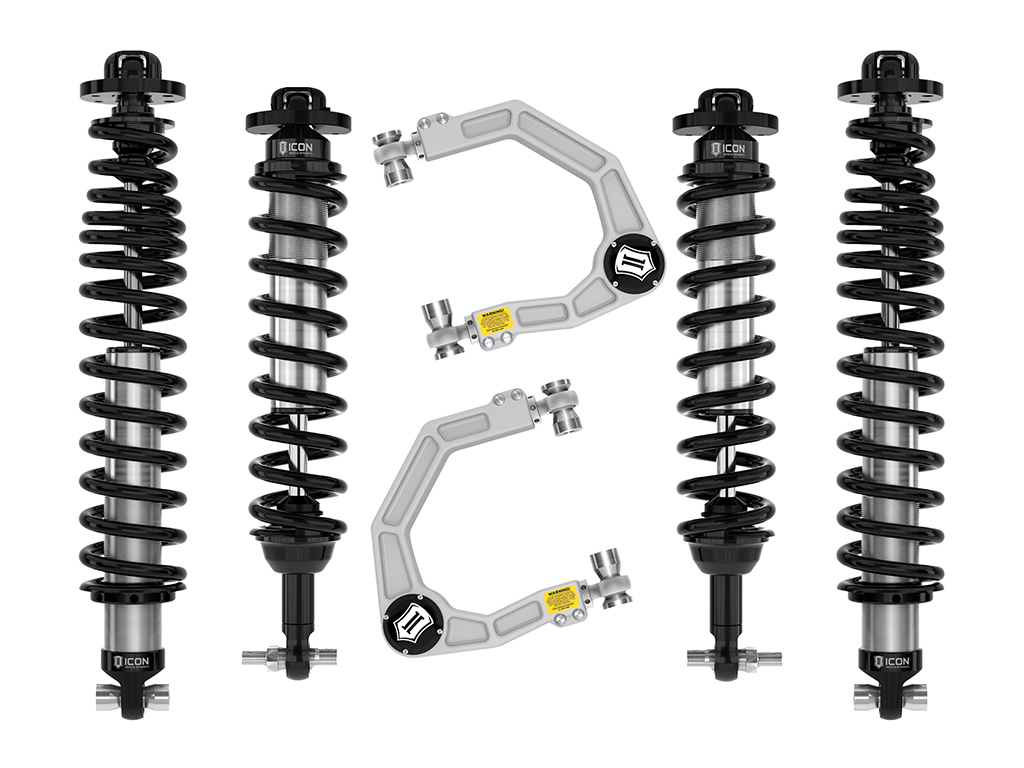

21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 3 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K40003

Old price: $5,167.86

Price: $4,921.77

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The ICON Vehicle Dynamics Stage 3 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved internal reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package.

Note: OEM Wheels & Tires Fitment: No

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift Rear	3
Minimum Lift Front	3
Recommended Aftermarket Tires	35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Maximum Lift	4
Maximum Lift Front	4
Spring Color	Black
Coil Spring End 1 Type	Closed
Coil Spring End 2 Type	Closed
Reservoir Style	Internal
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
OEM Wheels & Tires Fitment	No
Active or Passive Suspension	Passive
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 45212 - 21-23 BRONCO XD TIE ROD KIT, 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT, 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL, 198001 - BILLET SPANNER WRENCH KIT, 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
Front Spring Rate Type	Linear
AAP_UDA_22	1
AAP_UDA_4	55
Coils Quantity Front	2
Coils Quantity Rear	2
Minimum Lift Rear	2
Country of Origin	US
Condition	New
