ICON Vehicle Dynamics Suspension Lift Kit - K40004

Name: ICON Vehicle Dynamics Suspension Lift Kit - K40004
SKU: K40004
Price: 5893.87 USD
Availability: OutOfStock

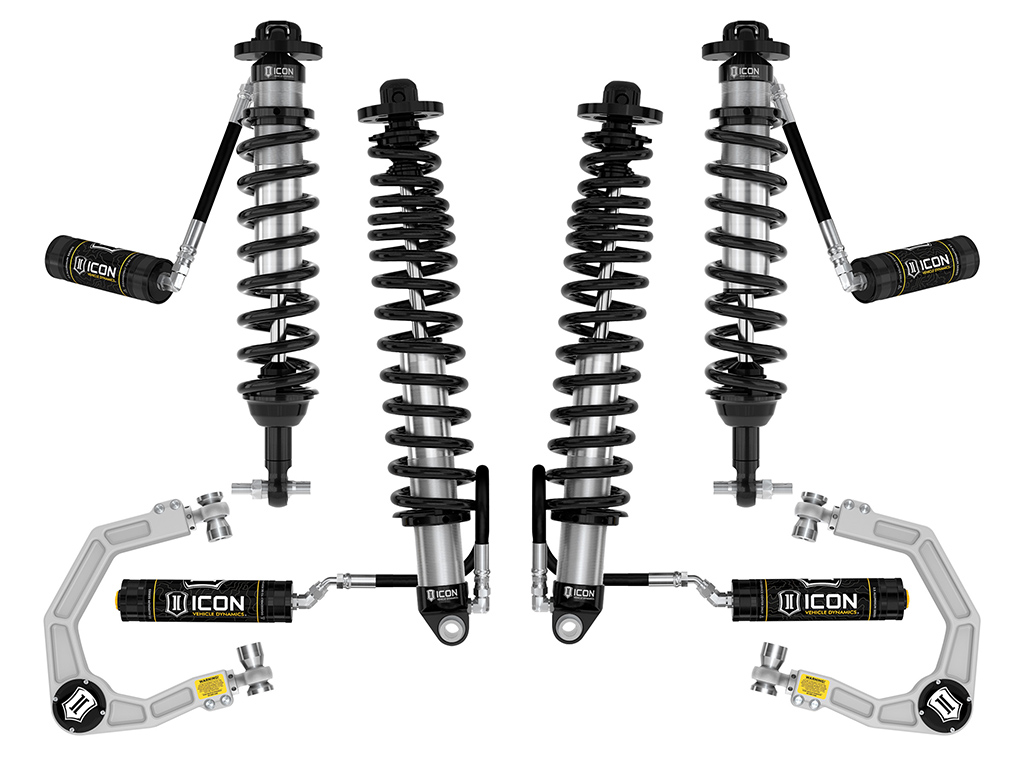

21-23 BRONCO NON-SASQUATCH 3-4" LIFT STAGE 4 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K40004

Old price: $6,188.57

Price: $5,893.87

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

The ICON Vehicle Dynamics Stage 4 Suspension System for the 2021-2023 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4” of front lift and 2-3” of rear lift over stock 4-door Broncos without the Sasquatch Package. To provide for sustained shock performance at speed through rough terrain, Stage 4 adds remote reservoirs to the ICON Coilovers. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade.

Note: OEM Wheels & Tires Fitment: No

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Coils Quantity Front	2
Coils Quantity Rear	2
Minimum Lift Rear	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift Rear	3
Minimum Lift Front	3
Recommended Aftermarket Tires	35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
Maximum Lift	4
Maximum Lift Front	4
Adjustable Rebound	No
OEM Wheels & Tires Fitment	No
Active or Passive Suspension	Passive
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Reservoir Style	Remote
Coil Spring End 1 Type	Square
Coil Spring End 2 Type	Square
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
Adjustable Damping	No
Adjustable Compression	No
Spring Color	Black
Recommended Aftermarket Wheels	ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Add-On Part	191014 - .25" COLLAR SPANNER PIN WRENCH, 198001 - BILLET SPANNER WRENCH KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 42000 - 21-23 BRONCO HIGH CLEARANCE CRASH BAR KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL, 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL, 44200T - 21-23 BRONCO REAR ADJ TRACK BAR KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 611072 - 21-23 BRONCO HOSE ROUTE KIT OEM REAR LINK 1.9", 45212 - 21-23 BRONCO XD TIE ROD KIT
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
