ICON Vehicle Dynamics Suspension Lift Kit - K53001

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
05-15 TACOMA 0-3.5"/16-23 0-2.75" STAGE 1 SUSPENSION SYSTEM
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K53001
Old price: $2,005.13
$1,909.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

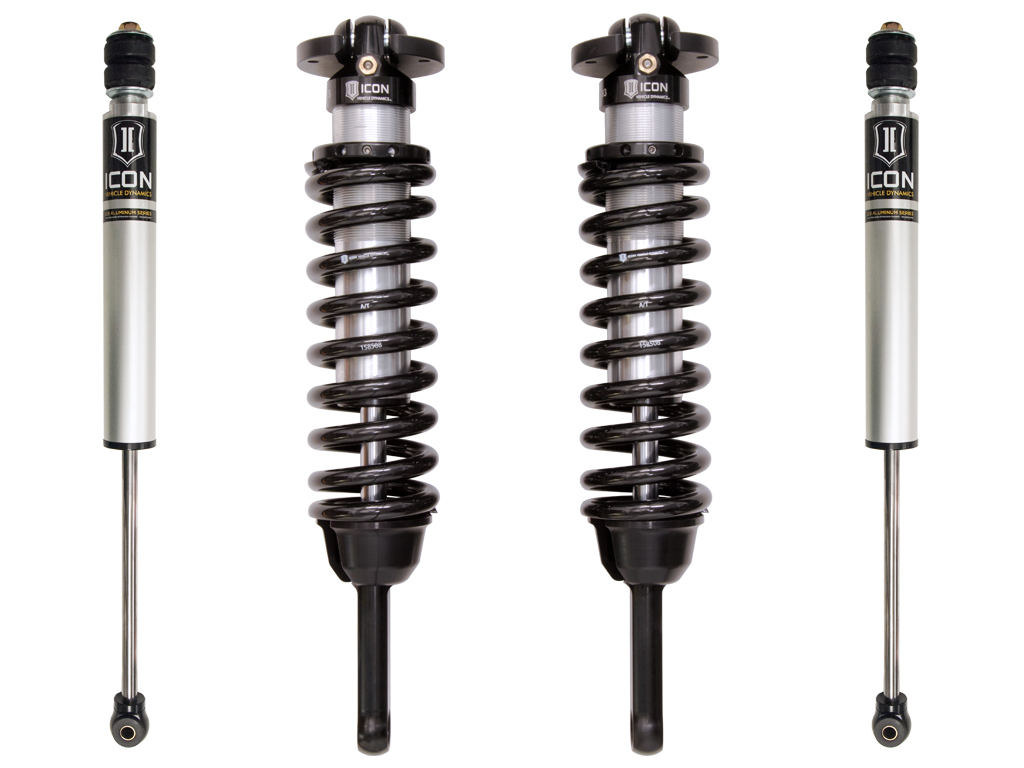

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 1 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are height adjustable from 0-3.5” of lift on 2005-2015 or 0-2.75” on 2016-2023 models allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2005-2023 Toyota Tacoma Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_4 55
Add-On Part 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 51051 - 05-23 TACOMA/03-24 T4R/07-14 FJ FRONT SWAY BAR LINK KIT
AAP_UDA_12 EA
AAP_UDA_22 1
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front 2
Coils Quantity Front 2
Front Spring Rate Type Linear
Grade Type Performance
Maximum Lift 3.5
Mounting Hardware Included Yes
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Shocks Included Yes
Spring Color Black
Spring Material Steel
Spring Rate 650
Adjustable Damping No
Bushings Included Yes
California Prop 65 Warning Yes
Country of Origin US
Condition New
🚗 Compatible with
19 vehicles are compatible with this product · 2005–2023
