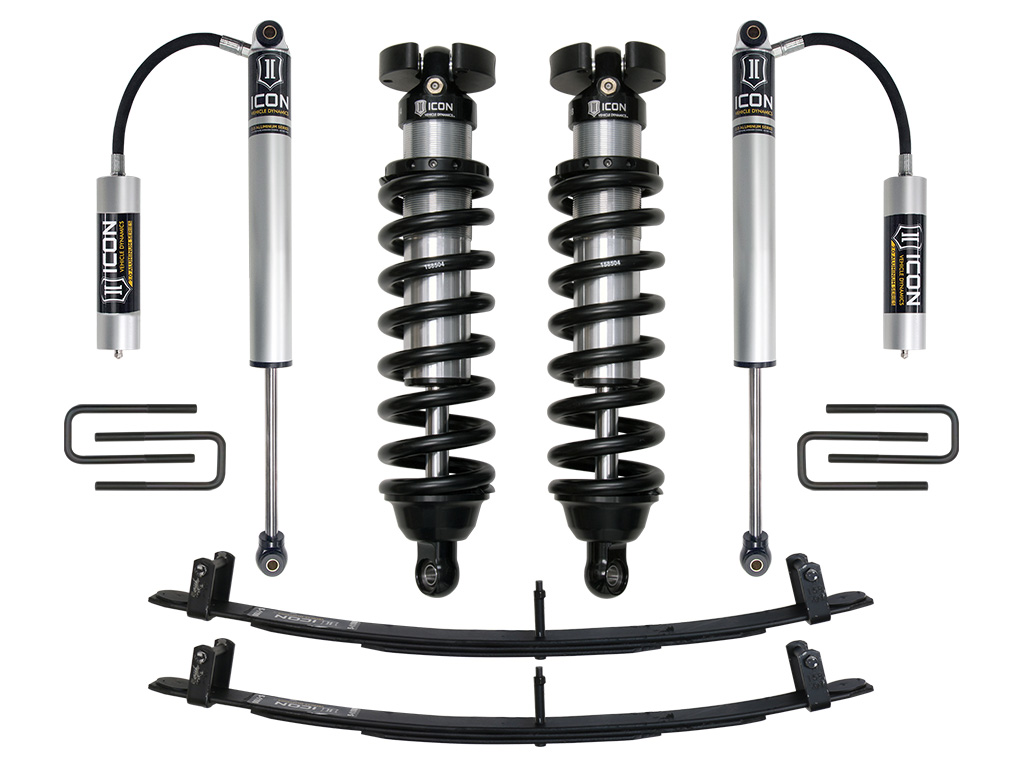

ICON Vehicle Dynamics Suspension Lift Kit - K53012

95.5-04 TACOMA 0-3" STAGE 2 SUSPENSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53012

Old price: $2,527.14

Price: $2,406.79

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Dynamics Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 2 system includes vehicle-specific tuned 2.5” coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series remote reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 96-04 Toyota Tacoma 4WD/PreRunner Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Front Shock Body Diameter	2.5
Maximum Lift	3
Leaf Spring Leaf Quantity	3
Maximum Lift Front	3
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Spring Rate	650
Spring Color	Black
Front Reservoir Style	Internal
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
Grade Type	Performance
Rear Reservoir Style	Remote
Spring Material	Steel
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Mounting Hardware Included	Yes
Shocks Included	Yes
California Prop 65 Warning	Yes
OEM Wheels & Tires Fitment	Yes
AAP_UDA_22	1
AAP_UDA_4	55
Minimum Lift Front	0
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 158508 - COIL SPRING 1400.0300.0700 BLACK, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT
Recommended Aftermarket Wheels	ICON Alloys - 20" x 9" with 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset, ICON Alloys - 18" x 9" with 5" Backspace / 0mm Offset
Maximum Lift Rear	1.5
Coils Quantity Front	2
Coil Quantity Front	2
Rear Shock Body Diameter	2
Front Spring Rate Type	Linear
Rear Spring Rate Type	Linear
Country of Origin	US
Condition	New
