ICON Vehicle Dynamics Suspension Lift Kit - K53131

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
96-02 4RUNNER 0-3" STAGE 1 SUSPENSION SYSTEM
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K53131
Old price: $2,005.13
$1,909.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

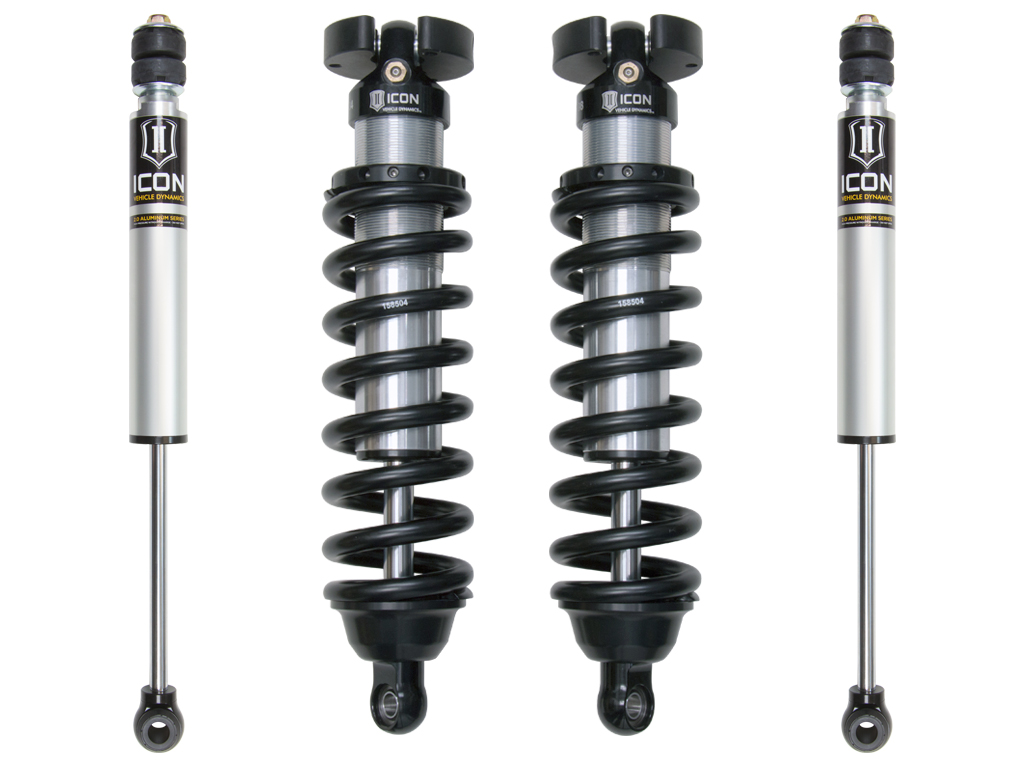

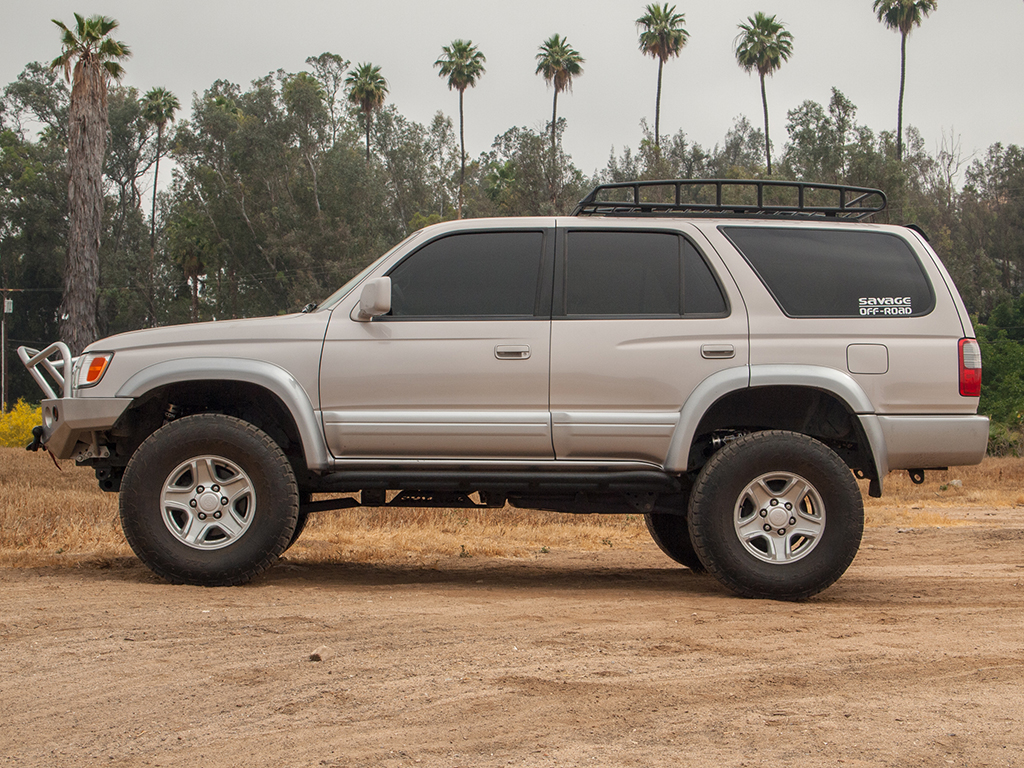

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor decades ago, and Toyota’s reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the “3rd Gen” platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 1 suspension system on and off-road performance is significantly improved with 2.5 VS Series coilovers and 2.0 Aluminum Series rear shocks. These components feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The 2.5 VS Series coilovers are height adjustable from 0-3” of lift, allowing the use of larger, more aggressive wheel and tire combinations. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 1 suspension system is an excellent choice for those drivers looking to enhance the handling characteristics of their 3rd Gen on the road while increasing overall performance in the dirt.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Minimum Lift Front 0
Coils Quantity Front 2
Coil Quantity Front 2
Rear Shock Body Diameter 2
Front Shock Body Diameter 2.5
Maximum Lift 3
Maximum Lift Front 3
Recommended Aftermarket Tires 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required)
Spring Rate 650
Spring Color Black
Rear Reservoir Style Emulsion
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset
Front Reservoir Style Internal
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Active or Passive Suspension Passive
Grade Type Performance
Spring Material Steel
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included Yes
Mounting Hardware Included Yes
Shocks Included Yes
California Prop 65 Warning Yes
OEM Wheels & Tires Fitment Yes
Front Spring Rate Type Linear
Add-On Part 53015 - 96-02 4RUNNER 1" REAR COIL SPRING KIT, 58500DJ - 96-04 TACOMA/96-02 4RNR BILLET UCA DJ KIT, 614700 - 2.0 SHOCK BOOT KIT (EACH), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 158508 - COIL SPRING 1400.0300.0700 BLACK, 58400DJ - 96-04 TACOMA/96-02 4RNR TUBULAR UCA DJ KIT, 51045 - TOYOTA .25” BUMP STOP SPACER KIT, 198001 - BILLET SPANNER WRENCH KIT
Country of Origin US
Condition New
