ICON Vehicle Dynamics Suspension Lift Kit - K53194

22-25 TUNDRA 1.25-3.5" STAGE 4 SUSPENSION SYSTEM BILLET

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53194

Old price: $3,808.15

Price: $3,626.81

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

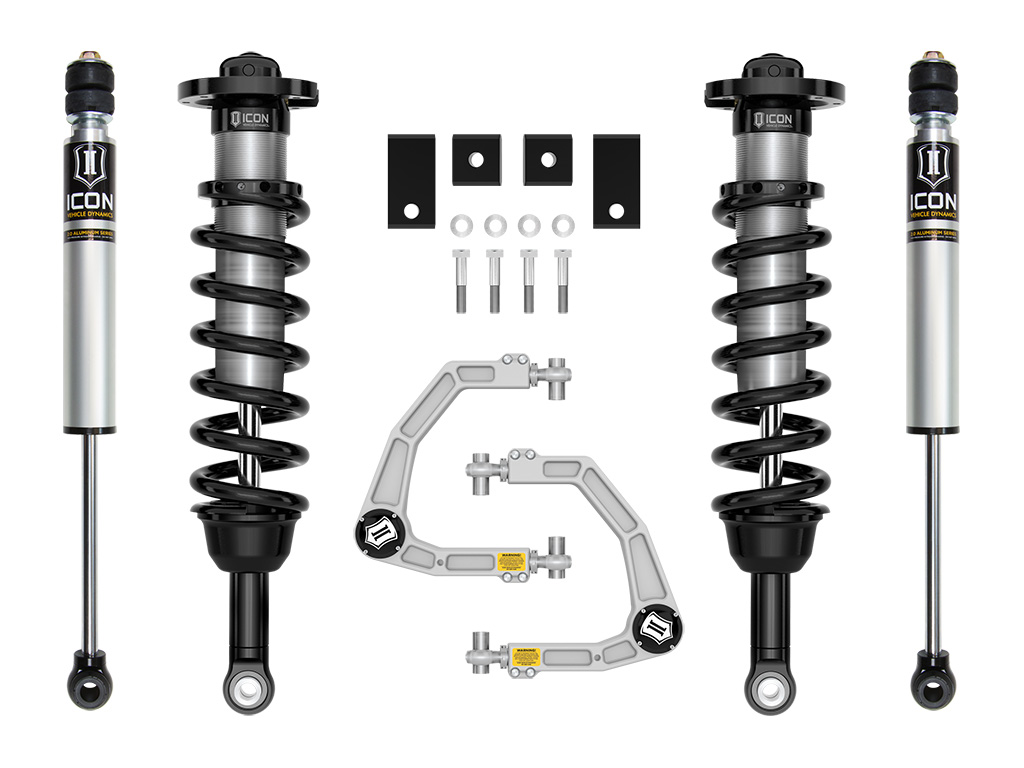

The ICON Vehicle Dynamics Stage 4 complete suspension system for the 2022-2025 Toyota Tundra builds upon the ICON threaded-body V.S. 2.5 Series Coilovers with the addition of adjustable billet aluminum front upper control arms. This system offers improved on- and off-road performance as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the internal reservoir coilover shock and billet control arm combo, a sway bar drop kit for the front of the truck is included along with our proven 2.0 nitrogen charged monotube shocks with internal reservoirs for the rear.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Control Arm	yes
California Prop 65 Warning	Yes
Minimum Lift Front	.75
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Coils Quantity Front	2
Coil Quantity Front	2
Rear Shock Body Diameter	2
Front Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Front Reservoir Style	Internal
Rear Reservoir Style	Internal
Reservoir Style	Internal
Grade Type	Performance
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
Front Spring Rate Type	Linear
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Country of Origin	US
Condition	New
