ICON Vehicle Dynamics Suspension Lift Kit - K53198T

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53198T
SKU: K53198T
Price: 5067.76 USD
Availability: OutOfStock

22-25 TUNDRA 2-3.5" STAGE 8 SUSPENSION SYSTEM TUBULAR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53198T

Old price: $5,321.15

Price: $5,067.76

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

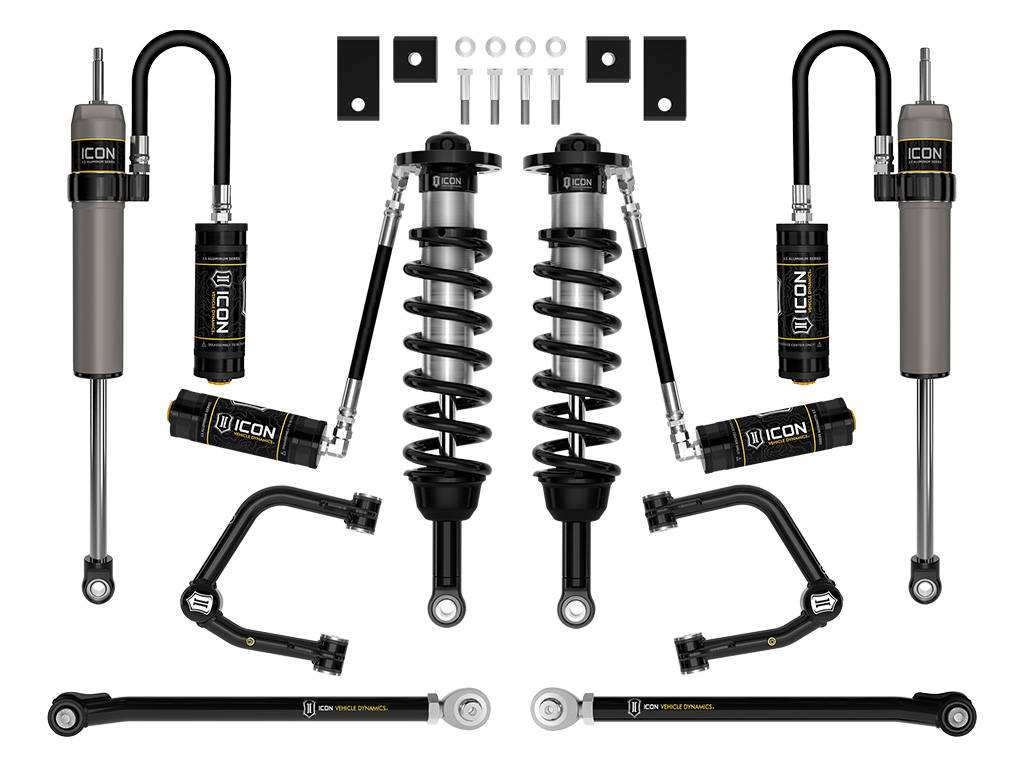

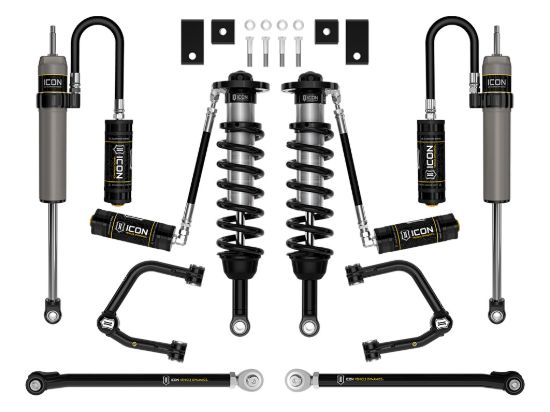

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2022-2025 Toyota Tundra helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series rear remote reservoir shocks.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
California Prop 65 Warning	Yes
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Coils Quantity Front	2
Coil Quantity Front	2
Minimum Lift Front	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Spring Color	Black
Grade Type	Performance
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
OEM Wheels & Tires Fitment	Yes
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Compression	No
Adjustable Control Arm	No
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT
Adjustable Damping	No
Adjustable Rebound	No
Active or Passive Suspension	Passive
Front Spring Rate Type	Linear
Country of Origin	US
Condition	New
