ICON Vehicle Dynamics Suspension Lift Kit - K53199TD

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53199TD
SKU: K53199TD
Price: 5346.55 USD
Availability: OutOfStock

22-25 TUNDRA 2-3.5" STAGE 9 SUSPENSION SYSTEM TUBULAR CDXS

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53199TD

Old price: $5,613.88

Price: $5,346.55

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

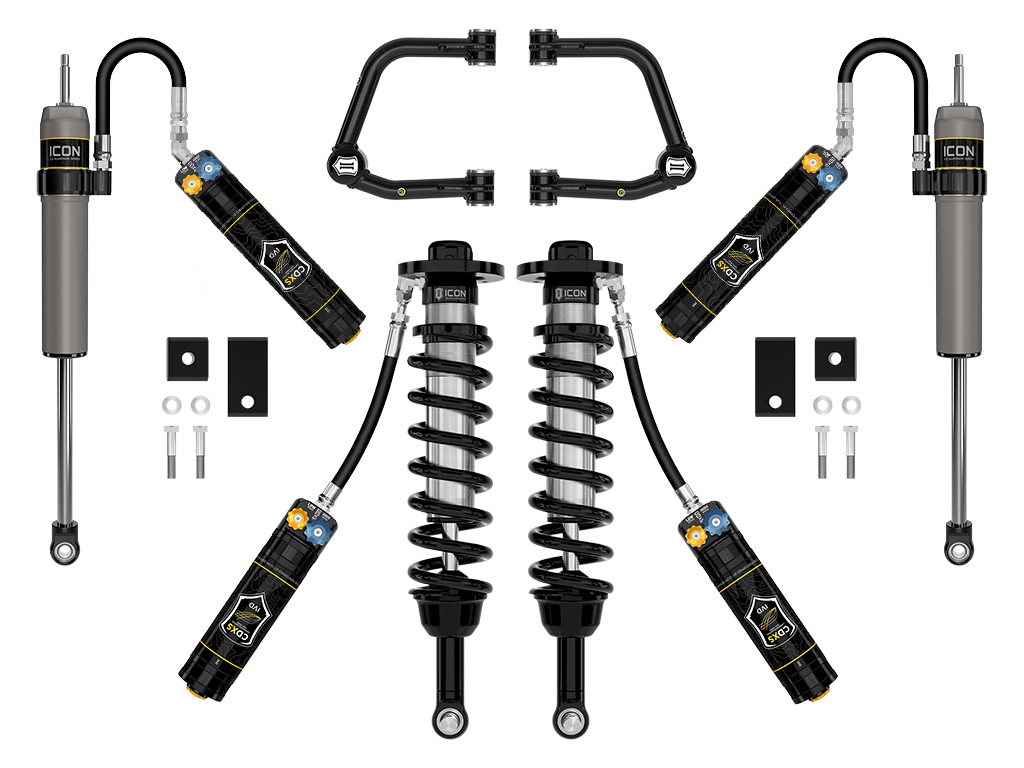

The ICON Vehicle Dynamics Stage 9 complete suspension system for the 2022-2025 Toyota Tundra upgrades front and rear shock absorbers to include Compression Damping Dual Speed (CDXS) for precisely dialing in your suspension performance. CDXS controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the CDXS equipped 2.5 Series coilovers and rear shocks, a tubular front upper control arm kit is included along with a front sway bar drop kit.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coils Quantity Front	2
Damping Adjustment Type	Dual Speed/Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3.5
Maximum Lift Front	3.5
Minimum Lift Front	2
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Remote
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	35" x 12.50" (Minor fender trimming and modifications may be required)
Recommended Aftermarket Wheels	17x8.5" w/ 5.75" Backspace / 25mm Offset
Reservoir Style	Remote
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	Yes
Adjustable Control Arm	No
Adjustable Damping	Yes
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT, 198001 - BILLET SPANNER WRENCH KIT, 56112 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 REAR FOAM BUMP STOP KIT, 56111 - 22-25 TUNDRA REAR HYD BUMP STOP KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 56113 - 22-24 TUNDRA/23-24 SEQUOIA FRONT FOAM BUMP STOP KIT, 55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
Country of Origin	US
Condition	New
