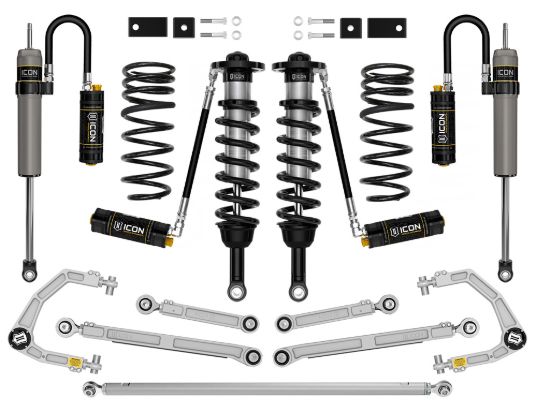

ICON Vehicle Dynamics Suspension Lift Kit - K53201S

Name: ICON Vehicle Dynamics Suspension Lift Kit - K53201S
SKU: K53201S
Price: 9021.86 USD
Availability: OutOfStock

22-25 TUNDRA 1.25-3.5" STAGE 11 SUSPENSION SYSTEM BILLET CDCV (TRD)

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K53201S

Old price: $9,472.95

Price: $9,021.86

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

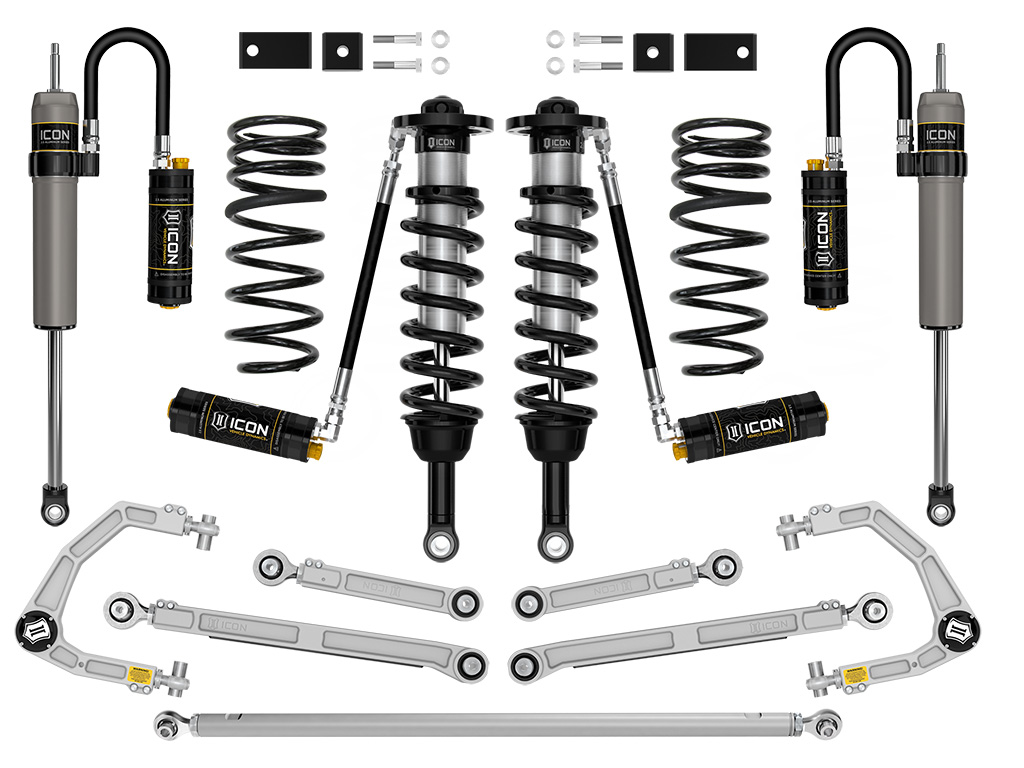

The ICON Vehicle Dynamics Stage 11 complete suspension system for the 2022-2025 Toyota Tundra builds upon the Stage 10 system with the addition of triple rate rear coils springs and an adjustable rear track bar. This system offers improved on- and off-road performance with adjustable compression damping, as well as improved alignment specs and increased front and rear-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the rear coils and track bar, a 2.5 Series CDCV remote reservoir front coilover shock and billet aluminum front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series CDCV rear remote reservoir shocks with billet upper and lower rear links.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included	Yes
Adjustable Compression	Yes
Adjustable Control Arm	yes
Adjustable Damping	Yes
California Prop 65 Warning	Yes
Minimum Lift Front	.75
Maximum Lift Rear	1.25
Coils Quantity Front	2
Coils Quantity Rear	2
Coil Quantity Front	2
Front Shock Body Diameter	2.5
Rear Shock Body Diameter	2.5
Maximum Lift	3.5
Maximum Lift Front	3.5
Spring Color	Black
Damping Adjustment Type	Manual
Grade Type	Performance
Rear Spring Rate Type	Progressive Triple Rate
Front Reservoir Style	Remote
Rear Reservoir Style	Remote
Reservoir Style	Remote
Spring Material	Steel
Mounting Hardware Included	Yes
Shocks Included	Yes
Front Spring Rate Type	Linear
AAP_UDA_12	EA
Add-On Part	55156 - 22-25 TUNDRA/23-25 SEQUOIA/24-25 GX550 DIFF DROP KIT, 198001 - BILLET SPANNER WRENCH KIT, 55164 - 22-25 TUNDRA/23-24 SEQUOIA ALUMINUM SKID PLATE SPACER KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25), 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191014 - .25" COLLAR SPANNER PIN WRENCH, 55153 - 22-25 TUNDRA/23-25 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Rebound	No
Active or Passive Suspension	Passive
Country of Origin	US
Condition	New
