ICON Vehicle Dynamics Suspension Lift Kit - K63141

Name: ICON Vehicle Dynamics Suspension Lift Kit - K63141
SKU: K63141
Price: 2860.26 USD
Availability: OutOfStock

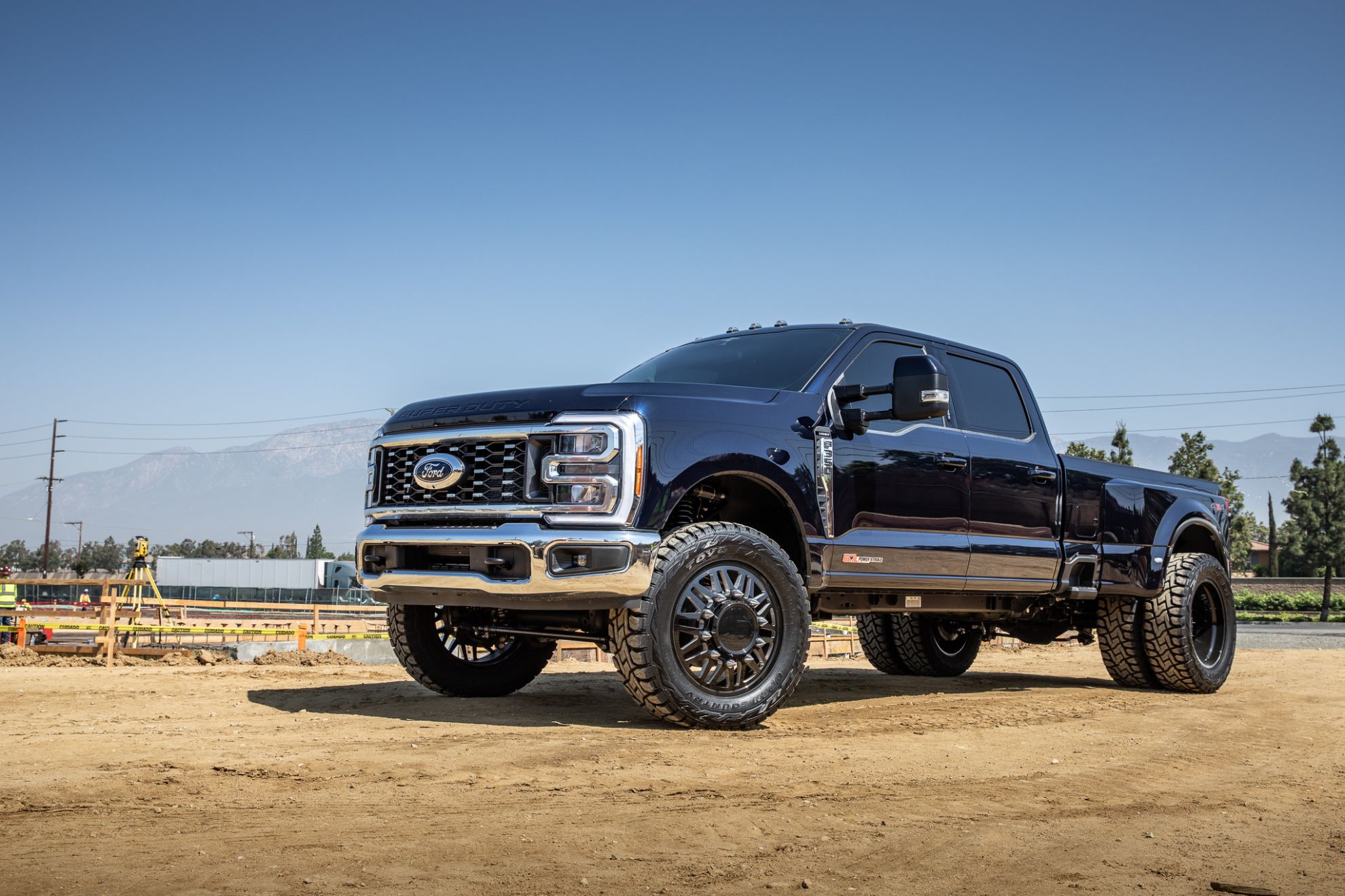

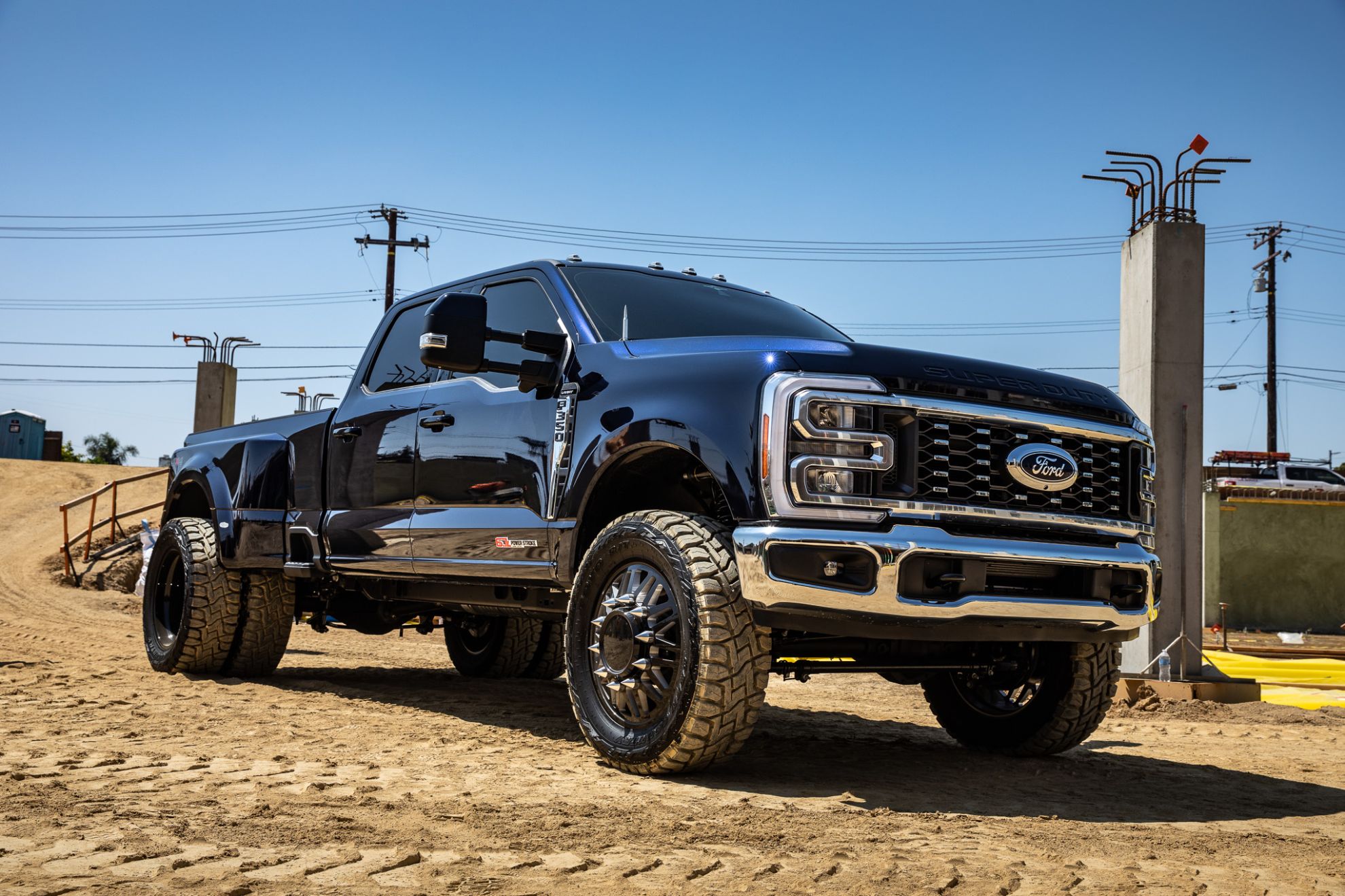

17-23 FORD F250/F350 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K63141

Old price: $3,003.27

Price: $2,860.26

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

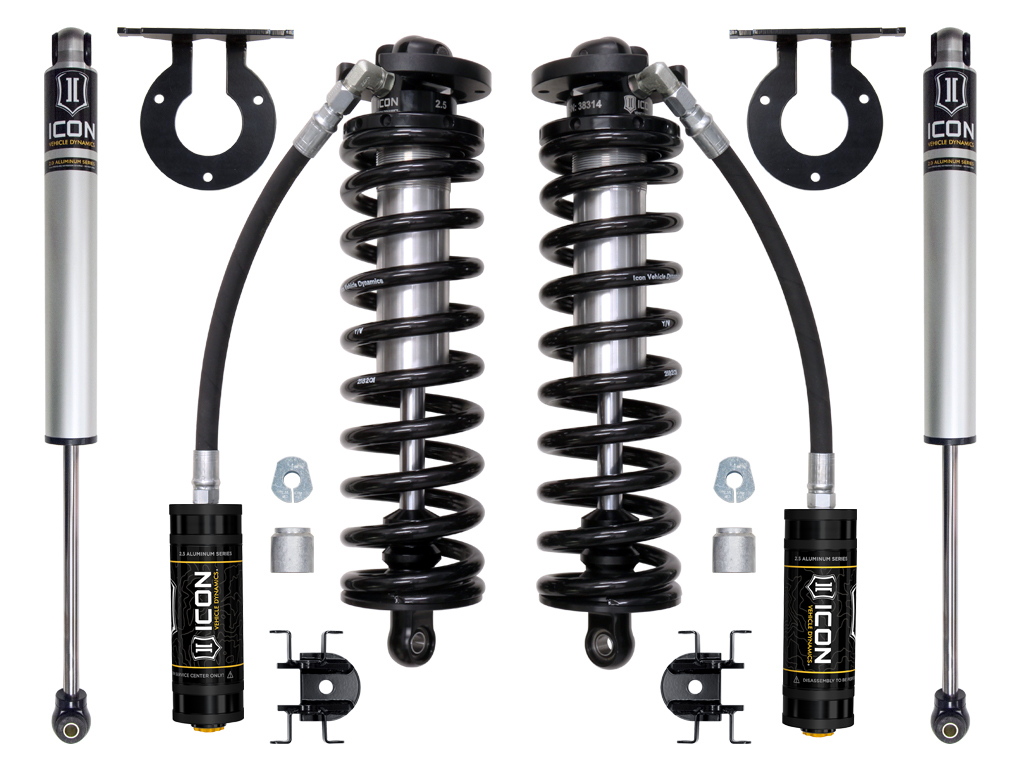

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 pickup trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Add-On Part	198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Coil Spring Material	Steel
Coils Quantity Front	2
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3
Maximum Lift Front	3
Maximum Lift Height Front	3
Minimum Lift Front	2.5
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Internal
Rear Shock Body Diameter	2
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Country of Origin	US
Condition	New
