ICON Vehicle Dynamics Suspension Lift Kit - K63141L

Name: ICON Vehicle Dynamics Suspension Lift Kit - K63141L
SKU: K63141L
Price: 3989.14 USD
Availability: OutOfStock

17-23 FORD F250/F350 2.5-3" STAGE 1 COILOVER CONVERSION SYSTEM W EXPANSION PACK

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K63141L

Old price: $4,188.61

Price: $3,989.14

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

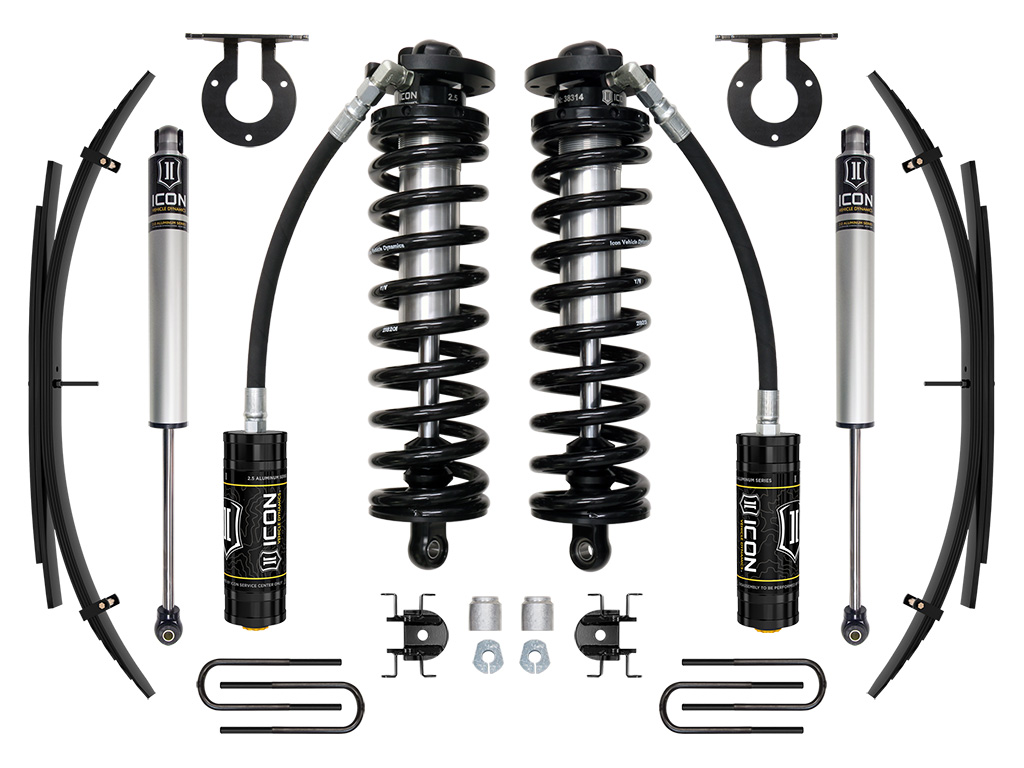

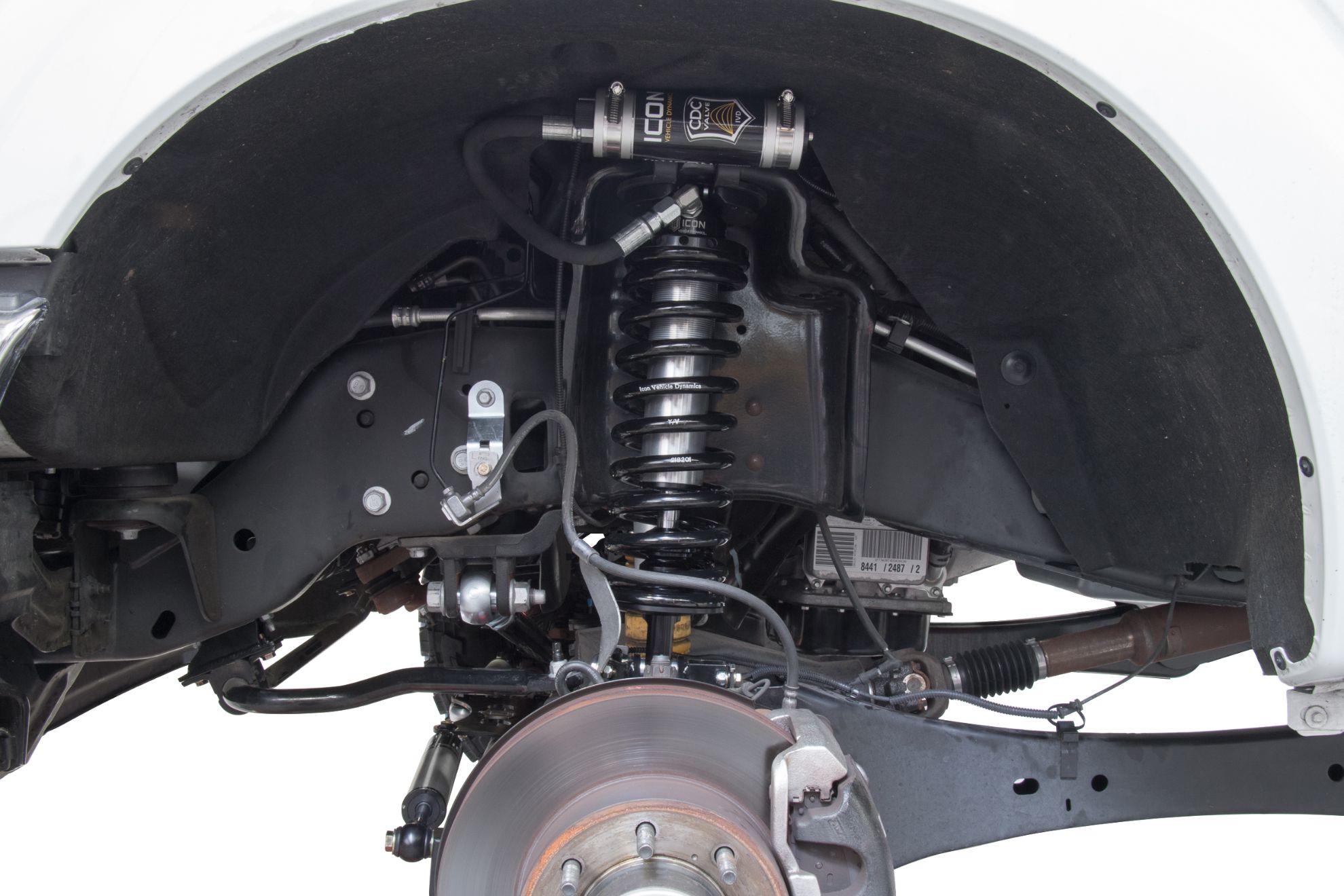

The ICON coilover conversion suspension system is a great way to lift your 4WD 2017-2023 Ford F-250/F-350 Super Duty while improving ride quality and performance. This entry level system is great for towing, rough construction site terrains, and country dirt roads all while keeping a smooth highway feel. ICON's Stage 1 System is comprised of 2.5 Series remote reservoir coilovers that are adjustable from 2.5-3” or 3.25-3.75 of front lift over stock (depending on year model and option package), alignment cams for adding caster, rear leaf spring expansion packs with blocks and U-bolts for a more compliant ride and reduced axle wrap, and ICON 2.0 Aluminum Series internal reservoir rear shocks. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can rest assured you have the best suspension solution on the market.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Coil Spring Material	Steel
Coils Quantity Front	2
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Leaf Spring Color	Black
Leaf Spring Leaf Quantity	7
Leaf Spring Material	Steel
Maximum Lift	3
Maximum Lift Front	3.75
Maximum Lift Height Front	3.75
Maximum Lift Height Rear	.5
Maximum Lift Rear	2
Minimum Lift Front	2.5
Mounting Hardware Included	Yes
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT, 64038 - 17-25 FSD ADJ TRACK BAR KIT, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT, 611081 - F-SERIES DYNAMIC HEADLAMP REAR SENSOR KIT
Adjustable Compression	No
Adjustable Damping	No
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Internal
Rear Shock Body Diameter	2
Recommended Aftermarket Tires	35" x 12.50" (37" x 12.50" tires may fit but fender trimming and modifications will be required.)
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Country of Origin	US
Condition	New
