ICON Vehicle Dynamics Suspension Lift Kit - K63145

Name: ICON Vehicle Dynamics Suspension Lift Kit - K63145
SKU: K63145
Price: 7229.09 USD
Availability: OutOfStock

17-22 FORD F-250/F-350 2.5-3" STAGE 5 COILOVER CONVERSION SYSTEM

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: K63145

Old price: $7,590.53

Price: $7,229.09

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

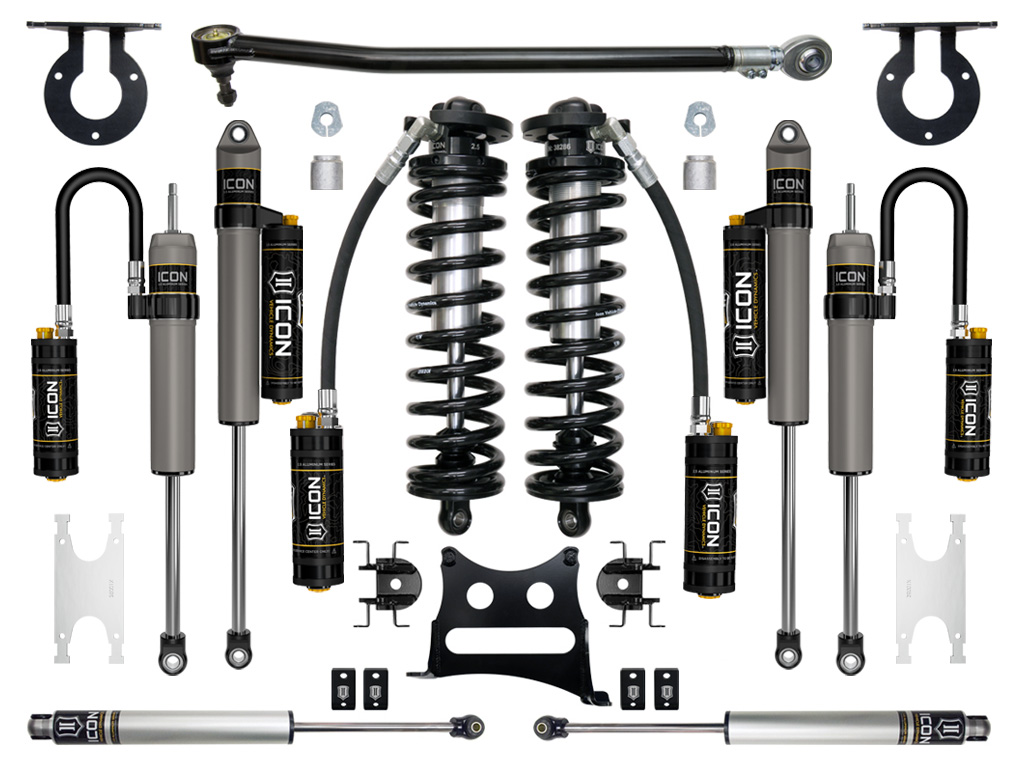

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2022 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name	Attribute value
Add-On Part	191014 - .25" COLLAR SPANNER PIN WRENCH, 64039 - 08-25 FSD TRACK BAR BUMP STEER BRACKET KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 198001 - BILLET SPANNER WRENCH KIT
Adjustable Compression	Yes
Adjustable Damping	Yes
Adjustable Rebound	No
Bushings Included	Yes
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil Quantity Front	2
Coil Spring Color	Black
Coil Spring Material	Steel
Coils Quantity Front	2
Damping Adjustment Type	Manual
Front Reservoir Style	Remote
Front Shock Body Diameter	2.5
Front Spring Rate Type	Linear
Grade Type	Performance
Maximum Lift	3
Maximum Lift Front	3.75
Maximum Lift Height Front	3.75
Minimum Lift Front	1.5
Mounting Hardware Included	Yes
OEM Wheels & Tires Fitment	Yes
Rear Reservoir Style	Piggyback
Rear Shock Body Diameter	2.5
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Active or Passive Suspension	Passive
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Shocks Included	Yes
Spring Color	Black
Spring Material	Steel
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Country of Origin	US
Condition	New
