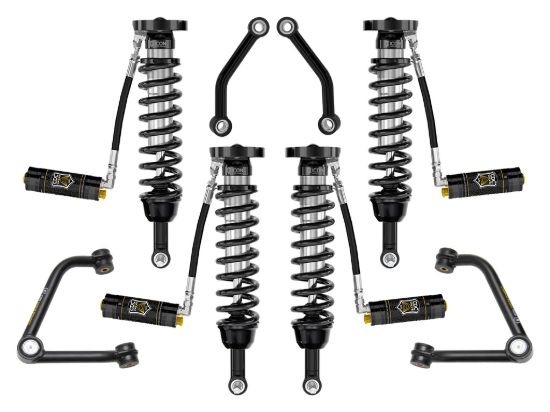

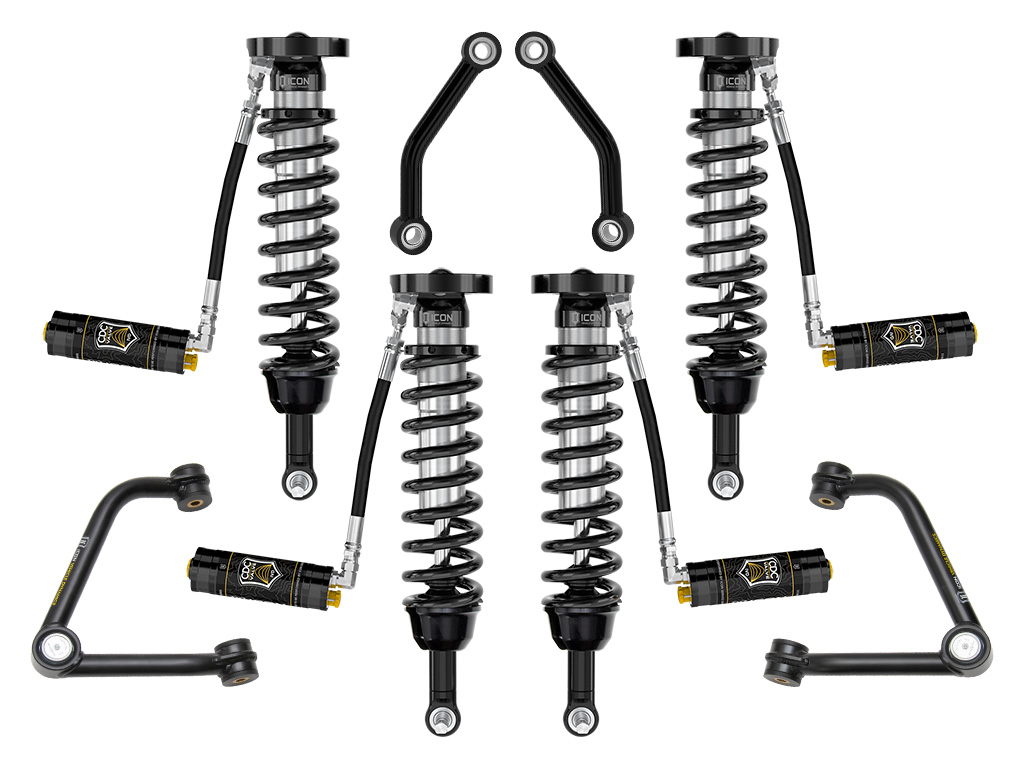

ICON Vehicle Dynamics Suspension Lift Kit - K73104T

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-23 GM SUV 2.5-3.25" STAGE 4 SUSPENSION SYSTEM TUBULAR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K73104T
Old price: $6,957.09
$6,625.79
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Dynamics 2021-2023 Chevrolet Tahoe/Suburban and 2021-2023 GMC Yukon/Yukon XL suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the vehicle platform’s suspension and addressed any areas where performance could be extracted. This Stage 4 system includes vehicle-specific tuned front and rear 2.5 Series coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 2.5-3.25” of front lift and 3-4” of rear lift over stock for an aggressive stance and allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Series coilover shocks feature a vehicle-specific valving that balances the performance of the truck from front to rear. ICON's exclusive Compression Damping Control Valves are included for precisely dialing in your suspension performance. CDCV controls fluid flow under compression, allowing you to achieve the perfect tune whether driving on the street, slow-crawling through the rocks or mobbing across the desert at full throttle.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
Coils Quantity Front 2
Coils Quantity Rear 2
Minimum Lift Front 2
Adjustable Damping Yes
Adjustable Rebound No
Active or Passive Suspension Passive
Adjustable Compression Yes
Recommended Aftermarket Tires 33"x12.50" (Larger tires may fit but fender trimming and modifications may be required)
Recommended Aftermarket Wheels ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset, ICON Alloys - 17x8.5 w/ 4.75" Backspace / 0mm Offset, ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Damping Adjustment Type Manual
Grade Type Performance
Reservoir Style Remote
Spring Material Steel
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included Yes
Shocks Included Yes
California Prop 65 Warning Yes
OEM Wheels & Tires Fitment Yes
Front Spring Rate Type Linear
Rear Spring Rate Type Linear
Add-On Part 71022 - 21-23 GM RIDE HEIGHT SIMULATOR, 71021 - 19-23 GM ELECTRONIC SHOCK SIMULATOR, 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191013 - NIPPLE GREASING ADAPTER KIT, 191011 - TUBULAR UCA BILLET CAP SET
Maximum Lift Rear 4
Minimum Lift Rear 2.5
Maximum Lift 3.25
Bushings Included Yes
Spring Color Black
Maximum Lift Front 3.25
Country of Origin US
Condition New
🚗 Compatible with
12 vehicles are compatible with this product · 2021–2023
