ICON Vehicle Dynamics Suspension Lift Kit - K93123

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-23 FORD F150 2WD 0-3" STAGE 3 SUSPENSION SYSTEM
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: K93123
Old price: $3,441.66
$3,277.77
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

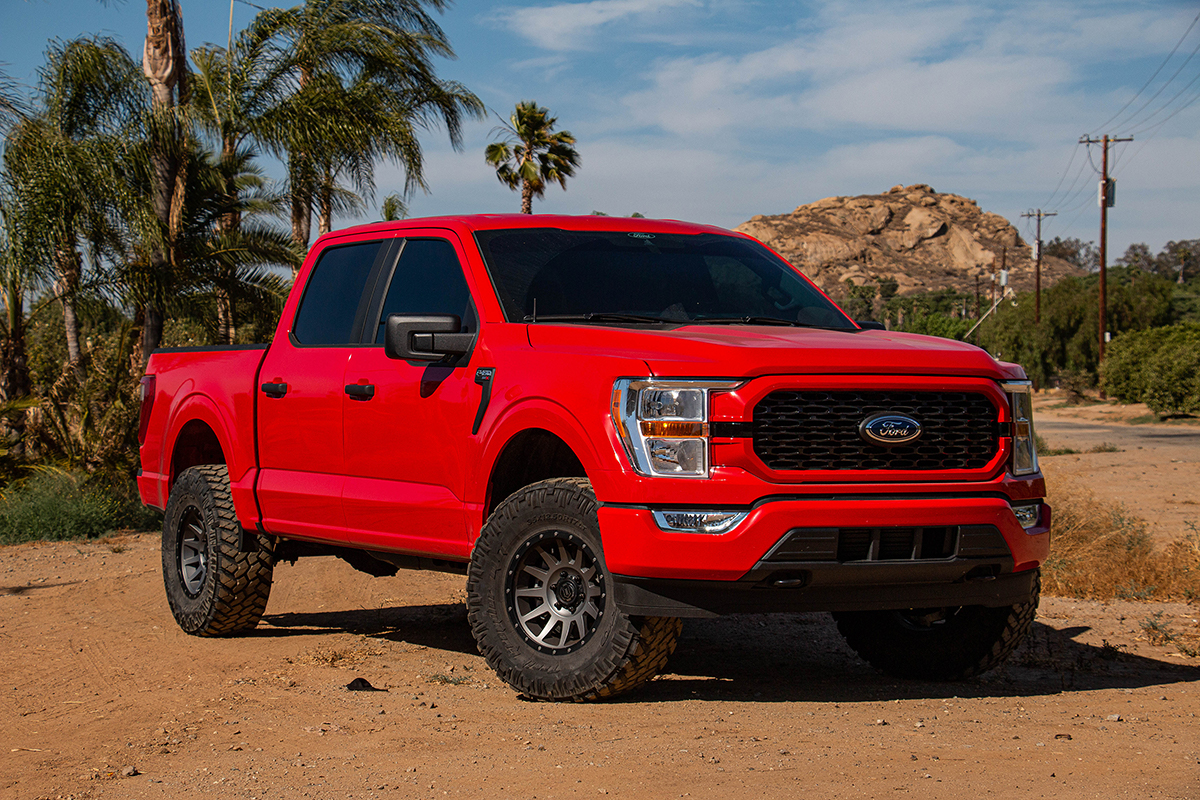

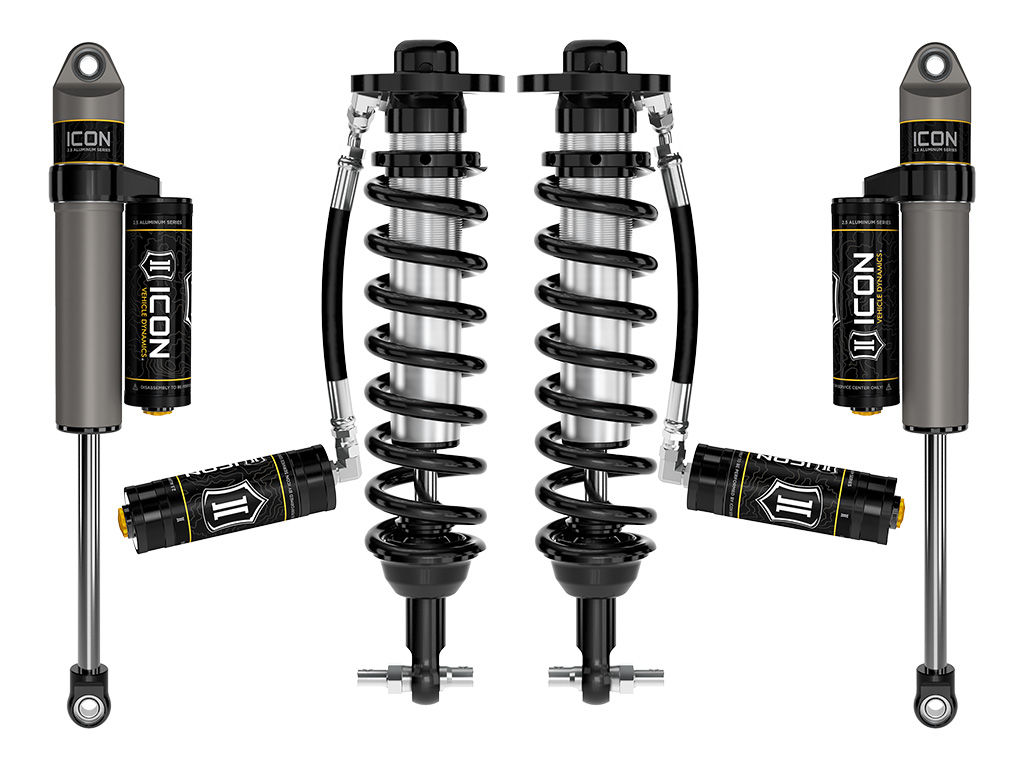

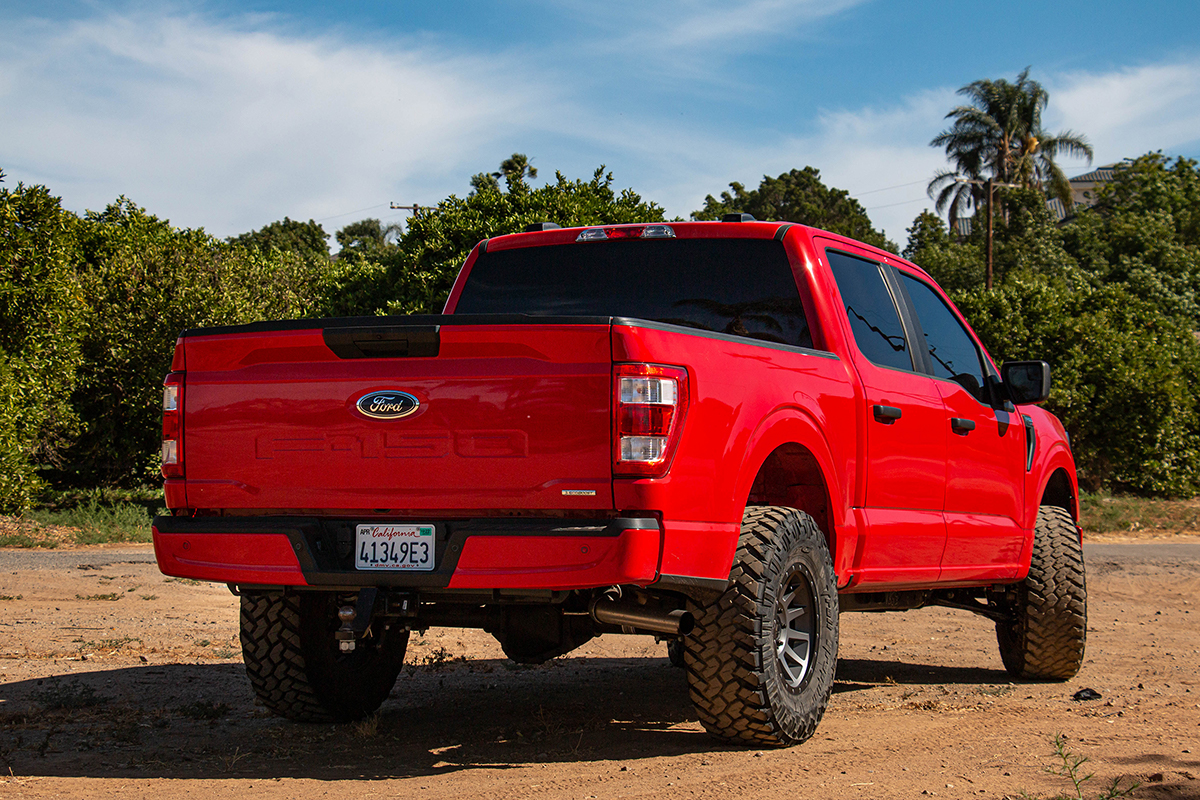

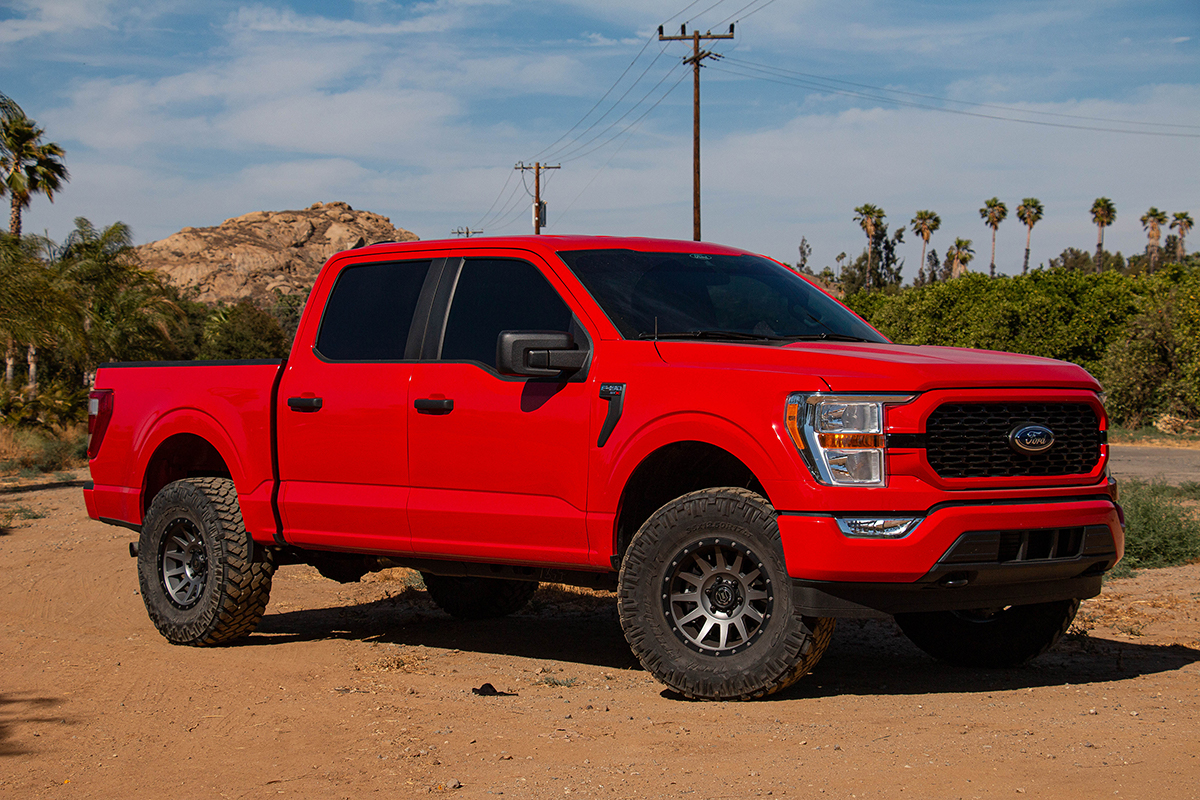

ICON Vehicle Dynamics 2021-2023 Ford F-150 2WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5” coilover shocks featuring remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable from 0-3” allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F-150 2WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Note: OEM Wheels & Tires Fitment: Yes

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
AAP_UDA_22 1
AAP_UDA_4 55
Minimum Lift Front 0
Coils Quantity Front 2
Front Shock Body Diameter 2.5
Rear Shock Body Diameter 2.5
Maximum Lift 3
Maximum Lift Front 3
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Spring Color Black
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Active or Passive Suspension Passive
Grade Type Performance
Rear Reservoir Style Piggyback
Front Reservoir Style Remote
Spring Material Steel
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Bushings Included Yes
Mounting Hardware Included Yes
Shocks Included Yes
California Prop 65 Warning Yes
OEM Wheels & Tires Fitment Yes
Add-On Part 198001 - BILLET SPANNER WRENCH KIT, 198000 - 2 PIN COILOVER SPANNER WRENCH KIT, 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5), 252012 - -4 TO -10 HOSE SHIELD KIT
Front Spring Rate Type Linear
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset, ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset, ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Country of Origin US
Condition New
🚗 Compatible with
3 vehicles are compatible with this product · 2021–2023
