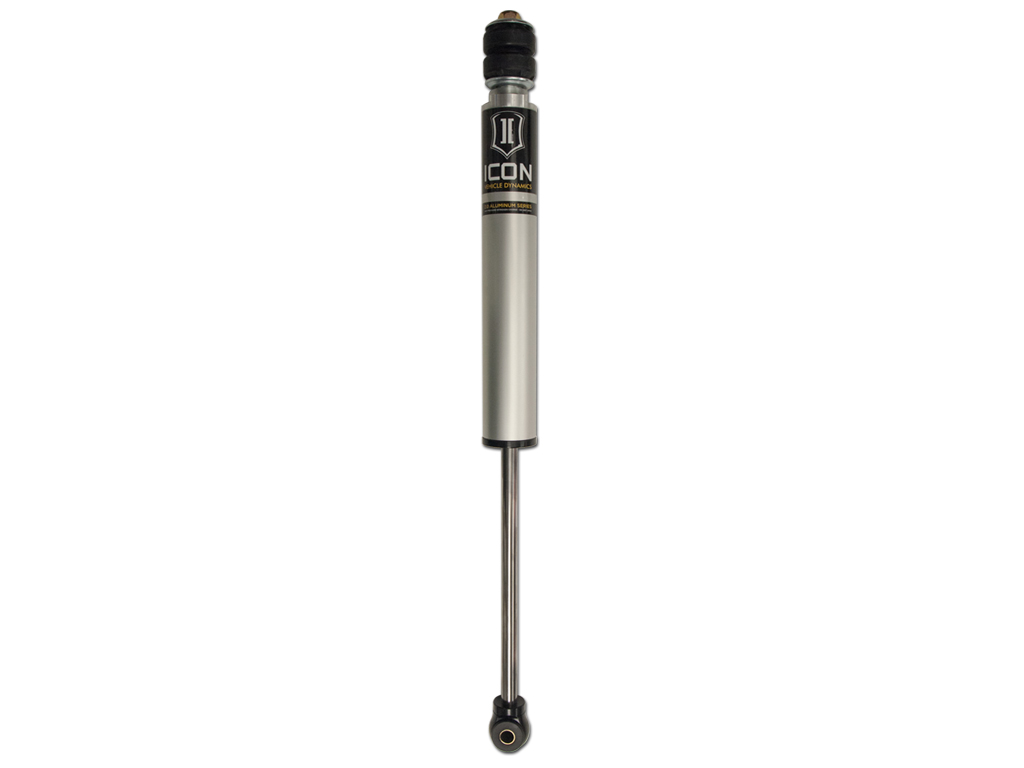

ICON Vehicle Dynamics Suspension Shock Absorber - 216523

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 216523
SKU: 216523
Price: 195.65 USD
Availability: OutOfStock

03-12 RAM HD 4.5" FRONT 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 216523

Old price: $205.43

Price: $195.65

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Fits 4WD models only

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Passive
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression	No
Adjustable Rebound	No
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Adjustable Ride Height	No
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Rod Diameter	.625
Shaft Diameter	0.625
Shock Absorber Bore Size	1.75
Cylinder Outside Diameter	2
Maximum Ride Height Raising Distance	4.5
Dust Shield Included	No
Internal Rebound Spring	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
External Reservoir	No
Remote Reservoir	No
Damping Type	Oil
Grade Type	Performance
Shock Absorber Body End Measuring Point	Shoulder of Stem
Internal Construction Type	Single Tube
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Finish	Anodized
Cylinder Finish	Anodized
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Lower Mount Type	Eyelet
Cylinder Color	Gray
Self-Leveling	No
Material	Steel, Aluminum
Color	Gray, Silver, Black
Cylinder Material	Aluminum
Shaft Material	Chrome
Valving Type	Linear, Digressive
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL
Country of Origin	US
Condition	New
Quantity per Application	2
