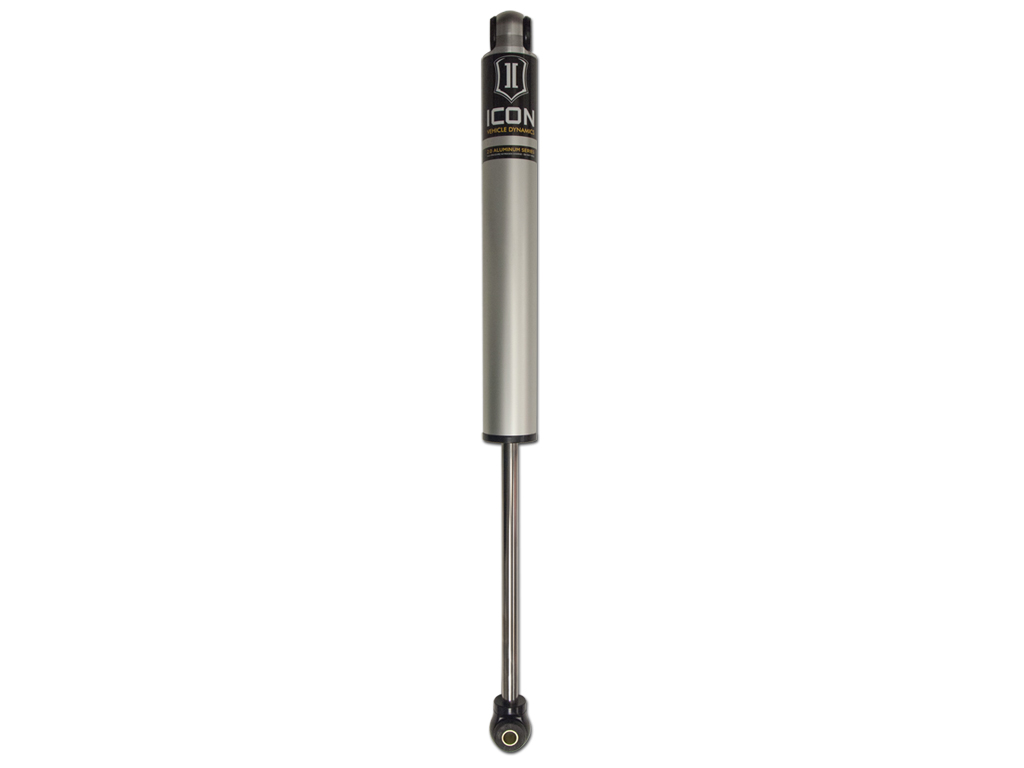

Picture of ICON Vehicle Dynamics Suspension Shock Absorber - 216524

ICON Vehicle Dynamics Suspension Shock Absorber - 216524

⚠

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
09-18 RAM 1500 1-3" REAR 2.0 VS IR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 216524
Old price: $210.84
$200.80
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Compatible with 1-3" of rear lift

Products specifications

Attribute name Attribute value
AAP_UDA_12 EA
Attributed Description ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Center of Eyelet; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Eyelet; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 16.600 IN; Fully Open Length: 27.05 IN; Shock Stroke: 10.45 IN; Travel Length: 10.45 IN
Body Color Gray
Body Diameter 2
Body Material Aluminum
Boot Included No
AAP_UDA_22 1
AAP_UDA_4 55
Active or Passive Suspension Passive
Add-On Part 614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable Compression No
Adjustable Rebound No
Adjustable Ride Height No
Adjustable Damping No
Bore Diameter 1.75
Bushing Color Black
Bushing Included yes
Bushing Material Polyurethane
Rod Diameter .625
Cylinder Finish Anodized
Shock Absorber Rod End Measuring Point CENTER OF EYELET
Shock Absorber Body End Measuring Point CENTER OF EYELET
Valving Type Digressive, Linear
Lower Mount Type Eyelet
Upper Mount Type Eyelet
Cylinder Color Gray
Self-Leveling No
Mounting Hardware Included No
Dust Shield Included No
Internal Rebound Spring No
Coil Spring Insulator(s) Included No
Includes Bump Stop No
Hydraulic Lockout No
Coil-Over Springs Included No
Dust Boot Included No
Dust Shield NO
External Reservoir No
Remote Reservoir No
Damping Type Oil
Grade Type Performance
Configuration Performance
Internal Construction Type Single Tube
Suspension Type Spring
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged Yes
Internal Rebound Bumper Yes
California Prop 65 Warning Yes
Shaft Diameter 0.625
Quantity 1
Shock Absorber Bore Size 1.75
Cylinder Outside Diameter 2
Maximum Ride Height Raising Distance 3
Finish Anodized
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Color Gray, Black, Silver
Material Steel, Aluminum
Shaft Material Chrome
Cylinder Material Aluminum
Country of Origin US
Condition New
Quantity per Application 2
🚗 Compatible with
14 vehicles are compatible with this product · 2009–2022
