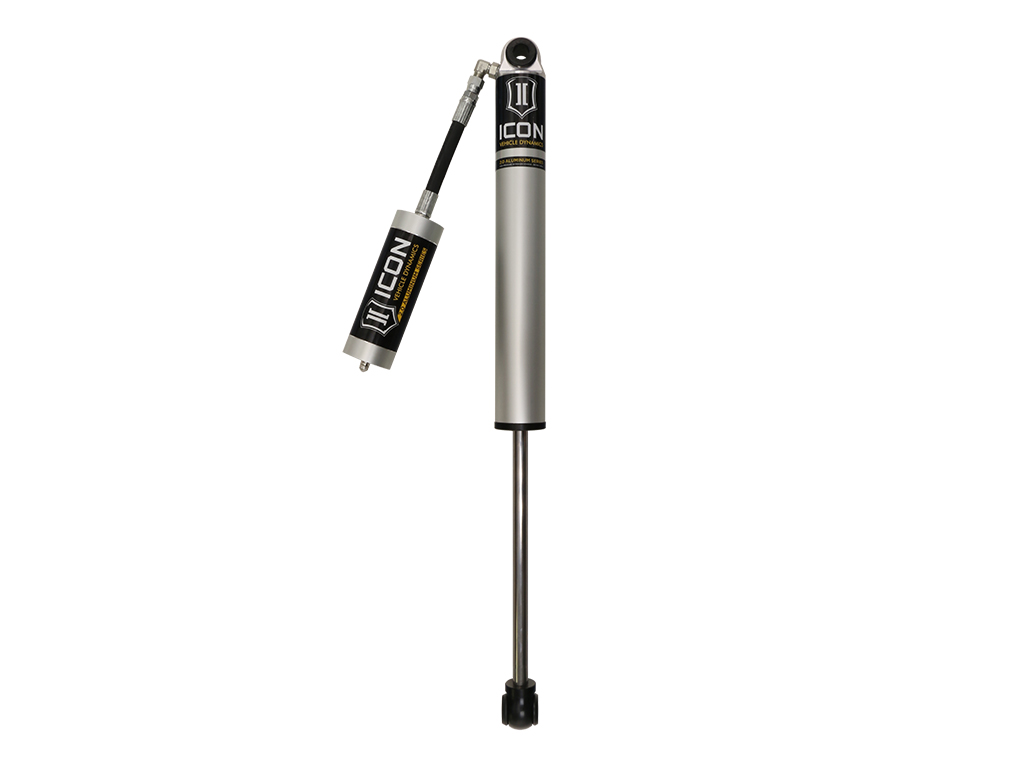

ICON Vehicle Dynamics Suspension Shock Absorber - 26520R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 26520R
SKU: 26520R
Price: 308.95 USD
Availability: OutOfStock

07-18 JK 2-3" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 26520R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Products specifications

Attribute name	Attribute value
Body Diameter	2
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH), 614600 - 2.0 ICON BILLET RESI CLAMP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Material	Aluminum
Boot Included	No
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Bushing Included	yes
Bushing Material	Polyurethane
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Rod Diameter	.625
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Maximum Ride Height Raising Distance	3
Finish	Anodized
Cylinder Finish	Anodized
Upper Mount Type	Bar Pin
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Cylinder Color	Gray
Self-Leveling	No
Dust Shield Included	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Internal Construction Type	Single Tube
Suspension Type	Spring
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Shaft Diameter	0.625
Quantity	1
Shock Absorber Bore Size	1.75
Cylinder Outside Diameter	2
Fully Open Length	25.55
Mounting Hardware Included	Yes
Gas Charged	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
External Reservoir	Yes
Material	Steel, Aluminum
Color	Silver, Black, Gray
Cylinder Material	Aluminum
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
