ICON Vehicle Dynamics Suspension Shock Absorber - 36507R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 36507R
SKU: 36507R
Price: 308.95 USD
Availability: OutOfStock

99-04 FSD 4WD 3-6" FRONT 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 36507R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

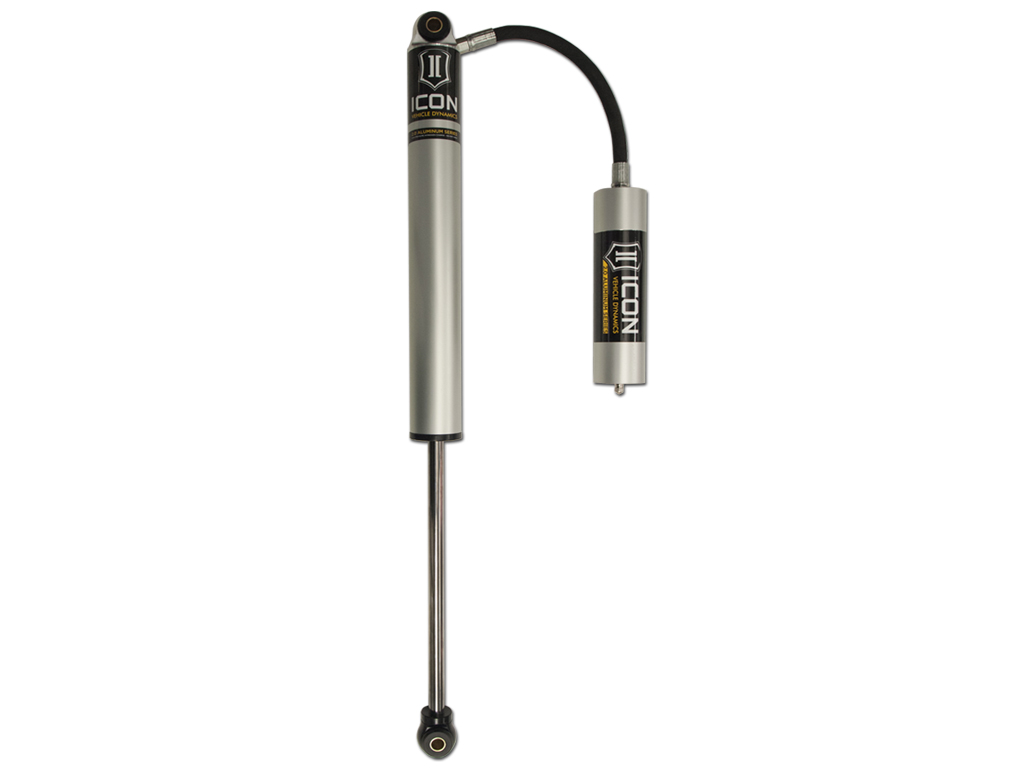

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Compatible with 3-6” of front lift over stock

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Body Material	Aluminum
Boot Included	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	No
Color	Gray, Black, Silver
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Outside Diameter	2
Damping Type	Oil
Dust Shield	NO
Dust Shield Included	No
External Reservoir	Yes
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Type	Eyelet
Maximum Ride Height Raising Distance	6
Minimum Ride Height Raising Distance	3
Mounting Hardware Included	Yes
Remote Reservoir	Yes
Reservoir Type	Remote
Rod Diameter	.625
Self-Leveling	No
Body Diameter	2
Body Color	Gray
Adjustable Ride Height	No
Adjustable Rebound	No
Adjustable Damping	No
Adjustable Compression	No
Adjustable	No
Shaft Diameter	0.625
Shock Absorber Body End Measuring Point	Center of Eylet
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	Center of Eylet
Suspension Type	Spring
Upper Mount Type	Eyelet
Valving Type	Digressive, Linear
Add-On Part	39010 - 99-04 FSD DUAL SHOCK MOUNT KIT, 614600 - 2.0 ICON BILLET RESI CLAMP KIT, 252012 - -4 TO -10 HOSE SHIELD KIT, 614700 - 2.0 SHOCK BOOT KIT (EACH)
Material	Aluminum, Steel
Cylinder Material	Aluminum
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
