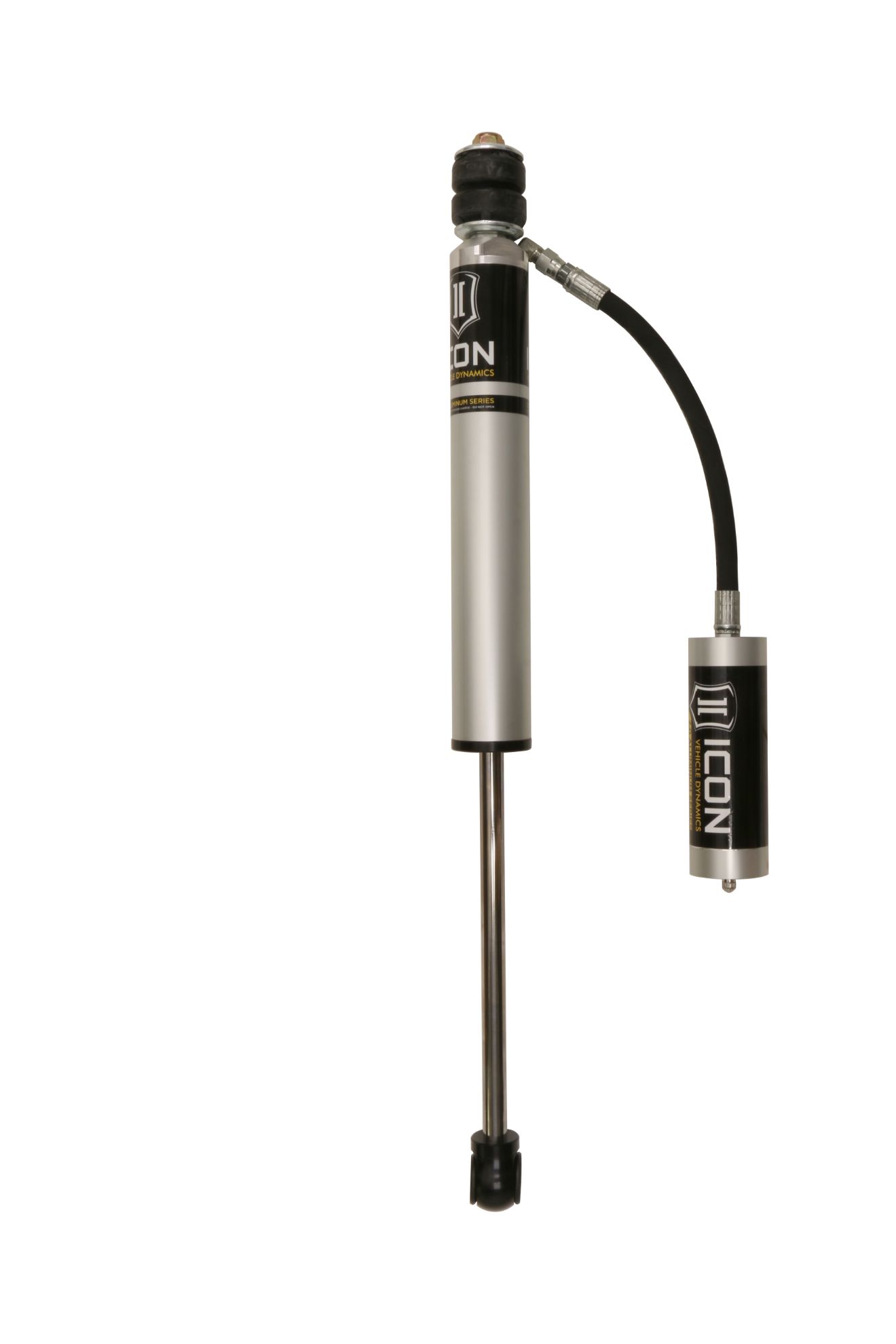

ICON Vehicle Dynamics Suspension Shock Absorber - 56503R

05-23 TACOMA 4WD 0-1.5" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56503R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Will not fit 2005-2015 5-Lug 2WD Toyota Tacoma

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	Yes
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Bushing Material	Polyurethane, Rubber
Adjustable	No
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Rod Diameter	.625
Shaft Diameter	0.625
Cylinder Finish	Anodized
Shock Absorber Rod End Measuring Point	Center of Eylet
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Cylinder Color	Gray
Self-Leveling	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Dust Shield Material	Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Internal Construction Type	Single Tube
Suspension Type	Spring
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
Dust Shield Included	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Dust Boot Included	Yes
External Reservoir	Yes
Quantity	1
Shock Absorber Bore Size	1.75
Maximum Ride Height Raising Distance	2
Cylinder Outside Diameter	2
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Finish	Anodized
Shaft Material	Chrome
Material	Steel, Aluminum
Cylinder Material	Aluminum
Color	Gray, Black
Country of Origin	US
Condition	New
Quantity per Application	2
