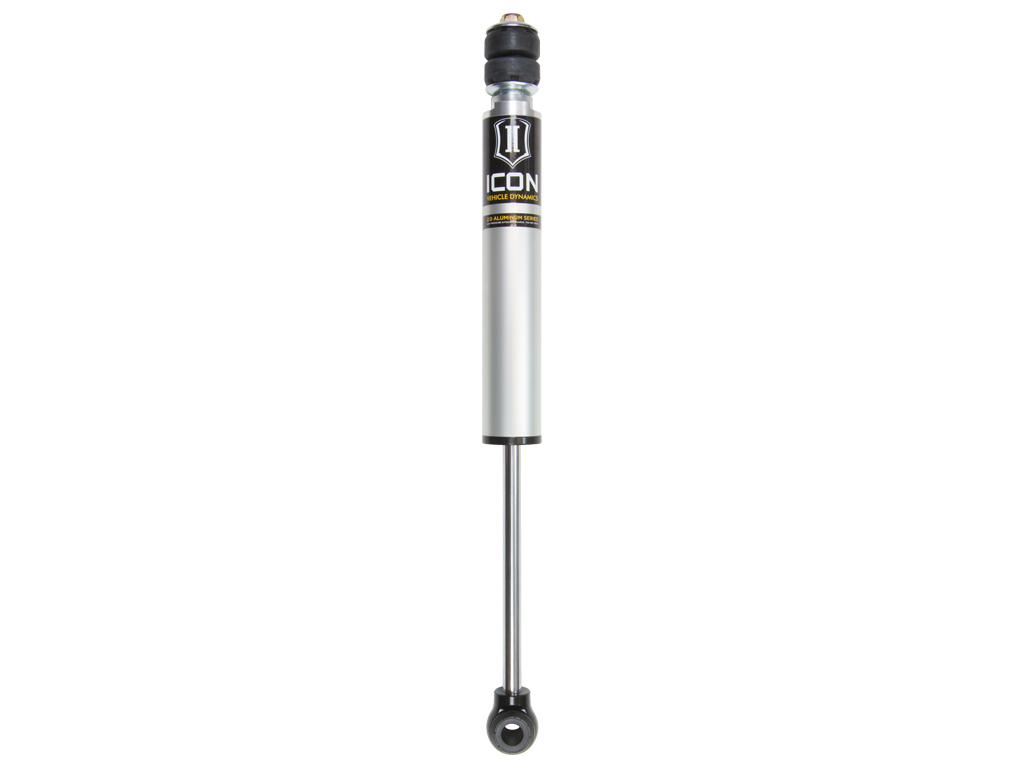

ICON Vehicle Dynamics Suspension Shock Absorber - 56514

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 56514
SKU: 56514
Price: 195.65 USD
Availability: OutOfStock

96-02 4RUNNER 0-2" REAR 2.0 VS NR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56514

Old price: $205.43

Price: $195.65

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle

Products specifications

Attribute name	Attribute value
Active or Passive Suspension	Passive
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH), 53015 - 96-02 4RUNNER 1" REAR COIL SPRING KIT
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Rod Diameter	.625
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Body Material	Aluminum
Finish	Anodized
Cylinder Finish	Anodized
Bushing Color	Black
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Valving Type	Digressive, Linear
Reservoir Type	Emulsion
Lower Mount Type	Eyelet
Body Color	Gray
Cylinder Color	Gray
Attributed Description	ICON Vehicle Dynamics; Shock Absorber; Adjustable: No; Boot Included: No; Coil Over Springs Included: No; Dust Shield: No; Gas Charged: Yes; Lower Mount Type: Eyelet; Shock Absorber Body End Measuring Point: Shoulder of Stem; Shock Absorber Rod End Measuring Point: Center of Eyelet; Upper Mount Type: Stem; Remote Reservoir: No; Body Diameter: 2 IN; Compressed Length: 13.100 IN; Fully Open Length: 21.55 IN; Shock Stroke: 8.45 IN; Travel Length: 8.45 IN
Adjustable Compression	No
Adjustable Ride Height	No
Self-Leveling	No
Boot Included	No
Adjustable Rebound	No
Dust Shield Included	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Adjustable Damping	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
External Reservoir	No
Remote Reservoir	No
Damping Type	Oil
Shaft Diameter	0.625
Quantity	1
Shock Absorber Bore Size	1.75
Bore Diameter	1.75
Maximum Ride Height Raising Distance	2
Cylinder Outside Diameter	2
Body Diameter	2
Grade Type	Performance
Configuration	Performance
Bushing Material	Polyurethane, Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Internal Construction Type	Single Tube
Suspension Type	Spring
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Mounting Hardware Included	Yes
Gas Charged	Yes
Internal Rebound Bumper	Yes
Bushing Included	yes
California Prop 65 Warning	Yes
Material	Aluminum, Steel
Shaft Material	Chrome
Color	Gray, Black, Silver
Cylinder Material	Aluminum
Country of Origin	US
Condition	New
Quantity per Application	2
