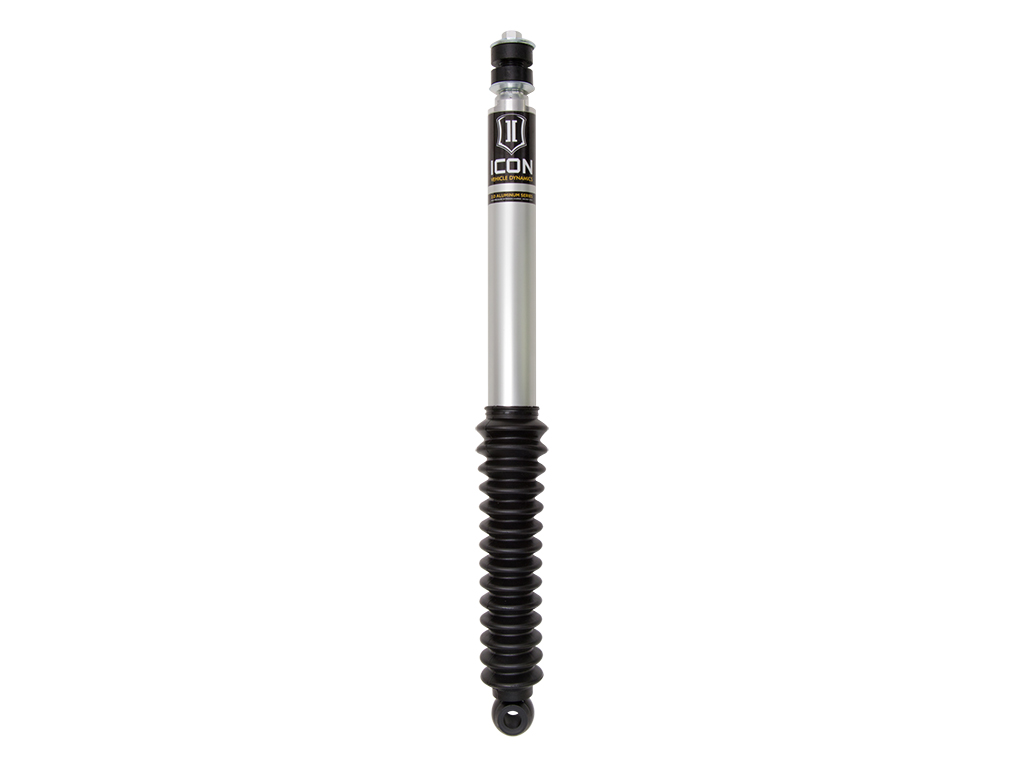

ICON Vehicle Dynamics Suspension Shock Absorber - 56516

22-25 TUNDRA 0-1.5"/23-25 SEQUOIA 0-4" REAR 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56516

Old price: $205.43

Price: $195.65

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #153: Not compatible with Adaptive Variable Suspension (AVS) equipped vehicles

Products specifications

Attribute name	Attribute value
AAP_UDA_4	55
Body Diameter	2
Body Material	Aluminum
Boot Included	Yes
Active or Passive Suspension	Passive
Adjustable Compression	No
AAP_UDA_12	EA
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
AAP_UDA_22	1
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Adjustable	No
Adjustable Damping	No
Bushing Material	Polyurethane, Rubber
Cylinder Outside Diameter	2
Includes Bump Stop	No
Hydraulic Lockout	No
Dust Shield	NO
External Reservoir	No
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Dust Shield Material	Rubber
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Dust Shield Included	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
Dust Boot Included	Yes
Maximum Ride Height Raising Distance	3
Finish	Anodized
Cylinder Finish	Anodized
Lower Mount Type	Eyelet
Cylinder Color	Gray
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Color	Gray, Black, Silver
Material	Steel, Aluminum
Minimum Ride Height Raising Distance	0
Quantity	1
Mounting Hardware Included	No
Remote Reservoir	No
Shaft Diameter	0.625
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Valving Type	Digressive, Linear
Reservoir Type	Internal
Self-Leveling	No
Shock Absorber Body End Measuring Point	Shoulder of Stem
Suspension Type	Spring, Air
Upper Mount Type	Stem
Shock Absorber Bore Size	1.75
Service Parts	202002 - 2.0 IFP REBUILD KIT
Rod Diameter	.625
Cylinder Material	Aluminum
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
