ICON Vehicle Dynamics Suspension Shock Absorber - 56517R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 56517R
SKU: 56517R
Price: 308.95 USD
Availability: OutOfStock

22-24 TUNDRA 3.5" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56517R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

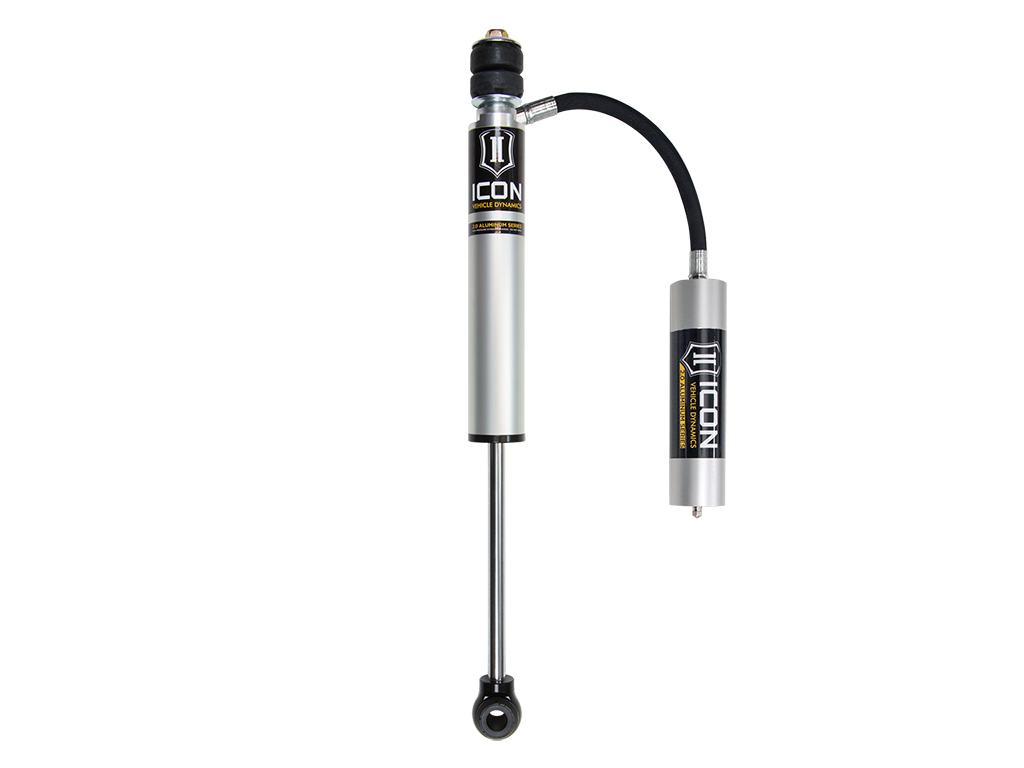

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Rod Diameter	.625
Minimum Ride Height Raising Distance	3
Maximum Ride Height Raising Distance	3.5
Suspension Type	Air, Spring
Body Material	Aluminum
Material	Aluminum, Steel
Finish	Anodized
Cylinder Finish	Anodized
Bushing Color	Black
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Valving Type	Digressive, Linear
Lower Mount Type	Eyelet
Body Color	Gray
Adjustable Compression	No
Adjustable Ride Height	No
Self-Leveling	No
Mounting Hardware Included	No
Shaft Diameter	0.625
Quantity	1
Shock Absorber Bore Size	1.75
Bore Diameter	1.75
Cylinder Outside Diameter	2
Body Diameter	2
Service Parts	202003 - 2.0 REMOTE RESI REBUILD KIT
Boot Included	No
Adjustable Rebound	No
Internal Rebound Spring	No
Includes Bump Stop	No
Hydraulic Lockout	No
Adjustable	No
Adjustable Damping	No
Dust Shield	NO
Damping Type	Oil
Active or Passive Suspension	Passive
Grade Type	Performance
Bushing Material	Polyurethane, Rubber
Reservoir Type	Remote
Dust Shield Material	Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Cylinder Color	Silver
Internal Construction Type	Single Tube
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Dust Shield Included	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
Bushing Included	yes
California Prop 65 Warning	Yes
Dust Boot Included	Yes
External Reservoir	Yes
Shaft Material	Chrome
Color	Silver, Gray, Black
Cylinder Material	Aluminum
Country of Origin	US
Condition	New
Quantity per Application	2
